Summary of Contents for MayPole MP9540

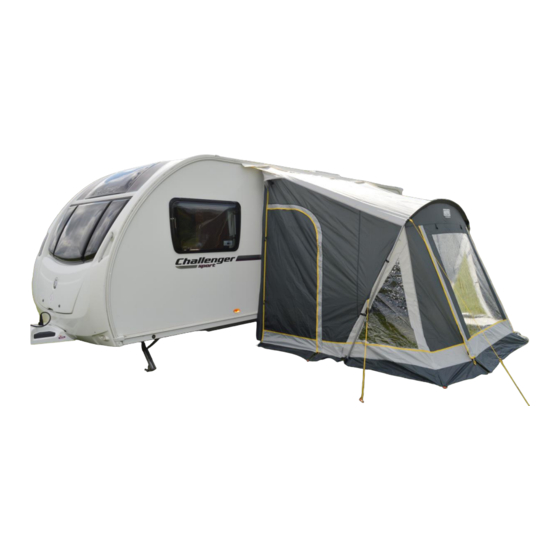

- Page 1 POLED PORCH AWNING MP9540 USER GUIDE Please read this user guide before attempting to set up your Porch Awning. Follow the user guide carefully and keep for future reference. A copy of the user guide is also available on our website www.maypoleltd.com...
- Page 2 POLED PORCH AWNING MP9540 USER GUIDE WARNING – GENERAL SAFETY • Not to be used in strong winds and extreme weather conditions. • If using stepladders or a platform to set up the Porch Awning you will be working at height & should carefully follow the stepladder / platform manufacturer’s safety instructions.
- Page 3 POLED PORCH AWNING MP9540 USER GUIDE BEFORE USE Choose a clear site that is flat. Remove any sharp objects from the pitching area which could be dangerous or potentially damage the fabric. NOTE – this Porch Awning is suitable for vehicles with an awning channel height range of 235cm –...
- Page 4 POLED PORCH AWNING MP9540 USER GUIDE Insert the fibreglass roof pole into the front sleeve. Assemble both corner steel poles to the adjustable legs. Insert each end of the fibreglass roof pole into the corner steel poles. Attach the canopy to the steel poles using the plastic clips. Extend the adjustable legs on the steel corner poles to maximum height.
- Page 5 POLED PORCH AWNING MP9540 USER GUIDE Buckle together the sizing strap between each leg to achieve the correct spacing. Peg down each leg at the base and all pegging points found on each side. Once in position; peg down the 2 guy ropes found at the front of the awning and fully tension.
- Page 6 POLED PORCH AWNING MP9540 USER GUIDE To attach the draught skirt; insert the beading into the bottom awning channel on the vehicle and slide to the desired position. Technical Manager Maypole Ltd Oct 2021 Email: sales@maypoleltd.co.uk Web: www.maypoleltd.com P a g e...
