Solid Setup Pty Ltd
www.solidsetup.com
BLMITSK User Guide
Introduction
Overview

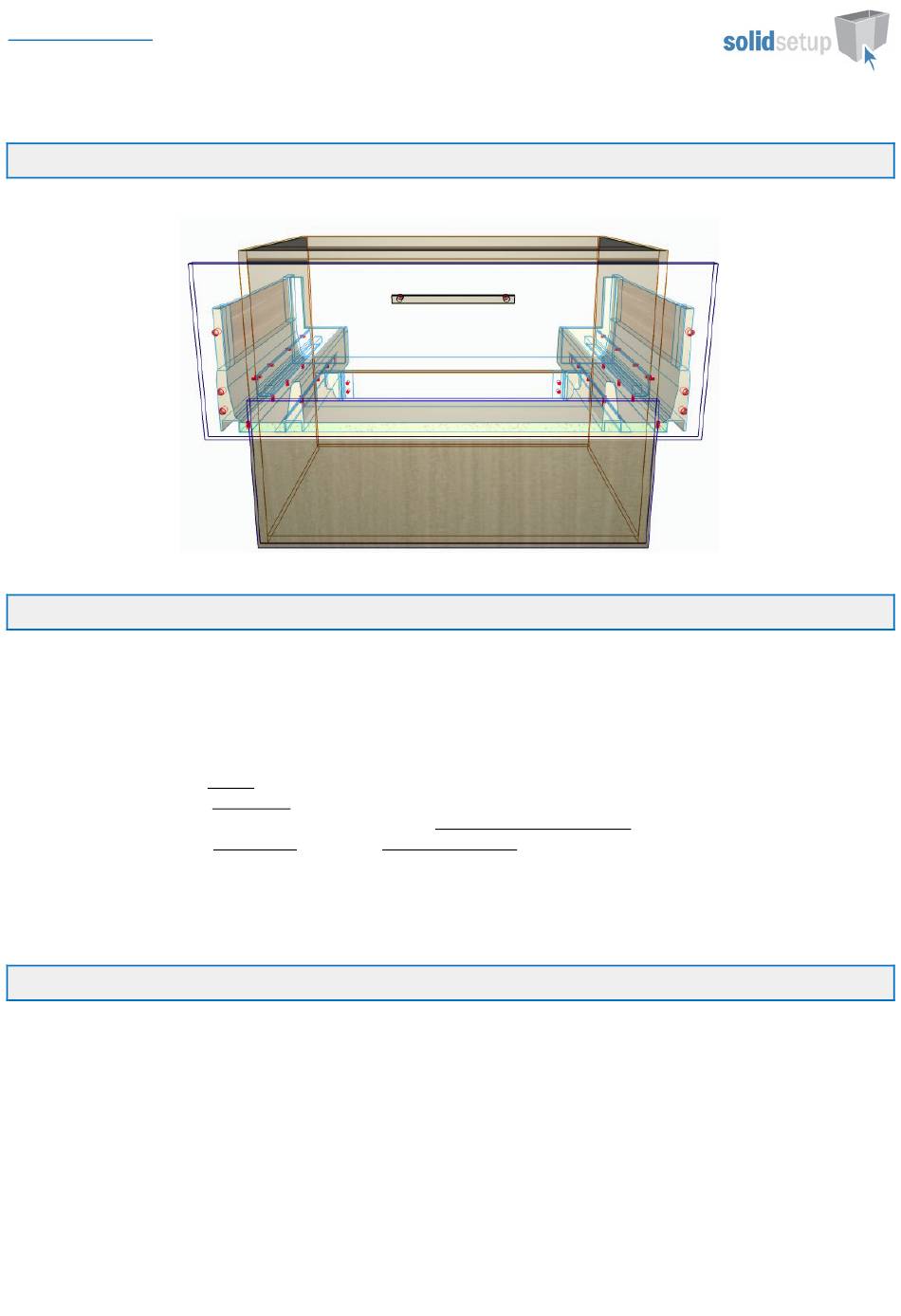

1. The 'Blum Intivo Sink Drawer Package' from Solid Setup adds the Blum Intivo Sink drawers to Cabinet Vision
Solid.( Requires the Blum Intivo Drawers package from Solid setup )
2. U-Shaped drawer or Split Sink drawer can be selected.
3. Side widths are controlled via attribute on the Left drawer back part.
4. It provides drilling for the drawer box parts, and the drawer front for CNC output.
5. It also adds 3d graphics for the drawer profiles, boxcovers and brackets etc.
6. The profiles and brackets etc are added as a separate parts and materials for reporting purposes.
7. All material descriptions contain the Blum order number after the # symbol.
8. Silk White, Terra Black, and Stainless Steel colours.
9. The graphics can be turned off per cabinet if having them on causes too much lag on slower computers.
10. Turning off the graphics does not alter the reports or CNC output.
Included in This Package
User Created Standards
The Following UCS's are provided (ensure they are in this order once installed):
{ DRAWS } – Sink Attributes
•
{ DRAWS } -- Blum Itvo Sink BBK
•
{ DRAWS } -- Blum Itvo Sink DG
•
{ DRAWS } -- Blum Itvo Sink BOXCOVERs
•
Blum Intivo Sink Drawer User Guide.
Adds the Sink attributes to the drawer
Operates on drawer back and bottom to achieve sink drawer.
Adds the sink drawer profiles and brackets
Adds the sink Boxcovers and Boxcaps
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Solid Setup Blum Intivo Sink Drawer
Summary of Contents for Solid Setup Blum Intivo Sink Drawer
- Page 1 Introduction Overview 1. The ‘Blum Intivo Sink Drawer Package’ from Solid Setup adds the Blum Intivo Sink drawers to Cabinet Vision Solid.( Requires the Blum Intivo Drawers package from Solid setup ) 2. U-Shaped drawer or Split Sink drawer can be selected.
- Page 2 Solid Setup Pty Ltd www.solidsetup.com BLMITSK User Guide Intivo Sink Drawer Setup Requires Intivo drawers. To use the Intivo sink drawers you must have our Intivo drawer package (BLMITVO) installed in your Cabinet Vision software, and selected for your cabinet. Please refer to our User Guide for the Intivo drawers for their general usage.
- Page 3 12. There are only two places this is required so you can now close the UCS, and save your changes. Intivo Sink Drawer Usage Select Sink drawers. The Blum Intivo Sink Drawer can be added to any Height Intivo drawer. Click on the drawer back in an orthographic (smiley face) view of the cabinet editor. •...
- Page 4 Solid Setup Pty Ltd www.solidsetup.com BLMITSK User Guide Sink Drawer Width This value displays the space available for the sink (Changes when Y1 or Y2 change) Sink Drawer Depth This value is locked to 140mm for Intivo and cannot be changed Sink Drawer Heights The U- Shaped sink drawer uses the M-Height profile only, and cannot be used for an N (68) profile.
- Page 5 Solid Setup Pty Ltd www.solidsetup.com BLMITSK User Guide Sink Route Tool Setup UCS Public Variable There is 1 Public Variable in the “{ DRAWS } -- Blum Itvo Sink BBK ” UCS for the U-Shaped route tool ID. To change this variable go to the Utilities – Edit User Created Standards from the Room Plan or Elevation •...
- Page 6 Package Exclusions Some of the items shown in various images contained in this document are not included in the Blum Intivo Sink Drawer Package, but come from other packages which are sold separately. See our website for more detailed information on these packages.
