Athena Power BP-SATA2221B User Manual

BP-SATA2221B
Description and Specs:
BP-SATA2221B is for the use of two 2.5" SATA hard disk or SSD hard disk or
SSD mounted on one mini 3.5" form factor drive cage.
Features:

Interface: SATA x 2.

LED indication for HDD and Accessing.

The dimension match exactly as a standard 3.5" bay.

Energy saving on using 2.5"HDD or SSD.

For the use on desktop, server case, rack mount chassis that is with
3.5" form factor space... etc.

Complies with SATA-I, SATA-II interface, and maximum transfer rate
up to 1.5Gbps for SATA-I & 3.0Gbps for SATA-II.

HDD Auto Eject when you open the cover.

Aluminum material, best heat sink.

Dimension: 101.7mm x 25.8mm x 146mm

Weight: 0.23kg

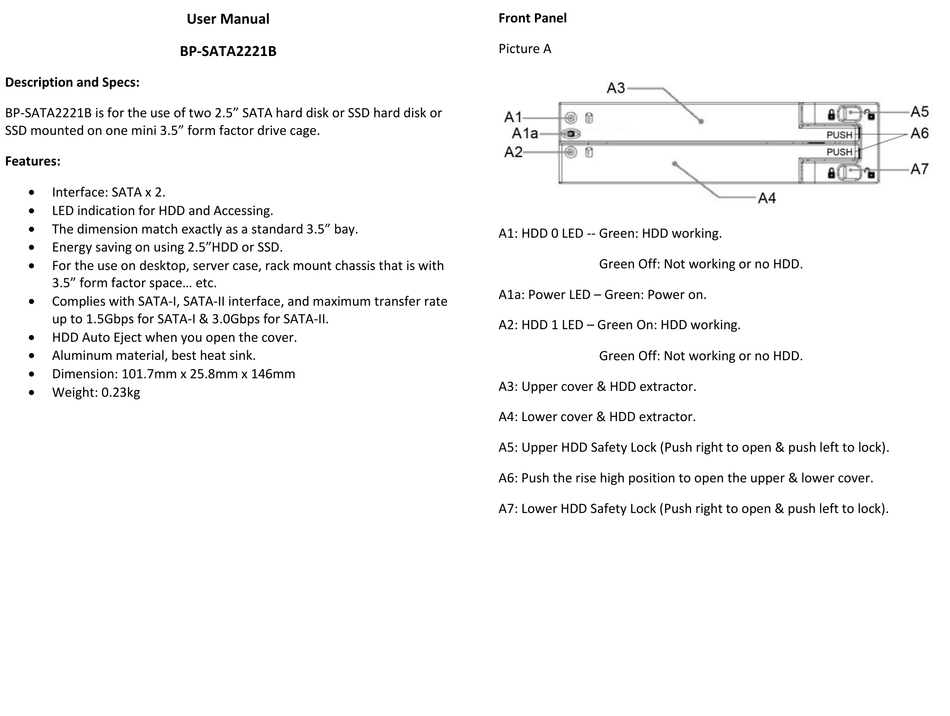

User Manual
Front Panel
Picture A
A1: HDD 0 LED -- Green: HDD working.
Green Off: Not working or no HDD.
A1a: Power LED – Green: Power on.
A2: HDD 1 LED – Green On: HDD working.
Green Off: Not working or no HDD.
A3: Upper cover & HDD extractor.
A4: Lower cover & HDD extractor.
A5: Upper HDD Safety Lock (Push right to open & push left to lock).
A6: Push the rise high position to open the upper & lower cover.
A7: Lower HDD Safety Lock (Push right to open & push left to lock).
