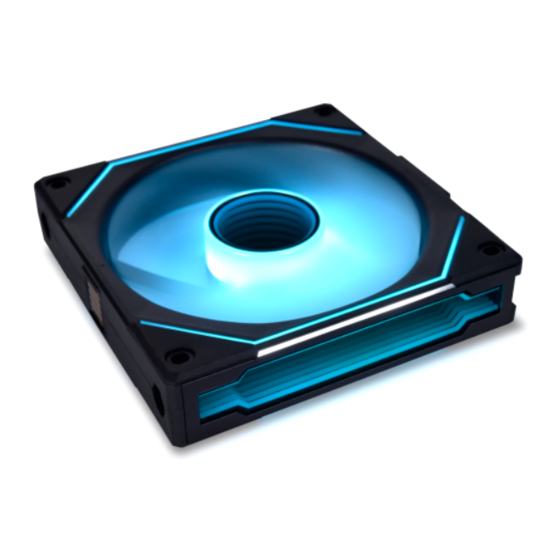

UNI FAN SL-INF
RGB
Package Contents /
包裝內容物
x 3 pcs
x 4 pcs
x 12 pcs
Power Module Installation /
1
2
Installation Guide /
x 1 pc
電源⽚安裝
!
Note! The socket for the power module
are in different size, please be aware of
the direction.
注意!電源⽚分為⼤⼩兩種卡榫
注意⽅向性。
Fixed
Release
-
Fan to Fan Connection /
安裝指南
1
2
x 1 pc
x 1 pc
Steps to Switch Orientation of the Cable on the Power Module /
x 1 pc
電源⽚電線轉換⽅向⽰意
Remove
，
安裝時須
⾵扇連接⾵扇
Release
1
2
4
5
!
Note! The top cover is removable if it is
affected by the radiator inlet and outlet,
and route the cable vertically.
注 意!若 遇 到 ⽔ 冷 排 出 ⽔ 位 置 影 響 電 源 ⽚ 上
蓋
，
可 將 上 蓋 移 除
Fixed
Release
3
Fixed
6
，
以 垂 直 ⽅ 式 ⾛ 線
。
