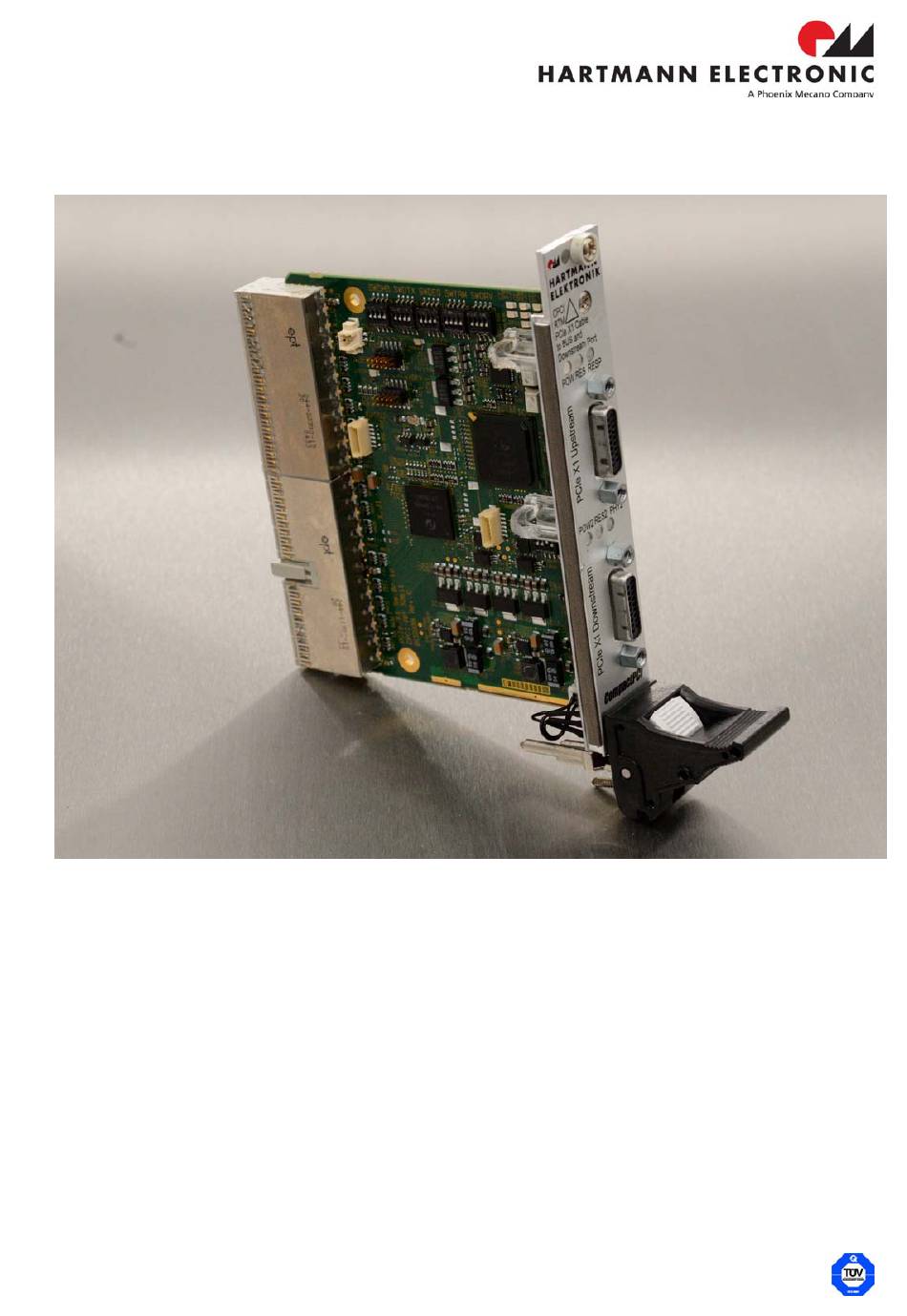

Hartmann Electronic GmbH Backplanes Motorstraße 43 Aufbausysteme (MPS) Tel.: +49 711 1 39 89-0 Layoutservice Fax: +49 711 8 66 11 91 info@hartmann-electronic.com www.hartmann-electronic.com 1. Overview This manual describes the CPCI Rear board - PCIeX1 to 8CPCI-Slot. This board enables the operation of a CPCI System through a normal desktop PC.
Hartmann Electronic GmbH Backplanes Motorstraße 43 Aufbausysteme (MPS) Tel.: +49 711 1 39 89-0 Layoutservice Fax: +49 711 8 66 11 91 info@hartmann-electronic.com www.hartmann-electronic.com 2. Switch Settings Please configure Dip Switches before use. The default setup of the Dip Switches is as follows: The Dip Switch name is labeled at PCB.
Page 8
Hartmann Electronic GmbH Backplanes Motorstraße 43 Aufbausysteme (MPS) Tel.: +49 711 1 39 89-0 Layoutservice Fax: +49 711 8 66 11 91 info@hartmann-electronic.com www.hartmann-electronic.com SWSMB (Advanced Use) The DIP Switch can be used to select the SMBUS-Address of the Switch. Turn DIP-SWITCH (only positions “2”, “3”,”...
Page 9
Hartmann Electronic GmbH Backplanes Motorstraße 43 Aufbausysteme (MPS) Tel.: +49 711 1 39 89-0 Layoutservice Fax: +49 711 8 66 11 91 info@hartmann-electronic.com www.hartmann-electronic.com SWDEQ (Signal integrity optimization) The equalization function of transmitting channels can optimize the driver current for different cable lengths and materials.
Page 10
Hartmann Electronic GmbH Backplanes Motorstraße 43 Aufbausysteme (MPS) Tel.: +49 711 1 39 89-0 Layoutservice Fax: +49 711 8 66 11 91 info@hartmann-electronic.com www.hartmann-electronic.com SWDRV SWDTX (Signal integrity optimization) “LODRV”, “HIDRV”, “DTX[0:3]” In order to meet the different application needs, the driving current and equalization of each transmitting channels can be adjusted using Dip Switches .The driver current of each channel is set to 20mA in default mode.
Hartmann Electronic GmbH Backplanes Motorstraße 43 Aufbausysteme (MPS) Tel.: +49 711 1 39 89-0 Layoutservice Fax: +49 711 8 66 11 91 info@hartmann-electronic.com www.hartmann-electronic.com 3. Initial Set-Up 3.1 Installing the board into a CPCI system 1) Power down your host system and your external CPCI System.
