RYCO MOTO 2300 Manual

Turn signal/horn kit

Advertisement

Quick Links

`Before you
STOP! THIS KIT IS DESIGNED SPECIFICALLY FOR
begin
YAMAHA YXZ1000R, all years and models
NOTE: For models without a roof ask for the ROLL CAGE ADAPTER TAILLIGHT BRACKET
IF YOUR VEHICLE IS NOT ONE OF THESE MODELS, DO NOT PROCEED.
Contact Ryco Motorsports or your local dealer for the correct kit.
Where do I
Please read and follow the instructions.
If you are a guy and, like most of us, feel you can install this without taking the time to read
start?
the instructions, then you should ask your significant other to read them to you.
I put a lot of effort into creating the instructions, and I feel bad when no one reads them.
Answers to all your questions should be covered in the installation instructions.
We've included a lot of photos for those of you who are visual and don't enjoy words.
What tools do
10 mm or 5/16" socket/nut driver or flat blade screwdriver
I need?
9/32", ½", ¾" and 7/8" diameter drill bit
Pliers or flat blade screwdriver
Phillips screwdriver
10 mm wrench
center punch
drill motor

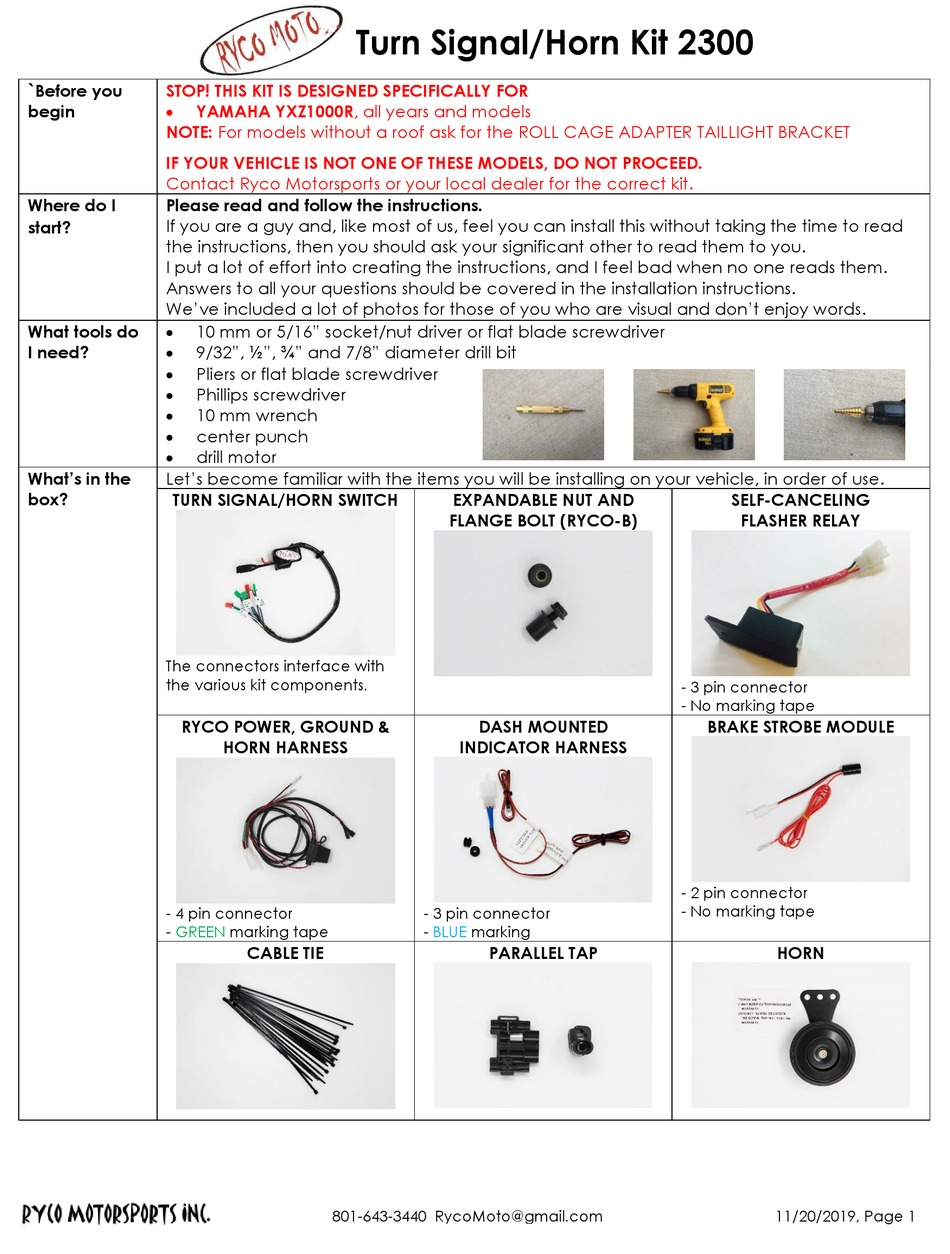

What's in the
Let's become familiar with the items you will be installing on your vehicle, in order of use.
box?
TURN SIGNAL/HORN SWITCH
The connectors interface with
the various kit components.
RYCO POWER, GROUND &
- 4 pin connector
-
GREEN
Turn Signal/Horn Kit 2300
HORN HARNESS
marking tape
CABLE TIE
801-643-3440 RycoMoto@gmail.com
EXPANDABLE NUT AND
FLANGE BOLT (RYCO-B)
DASH MOUNTED
INDICATOR HARNESS
- 3 pin connector
-
BLUE
marking
PARALLEL TAP
SELF-CANCELING
FLASHER RELAY
- 3 pin connector
- No marking tape
BRAKE STROBE MODULE
- 2 pin connector
- No marking tape
HORN
11/20/2019, Page 1
