Summary of Contents for SWEETFULL K4

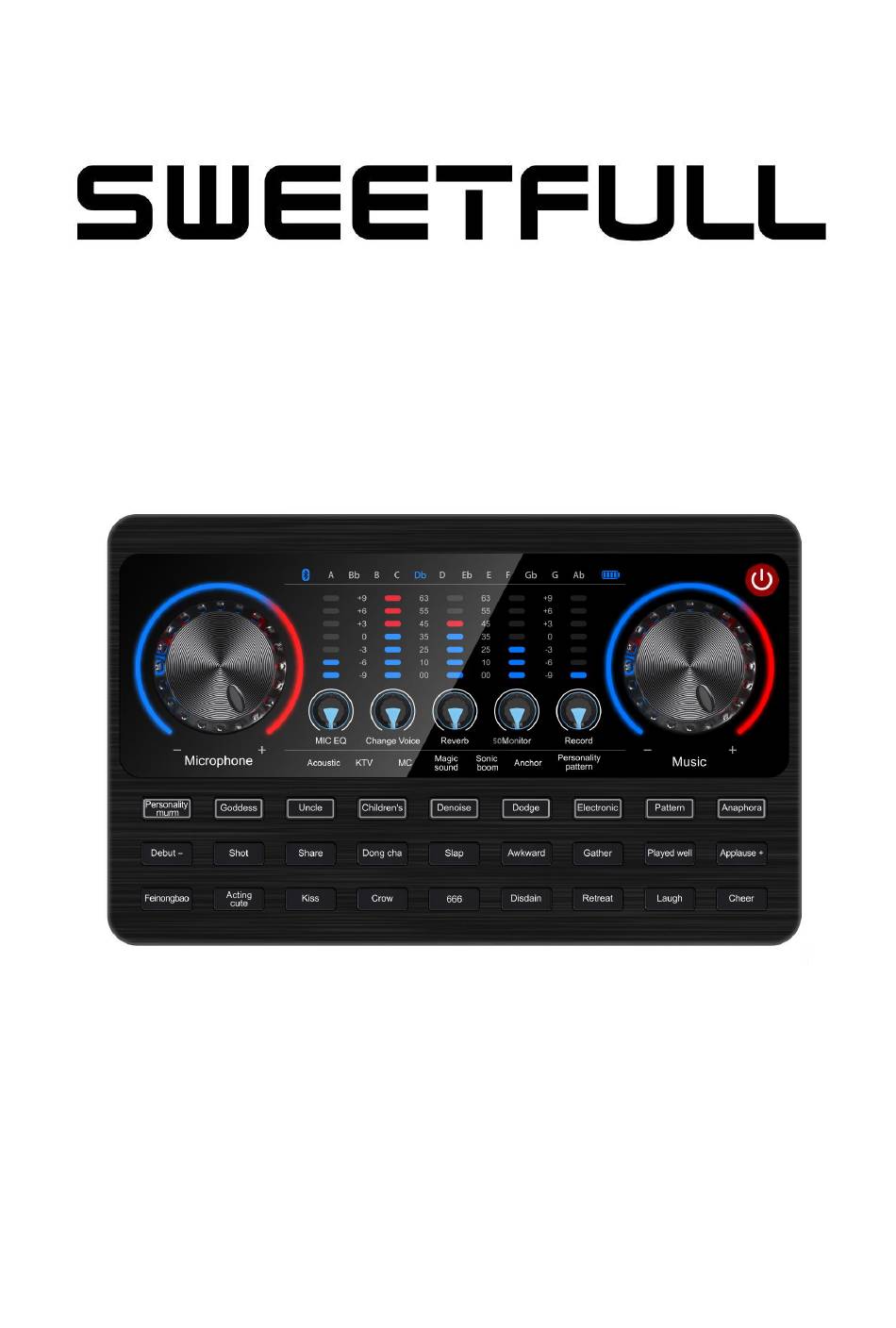

- Page 1 K4 Professional Audio Console User Manual A Professional Audio Console Live Stream, Record, and Karaoke...
- Page 2 K4 Professional Audio Console User Manual Dear customer, Thank you for using our product. In order to make it easier for you to operate the product, we are glad to provide the detailed user manual for you, from which you can obtain the information about the product, including using methods and other aspects.
-
Page 3: Table Of Contents
K4 Professional Audio Console User Manual CONTENT 1. Overview ............1 2. Appearance ............ 1 3. Wiring & Panel ..........2 3.1 Wiring Diagram ........2 3.2 Panel Introduction ........3 4. How to Use ............. 5 5. Specification ........... 8 6. -
Page 4: Overview
K4 Professional Audio Console User Manual 1. Overview The SWEETFULL K4 Professional Audio Console is a professional digital audio mixer designed for recording and live streaming. It has the built-in high-performance digital DSP reverberation processing function, which supports high-definition digital recording, noise reduction, dual mobile phone live streaming, wireless accompaniment, real-time headphone monitoring. -
Page 5: Wiring & Panel
K4 Professional Audio Console User Manual 3. Wiring & Panel 3.1 Wiring Diagram PC/Charging: DC+5V Input/OTG Port; Used for data transmission; Also used as a ① computer live stream interface and computer accompaniment interface; The product serves as an external sound console for the computer during live streaming, recording or singing on the computer. -
Page 6: Panel Introduction
K4 Professional Audio Console User Manual Headset: 3.5mm Jack; Can be connected to a earphone which has microphone. ⑥ ALSO used to monitor sound of audio console in real-time. Microphone: 3.5mm Jack; Connect a 3.5 mm condenser microphone that does not ⑦... - Page 7 K4 Professional Audio Console User Manual 8. Dodge button/status light: When turned on, the product will automatically lower the accompaniment sound when anybody is speaking, and automatically reinstate the accompaniment after stopping talking. It is recommended to turn on the "Dodge"...
-
Page 8: How To Use
K4 Professional Audio Console User Manual 4. How to Use Smartphone Live streaming + Headset Singing & Monitoring: PC Live stream + Microphone Singing + Earphone Monitoring... - Page 9 K4 Professional Audio Console User Manual Smartphone Live stream + Smartphone Accompanying + Headset Singing & Monitoring Special multi-line live stream equipment mode Two Smartphone live stream + smartphone accompanying + Microphone Singing + Speaker Monitoring...
- Page 10 K4 Professional Audio Console User Manual Separate earphone and microphone computer live broadcast mode, solve the interface of part of the computer separated connection mode...
-
Page 11: Specification
K4 Professional Audio Console User Manual 5. Specification Basic parameters Unit Size L 225mm * W 140mm * H 40mm Color Metal Red / Piano Black / Ivory White Product Weight 431g Working Temperature 0°C ~ 45°C/32°F ~ 113°F Battery Lithium Ion 1000mAh/3.7V (3.7Wh) -
Page 12: Faq
K4 Professional Audio Console User Manual 6. FAQ Q1: The device does not work, or there is no sound suddenly. A1: The battery is low, please connect to USB to charge before use; Q2: There is a lot of noise during the live streaming. - Page 13 K4 Professional Audio Console User Manual B) 3.5mm Male to Male 4 Pole/3 Rings Audio Cable * 2; C) USB A to Micro USB Data/Charging Cable * 1; NOTE • Please do not charge the audio console during live streaming.
- Page 14 K4 Professional Audio Console User Manual sound from the your PC. To avoid personal injury or property damage caused by noise, radiation, fire, machinery, high temperature and other factors, please use this product in a safe environment, and read the following tips carefully: 1.
