Summary of Contents for PREDIA Cart UV-C

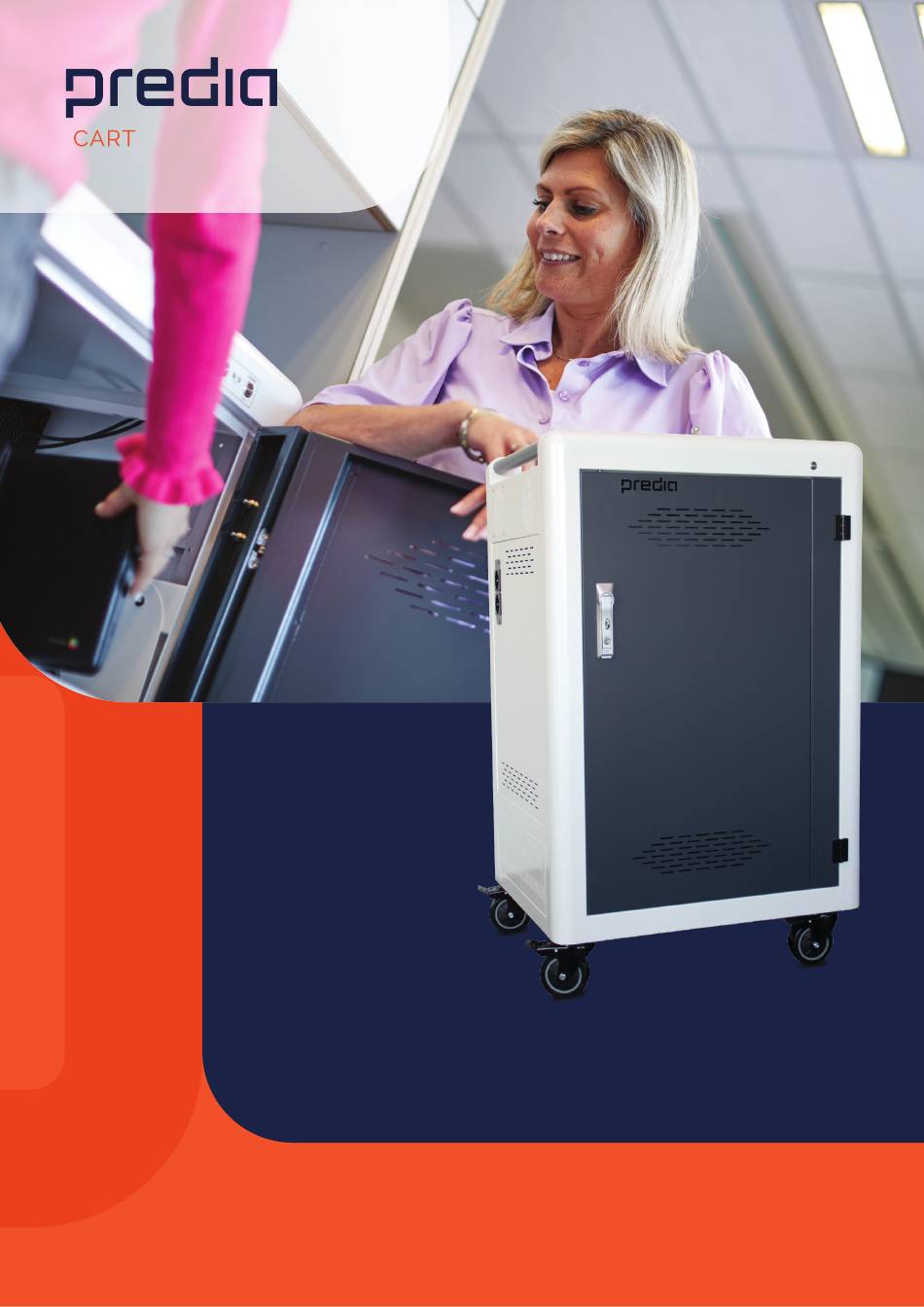

- Page 1 Predia Cart UV-C User Manual...
- Page 2 User Manual Table of contents Predia Cart UV-C Control Panel Description of the three switching modes Setting the UV switch and disinfection time Safety instructions UV-C All illustrations in this manual are for information purposes only and may differ from the product supplied by us.
- Page 3 The control panel is located on the back of the Predia Cart UV-C and can be accessed by removing the large grey back cover. After setting up the Predia Cart UV-C, you can switch on the charging cart by means of the on/off button on the front of the charging cart.
- Page 4 When you select this mode, you switch on all the power sockets. They will only turn off when you press the on/off button on the front of the Predia Cart UV-C. • Plug the power cable supplied into the power socket and connect the C13 plug (device plug) to the side of the cart.
- Page 5 If you select this mode, you switch on all power sockets and they turn off again automatically after the set time has elapsed. The time switch must be switched on every day by means of the on/off button on the front of the Predia Cart UV-C.
- Page 6 The time switch must be switched on every day by means of the on/off button on the front of the Predia Cart UV-C. • Plug the power cable supplied into the power socket and connect the C13 plug (device plug) to the side of the cart.
- Page 7 User Manual Description of the three switching modes Remarks: The default control mode is ‘Always on’ . You can adjust this by turning on the device and setting it to your preferred mode. See the section above. The equipment can be set to standby mode because the standard control function is connected to the power supply. The device is in standby mode when the Switch is pressed at the moment the device is switched on.
- Page 8 User Manual Setting the UV Switch and disinfection time Remark: Disinfection and charging can go hand in hand. Put away your devices and close the doors and follow the steps below. UV Operation: Briefly press the UV (on/or) button to switch on the disinfection programme. This will only start once the door is closed. The disinfection will take 30 minutes as standard, after which the UV-C lamps will automatically turn off again.
- Page 9 User Manual Philips TUV TL Mini Product specifications General information Approval and application Cap-Base G5 [G5] Mercury (Hg) Content (Nom) 4.4 mg Main Application Disinfection Useful Life (Nom) 6000 h System Description UV-C Radiation 0.9 W Light technical Product data Color Code Full product code 871150063872427...
- Page 10 User Manual Philips TUV TL Mini TUV 4W Dimensial drawing Product ID TUV 4W FAM/10X25BOX 16 mm 143 mm 140,6 mm 150,1 mm 135,9 mm Photometric data All illustrations in this manual are for information purposes only and may differ from the product supplied by us.
