Summary of Contents for SUN-FLY Vacuumsub A4

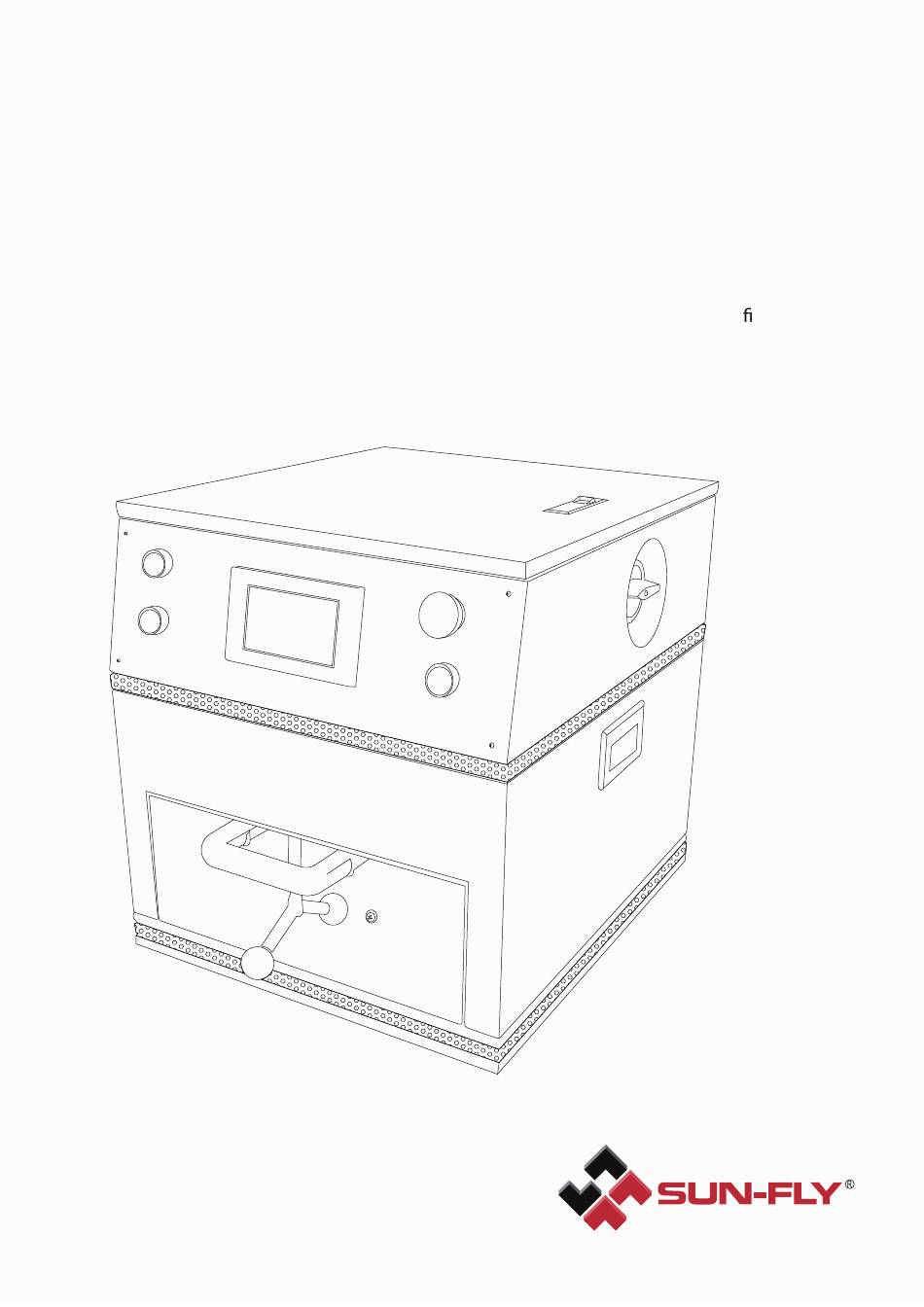

- Page 1 Vacuumsub A4 ORIGINING INSTRUCTION Manual Solution to your small to medium productivity demands of 3D vacuum sublimation( lm) printing...
-
Page 2: Table Of Contents
Contents I m p o r t a nt i n for mat i on S a f t y i nfor mat i on Pa ck a ge co nte nt s O ver v i ew M o u nt i ng Pho ne c a s e j i g i ns t a ll M o u s e ji g in s ta l l Lu n ch b ox j i g in s ta l l... -
Page 3: Important Information
This manual includes product introduction, operating servicing This machine. Failure to follow safety instructions, and speci cations. SUN-FLY Internation instructions could result in death or serious injury. Business Development Ltd. maintains a policy of continually improving its product line and some illustrations and descriptions may vary from the machine your own. -
Page 4: Safty Information
SAFTY INFORMATION Electric DANGER This machine contains high voltage elements. To H A Z A R D O U S prevent electric shock, do not open the machine cover V O LTA G E . when the machine is on and in use. Additionally, do not Disconnect Power open the drive or control devices even if the power is o before servicing. -
Page 5: Package Contents
Package contents Please check if any damages are made during shipping after receiving the machine package. If the appearance of the package, machine or the accessories are damaged, please le a written claim notice to the carrier immediately. You may check all the accessories and parts according to the packing list, if any of the accessories are missing, please contact the seller immediately. -
Page 6: Overview
OVERVIEW Model SFS-VSF07 LCD Display Resistance screen Power Supply 110V/220V 24A/12A Weight 50KG Power 2700W Pressure -0.08mPA Body Size 745 x 525 x 575mm Operating Area Size 405 x 370mm 1.Control Panel 2.Power On Button 3.Power O Button 4.Crank Handle 5.Emergency Button 6.Start Button 7.Printing Jigs... -
Page 7: Mounting
Mounting Step 1 Step 2 Find the plug-in socket at Push it into the socket the back of the machine Step 3 Main power connector nished... -
Page 8: Phone Case Jig Install
Phone case jig install Step 1 Step 2 Tighten the screws in accordance with the Position the phone case jig corresponding red location of screws. Step 3 Step 4 Push down the jig Push the jig towards to the machine Step 5 Complete View... -
Page 9: Mouse Jig Install
Mouse jig install Step 1 Step 2 Tighten the screws in accordance with the Position the mouse case jig corresponding red location of screws. Step 3 Step 4 Push down the jig Push the jig towards to the machine Step 5 Complete View... -
Page 10: Lunch Box Jig Install
Lunch box jig install Step 1 Step 2 Tighten the screws in accordance with the Position the mouse case jig corresponding red location of screws. Step 3 Step 4 Push down the jig Push the jig towards to the machine Step 5 Complete View... -
Page 11: Emergency Button
Emergency Button Press the emergency button to stop the machine. Clockwise rotate the emergency button to restore the machine operation... -
Page 12: Power Switch
Power Switch Turn o the power with the switch upward. Turn on the power with the switch towards to right. -
Page 13: Control Panel Overall
CONTROL PANEL OVERALL Preset Actual START Heating Temperature Clear Printed Circles STOP Printed Time Count down Machine Status 1. [Heating Temperature ] icon 2. Temperature Setting Frame 3.Actual Temperature Frame icon Printed Circles 5. Printed Circles Setting Frame 6. [Clear] Option 7.[Printing Time] icon 8. - Page 14 Hood Heating Temperature Setting Step 1.Touch the [Heating Temperature] Setting Frame Preset Actual Red lamp means the START Heating Temperature hood did not reach the setting temperature Clear Printed Circles STOP Printed Time Count down Idle Machine Status 0~160 START Heating Temperature Printed Circles Step 2.
- Page 15 Printing time setting Preset Actual START Heating Temperature Clear Printed Circles Step 1.Touch [printing STOP Time Preset] Frame Printed Time Count down Idle Machine Status 0~9999 START Heating Temperature Printed Circles Step 2. Set the printing time STOP by pressing the number Printed Time directly Count down...
- Page 16 Setting Preset Actual START Heating Temperature Clear Printed Circles STOP Printed Time Count down Touch [setting] option Machine Status Set [Film preheat time] Step 2. Touch the [Bottom Temperature] This time setting is to heat up Setting Frame the lm to make it softer, avoiding from the lm getting wrinkle when proceed to the next vacuum Preset...
-
Page 17: Va Cu U M S U B L I Mat I On P Roce S
Vacuum sublimation process Step 1 Step 2 Press the Power On button and set the Put in the jigs for about numerical value according to Step 7 30 minutes preheat. Step 3 Step 4 Put the phone case on Put the printed lm over the cases. to the printing jig. - Page 18 Step 5 Step 6 Close the positioner Push the platen inside the machine Preset Actual START ℃ ℃ Heating Temperature Clear Printed Circles STOP sec. Printed Time Count down Idle Machine Status Step 7 Step 8 Set the printing temperature , printing time Printing nished, pull out the table and the time for lm preheat.
- Page 19 SUN-FLY International Business Development Ltd. China Room 01,3F,TengHui Building,#28, ZhuCun BeiHuan Road,TianHe District, GuangZhou,China.510660 Tel: +86 20 8738 6048 Fax: +86 20 8738 0348 Email: info@sun- y.com www.sun- y-sublimation.com...
