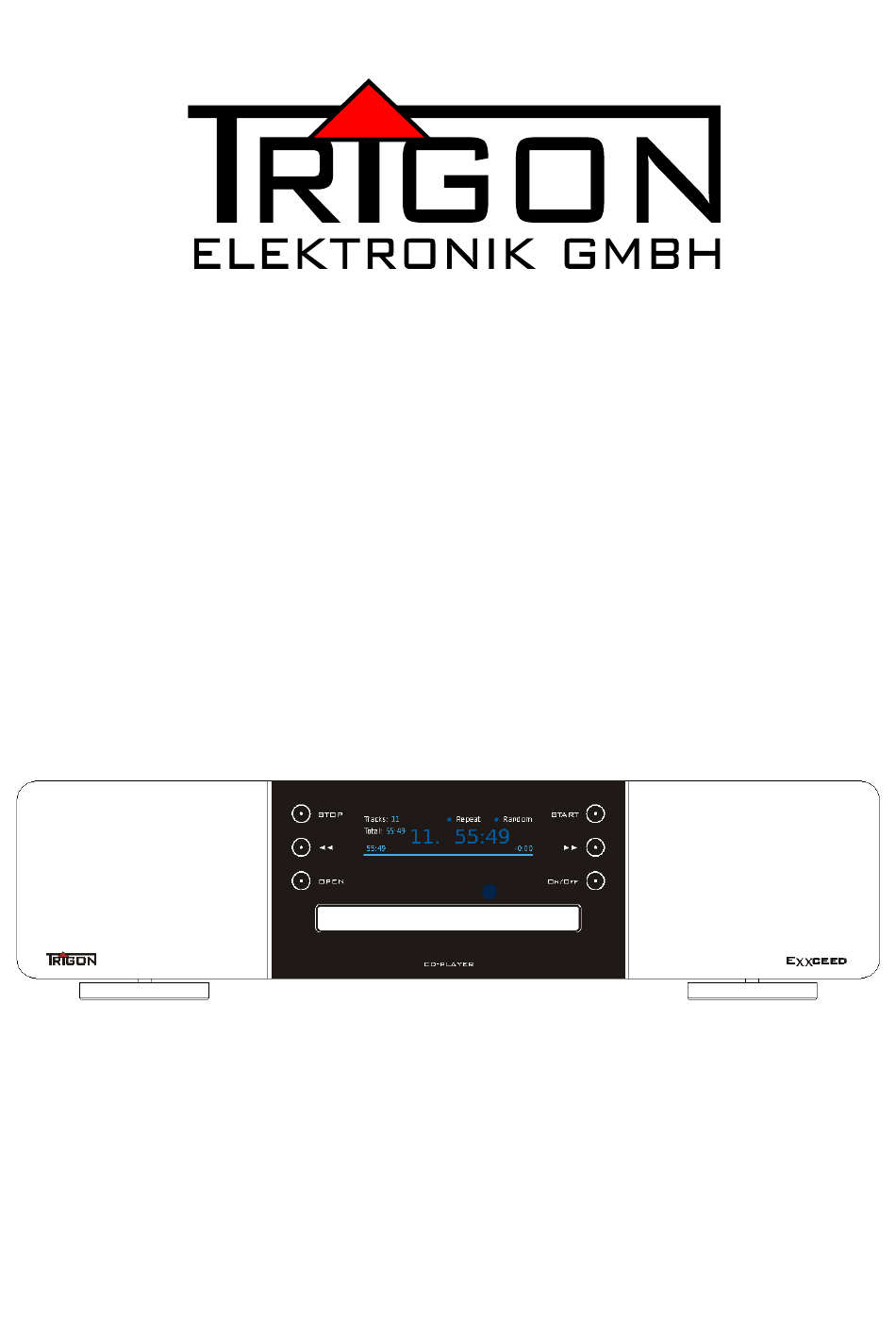

OPERATING INSTRUCTIONS
FOR CD-PLAYER
Exxceed
11.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXXCEED and is the answer not in the manual?

Questions and answers

Related Manuals for Trigon EXXCEED

Summary of Contents for Trigon EXXCEED

  • Page 1 OPERATING INSTRUCTIONS FOR CD-PLAYER Exxceed 11.2019...

  • Page 2: Table Of Contents

    CONTENTS 1 Preface 2. General Device Description 2.1 Safety Notices 2.2 List References 2.3 Guarantees and Service 3. Start-up 3.1 Control Elements on the Front Side 3.2 Connections on the Back 4 Remote Maintenance Menue Filter Color Power Management IR-Remote 6.

  • Page 3: Preface

    Please keep this instruction manual, because it can serve as an aid in handling your CD Player in the future. The TRIGON - team wishes you lots of fun with your new CD Player. 2. General technical manual EXXCEED is a CD-Player, where outstanding tonal quality meets a design and set of features that conform to high-end demands.

  • Page 4: Safety Notices

    Safety notices. TRIGON ELEKTRONIK assumes no liability for damage, which result from inappropriate handling and/or disregard for the following safety instructions. - The CD-player may not be placed close to strong heat sources such as heating elements, furnaces, high-powered lamps, open fires, etc.

  • Page 5: Guarantees And Service

    After unpacking the unit, examine the device first for possible transport damage. If you should determine damage has occurred, then immediately contact your dealer. Next, examine the contents of the container to ensure all components are present. You should Exxceed, find, addition to the the following:...
  • Page 6 However, you should - as always when working on the wiring - switch off the Exxceed CD player and the other devices in your system! 3.1 The controls on the front...
  • Page 7 [ 6 ] button ON/OFF This button turns the CD player on and off. A short press on this button switches the EXXCEED on and a longer press switches it off (standby mode). [ 7 ] CD drawer The audio CD is inserted here.
  • Page 8 [ 8, 9, 10 ] MAIN POWER ] The mains voltage is switched on with this switch (standby). ] The mains fuses are located here. ] The enclosed power cord is connected to this socket. [ 11 ] COAX SPDIF Digital Output A separate DA converter can be connected to this socket.
  • Page 9 CD player are darkened in the illustration on the left. Since the Director Premium remote control can be used for three very different TRIGON devices, the buttons are not labeled. D ir e c t o r p r e m iu m...

  • Page 10: Menue

    If this button is pressed during playback, playback is interrupted. Pressing this button again continues playback. Taste (11) Function EXXCEED This button has no function on the CD player. button (12) Number keys ON Pressing this button switches on - for a limited time - the number keys, which enables direct title selection.
  • Page 11 If the button is held down during playback, fast forward starts. button (16) STOP This button stops playback. button (17) no function EXXCEED This button has no function on the CD player. button (18) no function EXXCEED This button has no function on the CD player.

  • Page 12: Filter

    5 The menue Exxceed Various settings can be made on the CD player. A long press on the button [1] or button (5) on the remote control opens the settings menu. There are four menus here: Filter Color Power Management IR-Remote The green dot in front of each menu shows which menu is currently selected.

  • Page 13: Ir-Remote

    Open the IR Remote menu as described above. Here you can see a list of the 16 keys of the original TRIGON DIRECTOR PREMIUM remote control. The numbers of the buttons in Figure-4 correspond to the numbers in this submenu.

  • Page 14: What To Do, If

    Did the internal micro fuse burn through? – Return the device back for service..one hears nothing? Is the correct entrance at the amplifier selected? - Select the correct entrance. Exxceed Exxceed Does the supply at all a signal? – Attach the to another entrance and examine if it functions.
  • Page 15 The LED will shine. The remote control is activated now for the Exxceed Are the batteries dead? - Insert new batteries. Is there too much distance? - Reduce the distance. The IR remote control has a limited range.
  • Page 16 : IR-remote control Weight : 11 kg Dimension : 440 x 110 x 365 mm ( BxHxd) Änderungen vorbehalten Production and construction: Trigon Elektronik GmbH Crumbacher Straße 60 D-34277 Fuldabrück - Bergshausen Tel. +49 (0) 561/20753880 +49 (0) 561/20753888 e-mail: trigon@trigon-audio.de web: www.trigon-audio.de...
