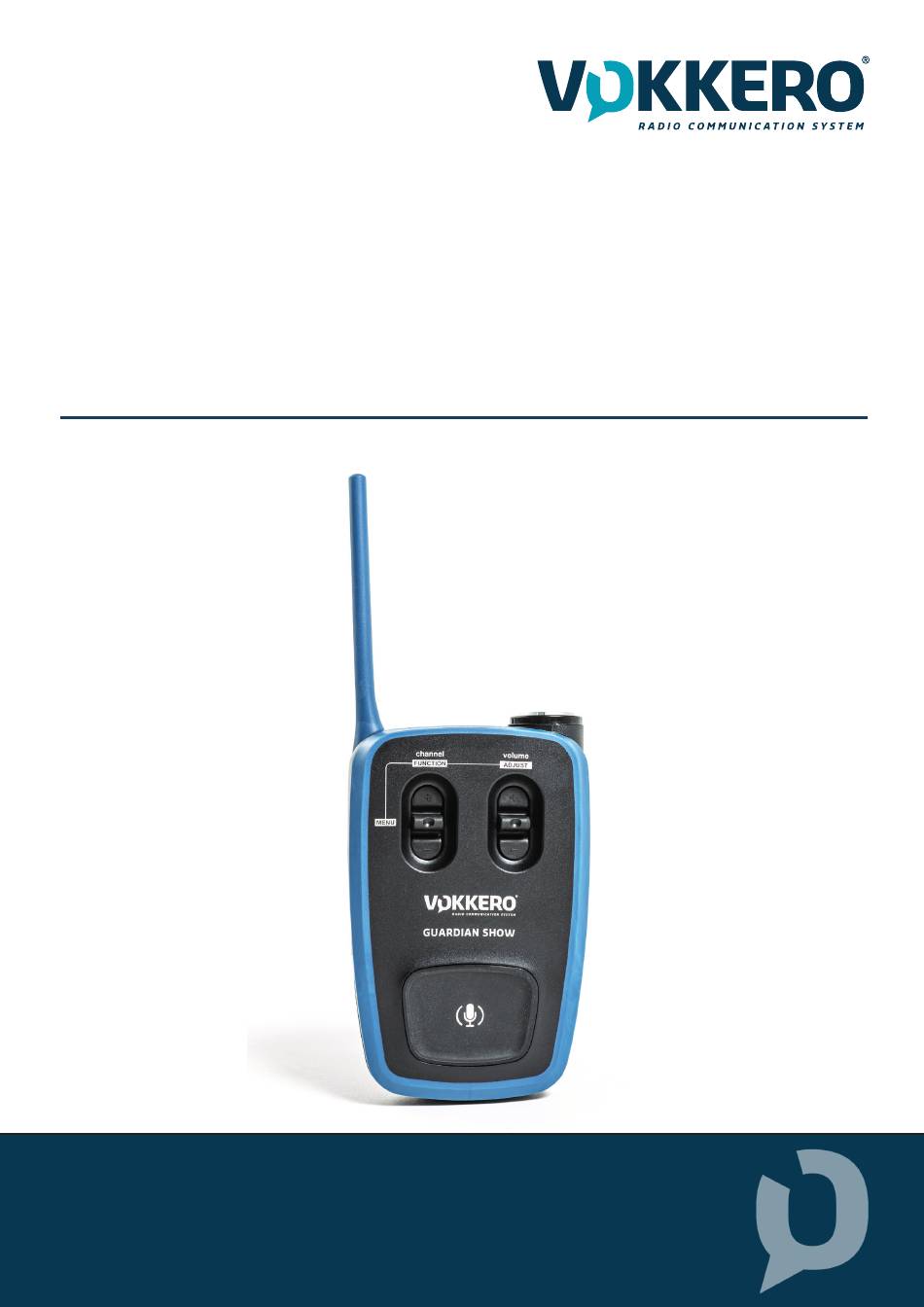

- Page 1 VOKKERO GUARDIAN GUARDIAN SHOW User Guide Version 1.0 211493 VOKKERO VOGO 101, place Pierre Duhem, Immeuble Les Centuries II, www.vokkero.com 34000 Montpellier, France www.vokkero.com...
- Page 2 VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 ENGLISH 2 / 32...
-
Page 3: Technical Support
KERO terms and conditions. They can be downloaded from www.vokkero.com VOKKERO makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. -
Page 4: Eu Declaration Of Conformity
Declare that the DoC is issued under our sole responsibility and belongs to the following product: Apparatus model/Product: Vokkero GUARDIAN Type: VO8150AA, VO8152AA, VO8154AA, VO8156AA Object of the declaration: The object of the declaration described above is in conformity with the relevant Union harmonisation... - Page 5 VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 USE of VOKKERO GUARDIAN in EUROPEAN UNION USAGE RESTRICTIONS Some countries in the European Union do not allow all the channels available in VOKKERO Guardian. The table below lists the channels for which restrictions exist Frequency (MHz)
- Page 6 101, place Pierre Duhem, Immeuble Les Centuries II 34000 Montpellier, France +33 (0)4 67 50 03 98 www.vogo-group.com www.vokkero.com Declare that the DoC is issued under our sole responsibility and belongs to the following product: Apparatus model/Product: Configurator/ Charger + extensions GUARDIAN...
- Page 7 Under no circumstances can the manufacturer, or the distributor of an VOKKERO program, be held liable for any damage caused by the use of the afore- said program. Program names, as well as all copyright relating to programs, are the exclusive property of VOKKERO. Any transfer, granting of licences to a third party, leasing, hire, transport, copying, editing, translation, modification into another programming language or reverse engineering are prohibited without VOKKERO’s prior written authorisation and consent.
-
Page 8: Environmental Recommendations
VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 ENVIRONMENTAL RECOMMENDATIONS All superfluous packaging materials have been eliminated. We have done everything possible to make it easy to separate the packaging into three types of materials: cardboard (box), expanded polystyrene (filler material) and polyethylene (packets, foam protective sheets). -
Page 9: Disposal Of Waste By Users In Private Households Within The European Union
VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 DISPOSAL OF WASTE BY USERS IN PRIVATE HOUSEHOLDS WITHIN THE EUROPEAN UNION This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. -
Page 10: System Installation Procedure

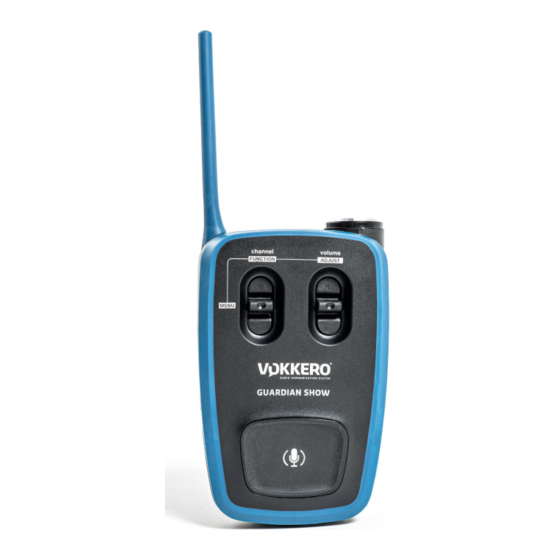

(Optional) Charger extension (1 to 4 maximum): VOKKERO GUARDIAN - Charger : VO8139AA All the operating settings of the VOKKERO Guardian system are managed by the configurator which gives access to the Settings menu via a touchscreen. The configurator must be connected to the power supply (otherwise it will not work) and up to 4 extensions units can be chained with the configurator. - Page 11 VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 2.1. VOKKERO® Guardian Terminal 2.1.1. Description of product interface 2.1.2. General characteristics Antenna Headset connector Flexible radio antenna. Connect to a headset (must be compatible with the terminal). «Volume» selector Trigger Button to adjust the vo- lume of the headset loudspeaker.
-
Page 12: General Technical Specifications
VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 2.2. VOKKERO® Guardian Charger/Configurator 2.2.1. Description of product interface Battery Charging without the terminal Screen Configurator display screen. Terminal charge Extension connection : no terminal or defective terminal Orange : terminal charging Power supply connector... -
Page 13: Starting Up The Terminal
3.2. IMPORTANT: about M role When setting up your Guardian Show system, the first step consists in attributing the Master role (M) to a single terminal of your choice. This M role is crutial to synchronize the digital communication between every beltpack of the system. -
Page 14: Headset Connection
VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 3.3. Headset connection Several types of headsets of the VOKKERO range can be connected to VOKKERO Guardian SHOW. The headset type is automati- cally detected by the terminal when connected. 3.3.1. Plugging in a headset... - Page 15 Push the trigger up to increase the group number Push the trigger down to lower the group number VOKKERO® Guardian SHOW feature 3 groups in addition of Group 0 (zero). Group 0 links all groups. Thus, the terminals in groups 1 to 4 can only hear and speak with the members of their group.
-
Page 16: Mute Button
Bluetooth-enabled device). As soon as your mobile phone is ready to detect new devices, press and hold the Bluetooth key of the VOKKERO Guardian terminal; the indication “Guardian Pairing” should display on the LCD screen. - Page 17 Pairing with a Bluetooth headset: Start the pairing mode of your headset (if necessary, consult the user guide). As soon as your headset is ready to detect a new device, press and hold the Bluetooth key of the VOKKERO Guardian terminal.
- Page 18 VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 3.4.7. Battery The terminal’s battery can be removed and recharged on the charger. Removing the battery Remove the battery from the terminal by pressing the locking mechanism at the top of the terminal and then slide the battery downwards.
- Page 19 VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 4. TERMINAL MENU AND SETTINGS 4.1. Basics Audio, Radio and System Functions can be adjusted directly from a simple menu onboard every terminal To enter Menu, press and hold Channel trigger center switch.
-
Page 20: Ptt Mode
VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 4.2.6. Max RF Power Adjust the RF power here. Note that depending on the frequency in use, maximum RF power may vary between 500mW and 10mW, and therefore some frequencies feature less adjustment steps, in accordance with regulatory requirements (see page 5). -
Page 21: Description Of The Configurator
The configurator does not have an On-Off switch. To turn it on, the configurator must be connected to the power unit provided with the VOKKERO Guardian. The configurator has a USB port for software updates. The configurator screen is a high-resistance touchs- creen. -
Page 22: Channel Selection
VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 6.2. Mandatory Channel Restriction during Sport Events If you perform in a sport arena during a sport event, make sure you select YES to the question « Do you perform during a sport event ». -
Page 23: Performance Modes
VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 7. PERFORMANCE MODES GUARDIAN SHOW features 3 different radio and audio presets (Rigging, Live, Studio), in order to comply with a great variety of use cases, from a noisy stage building environment to the quietness of a studio set. -
Page 24: Terminal Configuration
VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 8. TERMINAL CONFIGURATION This screen indicates the terminals present on the configurator. The charge status as well as the name of each terminal displays. The terminals display in their order of presence on the configurator, going from the closest (position 1) to the furthest away. - Page 25 VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 2 - Microphone action The central button can have a number of operating modes: - Latch: press to switch the microphone from Microphone On to Microphone Off; the microphone status displays on the terminal LCD - Push to talk: the microphone is On for as long as the button is pushed and held.
- Page 26 VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 5- Advanced settings Provides access to the following options: - Assign buttons: to change the functions of the buttons on the terminal - Alarm button: to change the press mode of the alarm button - Expert mode: Users cannot access this mode as it has settings that can disrupt the smooth-run- ning of your VOKKERO®...
- Page 27 VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 6 - Version Shows you the factory version of the terminal used. 7 - Factory settings This menu returns, to the factory setting, a product or all products connected to the configurator. After selecting and validating your choice, the configurator lets you know if the return to factory settings completed successfully.
-
Page 28: System Configuration
VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 9. SYSTEM CONFIGURATION In this screen you can see all the settings related to the system configuration. The settings in this menu apply to all the terminals present on the configurator. The available settings are: •... -
Page 29: Software Updates
VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 SOFTWARE UPDATES 10.1. Terminal software update To update terminals you have to use a USB key. Contact your vendor to obtain the most recent software version. The USB key used must be < or = 4Go. - Page 30 VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 11.1. Configurator Update To update the configurator you have to use a USB key. Contact your vendor to obtain the most recent software version. The USB key used must be < or = 4Go.
- Page 31 VOKKERO GUARDIAN GUARDIAN SHOW User Guide V1.0 CONFIGURATOR CALIBRATION, LOCK AND RESET Use this setting to adjust the screen. In this area, you can adjust the screen lighting, calibrate the touchscreen, and lock the configurator. 1 - Adjusting the screen lighting Slide the cursor from left and right to decrease and increase, respectively, screen lighting.
- Page 32 Unplug the configurator Reconnect the configurator When the configurator is switched on, on the first home screen, consisting of the «VOKKERO®» logo: press the 2nd «O” of VOKKERO®. Then you can restore the default settings of the configurato Confirm The configurator parameters have been reset.
