Arachnid 44456 Quick Start Manual

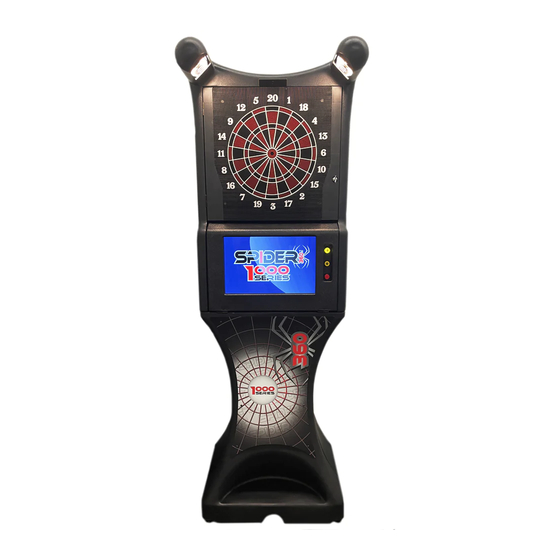

This kit allows you to install the optional player camera in your 1000 Series Spider 360 dartboard. Fol-
low the below instructions:

Needed Tools

• A Phillips Head Screwdriver
1. Unplug the Spider 1000 from the wall outlet.
2. Open the target door.
3. Remove the plug from the camera opening.
Note: If you do not have the plug step 3 mentions,
or has a predrilled hole there, you will likely need
to drill out the hole yourself. For instructions on
how to do that, visit:
https://spider360.com/pages/support-s1000
Download Spider 1000 Camera Kit Rev A. Follow
those instructions instead.
5. Holding the camera bracket in place, use the
supplied screws to secure the camera
bracket in place.
Warning: Do not over tighten. Only snug the
screws in place.

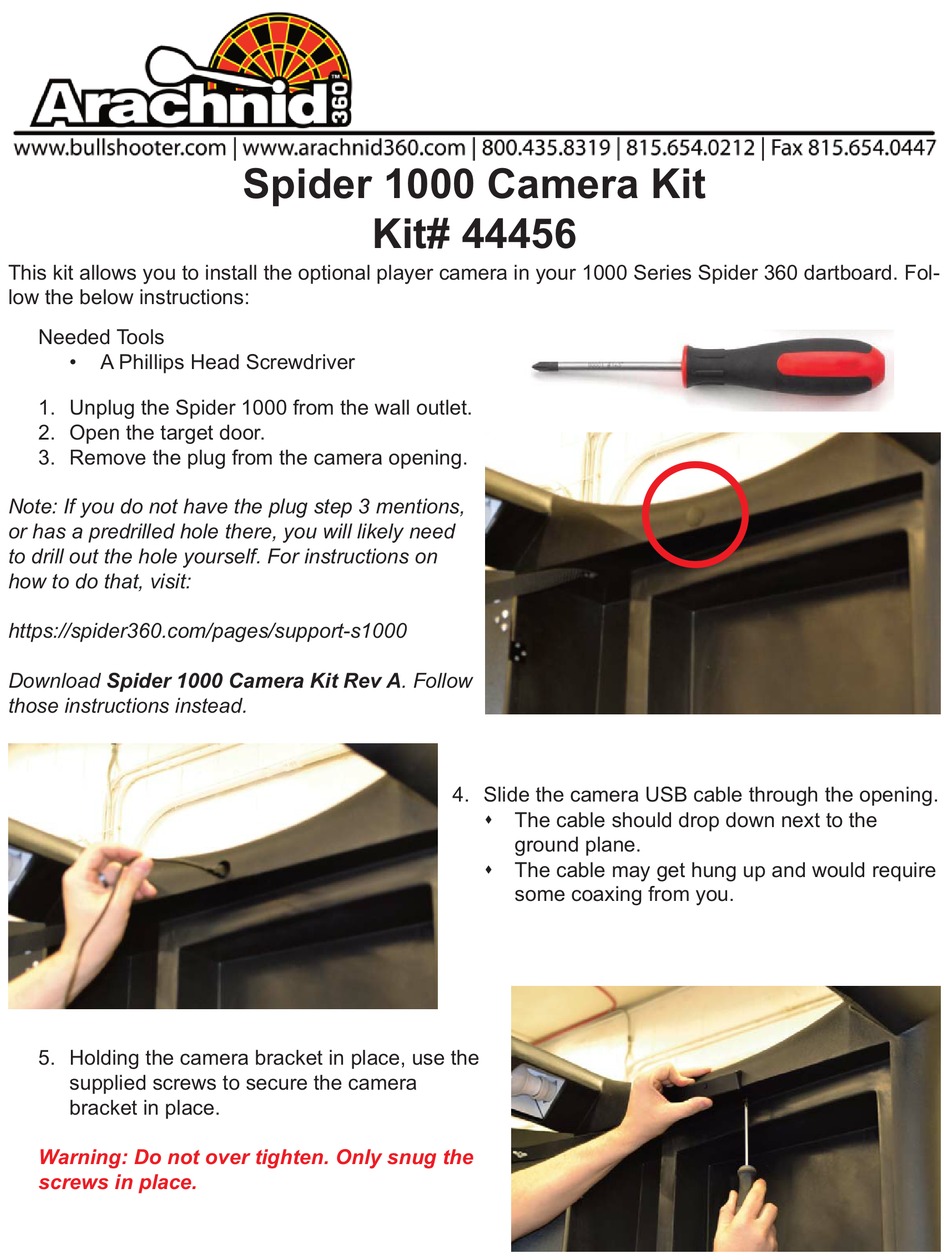

Spider 1000 Camera Kit
Kit# 44456
4. Slide the camera USB cable through the opening.
s The cable should drop down next to the
ground plane.
s The cable may get hung up and would require
some coaxing from you.
