- Page 1 Product Manual NeuroKom® IP WS 938‐3‐NGRS Vers. 1.01 I 2022.10...
- Page 2 IP devices are mainly used in security concepts. Fixed IP addresses are therefore preferred. Any DHCP servers suggested by the network administration should be avoided as far as possible, since they contradict the ® basic security concept of NeuroKom WS 938‐3‐NGRS | Installation Guide| Vers. 1.01 | 2022.10.18 I DKO |www.gehrke‐sales.com Änderungen und Irrtümer vorbehalten | © Gehrke Sales GmbH...

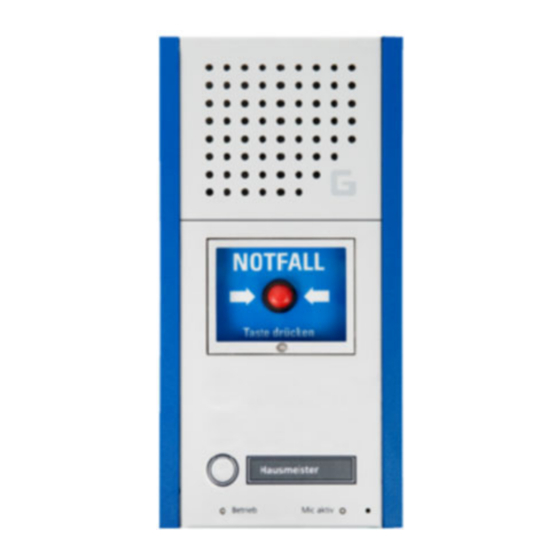

- Page 3 248 x 122 x 7 mm (Frontplatte H x B x T / front panel H x W x D) Schutzart: / IP Rate: IP 54 Empfohlenes Zubehör: Aufputzgehäuse /surface-mounted housing: AG 900 Recommended accessories: Unterputzgehäuse / flush-mounted housing: UG 900 / UG 901 Hohlwandmontage-Set / Cavity wall mounting set: HWM-UPK10/UG 900 WS 938‐3‐NGRS | Installation Guide| Vers. 1.01 | 2022.10.18 I DKO |www.gehrke‐sales.com Änderungen und Irrtümer vorbehalten | © Gehrke Sales GmbH...
- Page 4 Attachment of the board KI 917-U-P in surface or flush mounting housing with adhesive holders: (Before, the front panel is separated from the board and the adhesive holders are attached to the board.) KI 917-U-P AG 900 UG 900 WS 938‐3‐NGRS | Installation Guide| Vers. 1.01 | 2022.10.18 I DKO |www.gehrke‐sales.com Änderungen und Irrtümer vorbehalten | © Gehrke Sales GmbH...
-
Page 5: Lan Connection
Sollte der Stecker falsch aufgesteckt werden, kann die Platine zerstört werden! Danger: When reconnecting the ribbon cable, make sure that the yellow marking on the plug and the circuit board match. If the connector is plugged in incorrectly, the circuit board can be destroyed! WS 938‐3‐NGRS | Installation Guide| Vers. 1.01 | 2022.10.18 I DKO |www.gehrke‐sales.com Änderungen und Irrtümer vorbehalten | © Gehrke Sales GmbH... - Page 6 6. Die Beschriftung kann von der Seite eingefügt werden. Labels can be inserted from the side. Eine Beschriftungshilfe finden Sie auf unserer Homepage unter: www.gehrke-sales.com/service.html You can find labeling help on our homepage at: www.gehrke-sales.com/service.html 7. Bringen Sie die Abdeck- / Zierleisten an. Die mechanische Arbeit ist abgeschlossen.
- Page 7 SIP registration is carried out at the same time, the IP per plant / system. If a technical reset of the password with address of the SIP server is entered there. factory help is required, all settings will be deleted. WS 938‐3‐NGRS | Installation Guide| Vers. 1.01 | 2022.10.18 I DKO |www.gehrke‐sales.com Änderungen und Irrtümer vorbehalten | © Gehrke Sales GmbH...
- Page 8 „51“ – in Gruppe 51 „1“ – Alarminformation 1 „60“ – Abspieldauer 60 Sek. This example configuration triggers an alarm: "A" – alert | "51" - in group 51 | "1" - alarm information 1 | "60" – Playing time 60 seconds. WS 938‐3‐NGRS | Installation Guide| Vers. 1.01 | 2022.10.18 I DKO |www.gehrke‐sales.com Änderungen und Irrtümer vorbehalten | © Gehrke Sales GmbH...
- Page 9 NeuroKom® IP uses well-known and standardized methods here, so that no special programs are required for setup and preparation. We suggest preparing the files using "Audacity", whereby a number of comparable programs can be found and used on the Internet. You can request a corresponding manual from us at any time. WS 938‐3‐NGRS | Installation Guide| Vers. 1.01 | 2022.10.18 I DKO |www.gehrke‐sales.com Änderungen und Irrtümer vorbehalten | © Gehrke Sales GmbH...
-
Page 10: Audioeinstellungen / Audio Settings
With the settings described above, the basic configuration is complete. Please save with "Save". – This saves the parameters in the device. With the "Store" command you can save the configuration on your PC. You can use "Restore" to restore the saved values. WS 938‐3‐NGRS | Installation Guide| Vers. 1.01 | 2022.10.18 I DKO |www.gehrke‐sales.com Änderungen und Irrtümer vorbehalten | © Gehrke Sales GmbH... - Page 11 KONTAKT Benrodestr. 83 T +49 (0)211 54 57 01 00 info@gehrke‐sales.com Gehrke Sales GmbH 40597 Düsseldorf F +49 (0)211 54 57 01 81 www.gehrke‐sales.com...
