Summary of Contents for BZB Gear BG-AEE

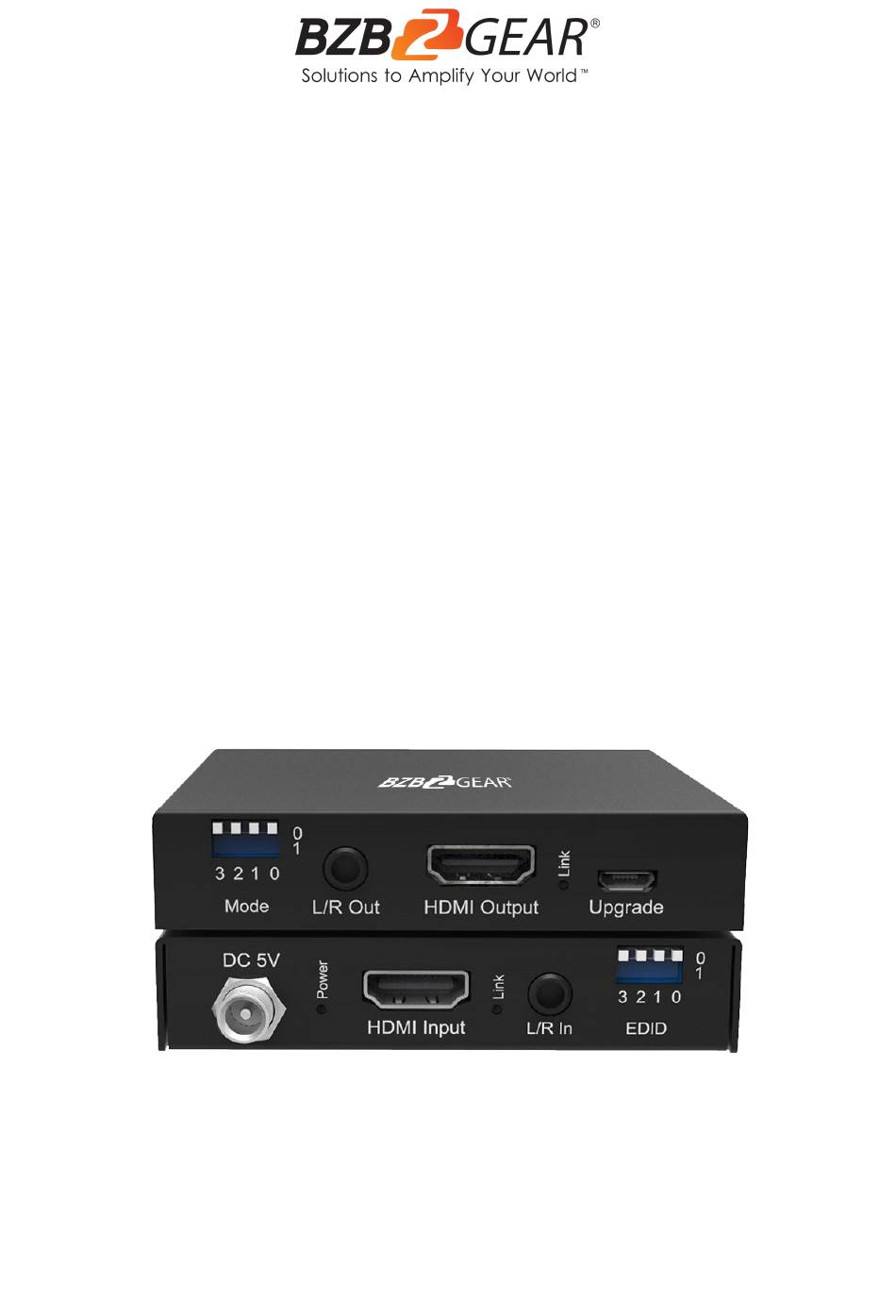

- Page 1 BG-AEE 4K UHD 18Gbps HDMI Signal Fixer and Audio Embedder/Extractor User Manual...
- Page 2 BZBGEAR BG-AEE PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-AEE PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Panel Description Application Diagram Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-AEE PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-AEE is an HDMI 2.0 Audio Extractor and Embedder. It has two modes: audio extraction via L/R output from HDMI input source, and the other mode is for removing the original audio of HDMI source and embedding auxiliary audio via L/R input to the HDMI output. -
Page 6: Specifications
BZBGEAR BG-AEE PRODUCT MANUAL Specifications Bandwidth 18Gbps Video Input Connectors 1x HDMI Type A, 19-pin, female Audio Input Connectors 1x 3.5mm stereo earphone jack (L/R) Video Output Connectors 1x HDMI Type A, 19-pin, female Audio Output Connectors 1x 3.5mm stereo earphone jack (L/R) -
Page 7: Operation Controls And Functions
Name Function Description 4 pin (UP=0, DOWN=1). The BG-AEE can be configured to perform various tasks using the mode DIP switches. Detailed settings please see below: A. Under control by DIP switch, the position of DIP Switch-0 should be UP (0). -
Page 8: Application Diagram
BZBGEAR BG-AEE PRODUCT MANUAL EDID type Combination of DIP positions Copy EDID from output 1080P 2.0CH 1080P 5.1CH 1080P 7.1CH 1080i 2.0CH 1080i 5.1CH 1080i 7.1CH 4K60Hz 4:2:0 2.0CH 4K60Hz 4:4:4 2.0CH, 4K60Hz 4:4:4 7.1CH 4K30Hz 4:4:4 2.0CH 4K30Hz 4:4:4 5.1CH 4K30Hz 4:4:4 7.1CH... -
Page 9: Tech Support
BZBGEAR BG-AEE PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 10: Warranty
BZBGEAR BG-AEE PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 11: Mission Statement
BZBGEAR BG-AEE PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 12: Copyright
BZBGEAR BG-AEE PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
