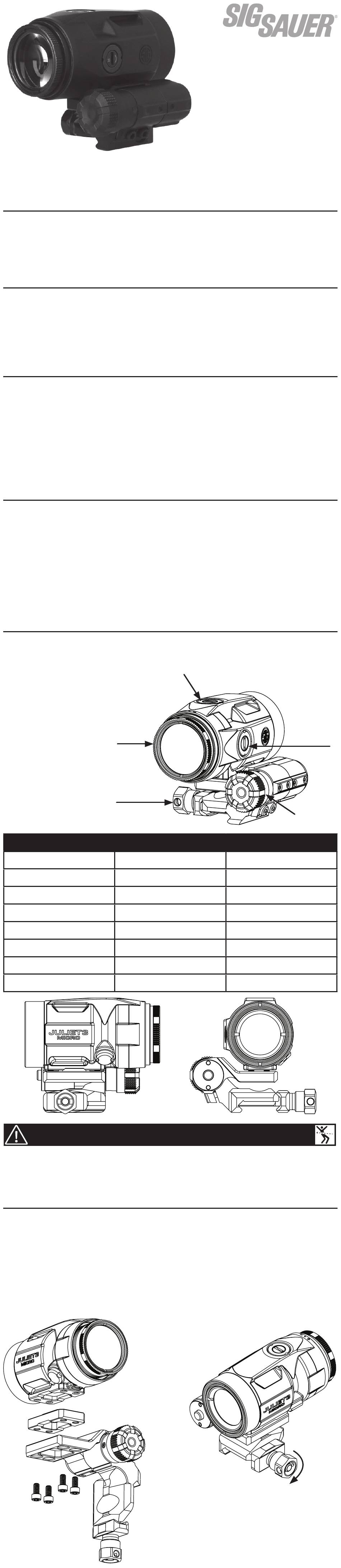

Sig Sauer JULIET-MICRO Operator's Manual

JULIET-MICRO
COMPACT MAGNIFIER
OPERATOR'S MANUAL
Please visit sigsauer.com for Owners Manual downloads.

INTRODUCTION

The SIG SAUER
holographic sight users extended range capabilities in an ultra-small, lightweight
package. When mounted behind a SIG SAUER ROMEO Red Dot sight the flip-to-side
JULIET-MICRO Magnifier allows users to quickly change from close to long distance
engagements. JULIET-MICRO Magnifiers are covered by the SIG SAUER Electro-
Optics Infinite Guarantee.
CONTENTS:
• JULIET-MICRO Compact Magnifier
• 1.41" Absolute Co-Witness Push-Button, Flip-to-Side Mount (installed)
• 1.54" Sight Height Spacer kit
• 1.63" Lower 1/3rd Co-Witness Spacer Kit
• Hex Tool
• Bikini Lens Cover
• Lens Cloth
KEY FEATURES:
• High Performance Lens Coatings including Dielectric Coated Prism for excellent
clarity and contrast
• Push-Button, Flip-to-Side Mount with durable industry standard 1/2" hex keeper
• Ultra-compact size and weight
• IPX7 Waterproofing
• Bikini Lens Cover, and spacers to achieve (3) sight heights: absolute co-witness
1.41", 1.54" and lower 1/3rd co-witness 1.63" sight heights.
• SIG SAUER
PRODUCT IDENTIFICATION
A. 1/2" Hex Keeper
B. Ocular Housing with Adjustable Diopter
C. Elevation Adjustment
D. Windage Adjustment
E. Push-Button, Flip-to-Side Mount
SPECIFICATIONS
Magnification
Clear Aperture
Field of View
Eye Relief
Diopter Range
Waterproof
Length
Weight
ENSURE YOUR FIREARM IS UNLOADED AND CLEARED OF ALL AMMUNITION
AND THE SAFETY IS ENGAGED PRIOR TO INSTALLING OR REMOVING THE
JULIET-MICRO.

OPERATION

Installation
Step 1 - Sight Height
Your JULIET-MICRO comes configured for 1.41" absolute co-witness, but also includes
spacer kits for 1.535" and 1.63" lower 1/3rd co-witness. Determine the sight height
of your red dot and adjust your JULIET-MICRO sight height accordingly by using the
spacer kits provided. The 4 mounting screws should be torqued to
13 in-lbs.
13 in-lbs
JULIET-MICRO line of Compact Magnifiers provides red dot and
®
Electro-Optics Infinite Guarantee™
®
SPACER INSTALLATION
B
A
WARNING UNLOAD/CLEAR
C
JULIET3-MICRO
PRODUCT IDENTIFICATION
3X
22
6.8°
63 mm
± 2Dpt
IPX-7
81 mm
277 g
™
E
JULIET5-MICRO
5X
24
4.0°
60 mm
± 2Dpt
IPX-7
79 mm
273 g
65 in-lbs
DIOPTER ADJUSTMENT
DIOPTE
D
