Securemme 8190 Instructions

ISTRUZIONI TASTIERA SERIE 8190

INSTRUCTIONS FOR MODEL 8190 KEYPAD

Tastiera elettronica diametro 46 mm DUE in UNO (codice numerico e transponder).

Electronic keyboard 46 mm diameter TWO in ONE (numeric code and transponder).

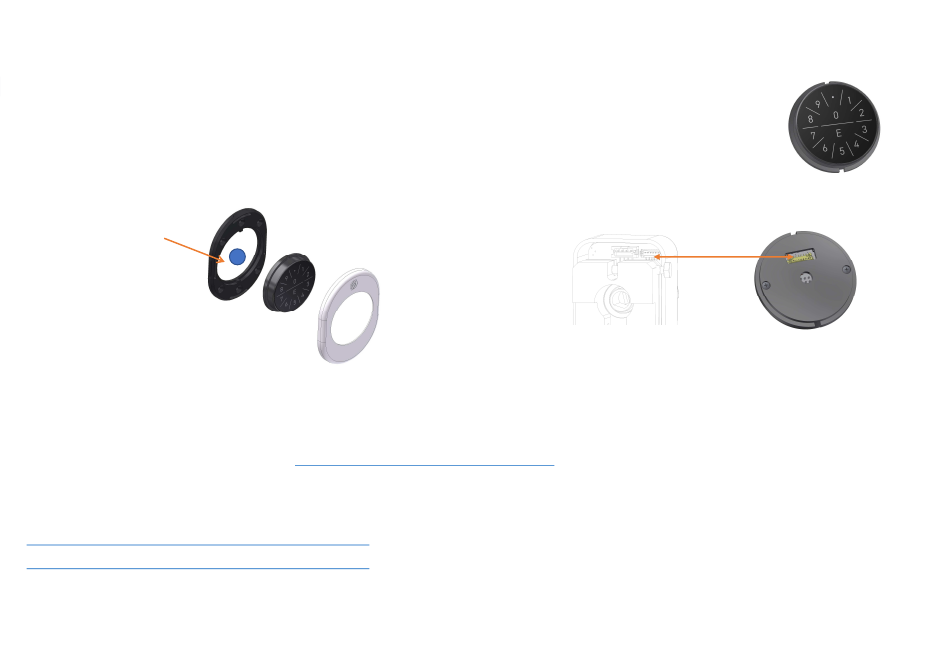

-In corrispondenza del connettore effettuare un foro nel pannello esterno min. Ø13 mm (fig. 1). /At the connector make a hole in the external panel at least 13 mm diameter ( fig. 1 ).

-Collegare la tastiera alla scheda Dsmart tramite il cavo in dotazione (fig. 2). /Connect the keyboard to the Dsmart card using the supplied cable

-Inserire la tastiera nel supporto plastico e applicare la placca metallica (non in dotazione)./ Insert keyboard in plastic support and apply metal plate (not supplied)

Foro per passaggio cavo/

Hole to put the cable

UTILIZZO TASTIERA/ HOW TO USE THE KEYPAD

APERTURA: codice utente + E. / OPENING: put user code + E

CHIUSURA: premere tasto 0+ E. / CLOSING: push button 0 + E

DISATTIVAZIONE SUONO: codice 1234567 + E. /

SOUND DEACTIVATION: put code 1234567 + E

ATTIVAZIONE SUONO: codice 7654321 + E. /SOUND ACTIVATION: put code 7654321 + E

APERTURA CON TRANSPONDER / OPENING WITH TRANSPONDER

Versione Dsmart a BATTERIA: premere qualsiasi tasto e avvicinare il transponder./

Battery - powered Dsmart: push every button random and bring the transponder closer.

Versione Dsmart ALIMENTATA: avvicinare il transponder./ Mains – powered Dsmart: bring transponder closer.

Per creazione codici tastiera far riferimento al manuale Dsmart 2.0. (link :

Transponder RFID: 13.56 MHz / H-field @ 3m (dBμA/m) =-3,4 (Transponder custom fornito da Securemme) – Transponder supplied by Securemme

Specifiche tecniche : Alimentazione 3.3V (cavo in dotazione) Temperatura di funzionamento max =50°

Technical specifications: 3.3V power supply (cable supplied) Max operating temperature = 50 °

Hereby, Securemme SRL declares that the radio equipment type 8190xbk is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address:

https://securemme.it/download/ISTRUZIONI%20TASTIERA%208190_new_7875.pdf

Il fabbricante, Securemme SRL, dichiara che il tipo di apparecchiatura radio 8190xbk è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet:

https://securemme.it/download/ISTRUZIONI%20TASTIERA%208190_new_7875.pdf

https://securemme.it/download/Dsmart%202.0%20istruzioni_7666.pdf

Connettore scheda Dsmart 2.0 /

Dsmart 2.0 card connector

)/ To create keypad codes please look D.smart 2.0 instructions at this link
