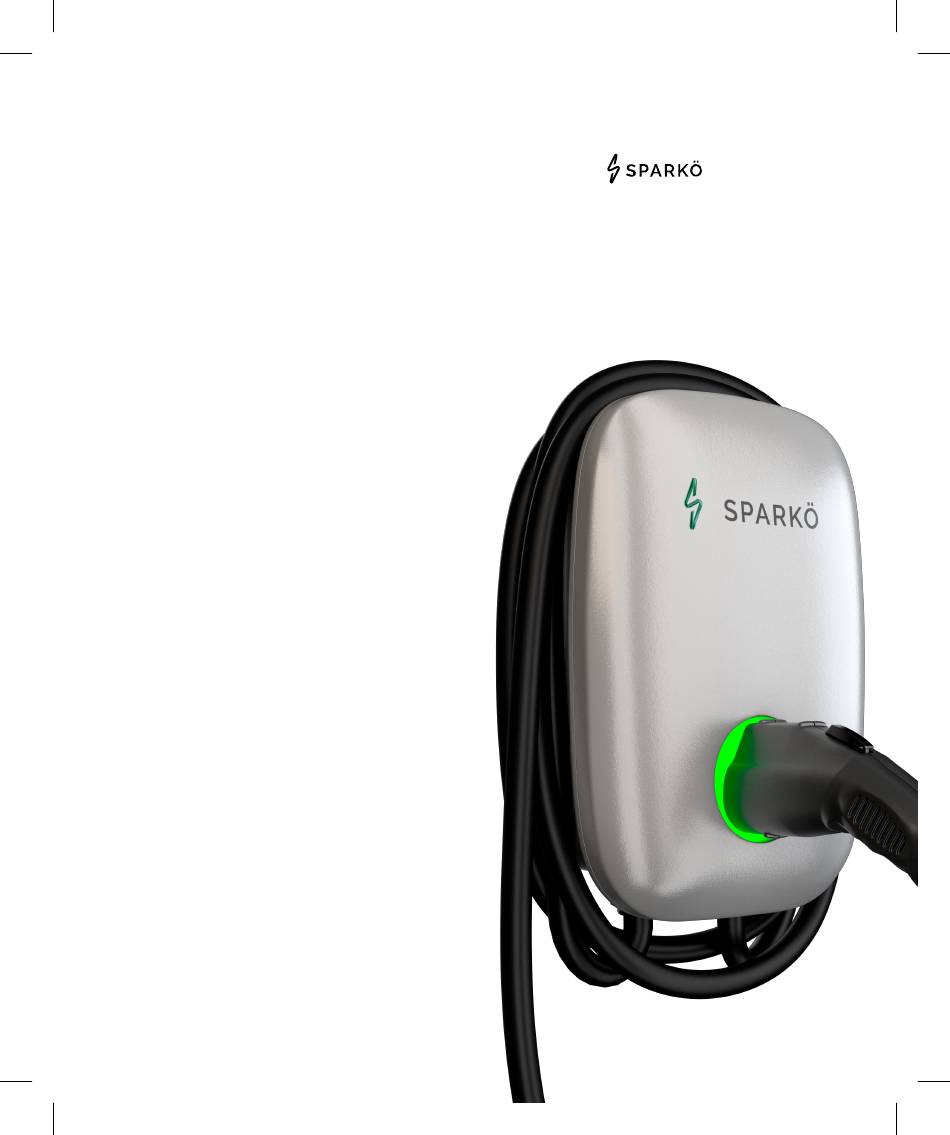

- Page 1 HOME U S E R M A N U A L F a s t L e v e l 2 E l e t r i c V e h i c l e C h a r g e r...
- Page 2 THANK for accelerating Earth's transition to sustainable energy.
-
Page 3: Important Safety Instructions
WARNING WARNING AVERTISSEMENT This manual contains important instructions for the Sparkö Home Ce manuel contient des instructions importantes pour les modèles : series that shall be followed during installation, operation and série EVC12 qui doit être suivie pendant l'installation, le fonctionne- maintenance of the unit. -
Page 4: Basic Interface
WARNING 2. Basic Interface This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Design Standard
WARNING 4. Design Standard 3. Dimensions UL 2594: Electric Vehicle Supply Equipment UL 2231-1: Personnel Protection Systems for Electric Vehicle (EV) Supply Circuits: General Requirements 9.84" UL 2231-2: Personnel Protection Systems for Electric Vehicle (EV) Supply Circuits: Particular Requirements for Protection Devices for Use in Charging Systems UL 2251: Plugs, Receptacles and Couplers for Electric Vehicles UL 62: Flexible Cords and Cables... - Page 6 5. Status Description of the Charger Indication Light Model Name Rated Input Voltage 200-240 VAC Rated Output Current 16/32/40/48A AC Power Frequency 60 Hz Input Protection UVP, OVP, RCD, SPD, Ground Fault Protection Output Protection OCP, OTP, Control Pilot Fault Protection Standby - Blue Light The READY light stays Output Interface...
-
Page 7: Packing List
Product Name Quantity Note AC Charger (With Charging Cable) FAULT User Manual Fault - Red Light The red light is lit while fault. Please refer to "9.3 Error and Warning Messages" Wall-Mounted Bracket for detailed information. M5 teeth screws M6 Hexagonal Expansion Screws 7. - Page 8 8.2 Wiring GROUNDING INSTRUCTIONS For safe use of electricity, please add circuit breaker protection in the input This product must be grounded. If it should malfunction or break down, part of charging pile. Connect the L1 lead to the grid L1, connect the L2 grounding provides a path of least resistance for electric current to reduce lead to the grid L2, connect the PE lead to the grid PE (for all Version).
-
Page 9: Tools And Materials Required
8.4 Wall-Mounted Bracket Installation 8.3 Tools and Materials Required Step 1: Tools required before installing the Wall-Mounted charger, gather the following tools: • Set the positions of the 4 screw holes and drill them, with a diameter of • Wire stripper 8mm and •... - Page 10 9. Operation Instuctions Step 3: Fix two M5 screws to complete the installation. 9.1 Operating Procedures User authorization Connect to Vehicle Charging Inlet Charging Message Charging completed 9.2 Operating Steps Step 1 / Standby Mode After power-on, blue light (READY), green light (CHARGE) and red light (FAULT) all lit.
-
Page 11: Error And Warning Message
9.3 Error and Warning Message Step 2 / Plug the Charging Connector Please plug the charging connector into the vehicle charging inlet. Status Remark 1 flashes followed Input OVP Auto Recover by 3 sec pause 2 flashes followed Input UVP Auto Recover by 3 sec pause 3 flashes followed... -
Page 12: Maintenance And Repair
10. Maintenance and Repair • During the warranty period for any malfunction caused by normal use according to the User Manual and Service Instruction (to be determined by certified maintenance technicians of Sparkö), the product shall be repaired free of charge. Except for the following situations, the charger shall be subject to 10.1 Daily Maintenance the above warranty terms: Please keep the charger clean and keep the charge in a clean area with low... - Page 13 SOP OF CONFIGURATION OF APP...
-
Page 14: Bluetooth Connect
BLUETOOTH 1. Add a Device， enter pairing mode CONNECT 2. Turn on your phone's Bluetooth and select the Bluetooth option... - Page 15 3.You can pull down to refresh the bluetooth list, and choose the bluetooth name consistent with the charger’s SN Connection complete 4.Select the appropriate method (with scanning code or automatic identification input), inputing the SN. Note: QR code on the side of the charger...
- Page 16 First time to configurate wifi Add a Device Turn on Bluetooth on phone Select wifi Input SN Set your wifi account and password FIRST TIME WIFI setting complete CONFIGURATION Restart the charger and App wating 40 seconds Add a Device Select wifi...
- Page 17 1.Add a Device 3. Pull down to refresh the Bluetooth list, and 2.Turn on the bluetooth select the Bluetooth on phone， then name that is consistent select wifi with the charger’s SN. Note: 4.Select the appropriate method (with scanning Using WIFI for the first code or automatic time, you need to use identification input),...
- Page 18 7.When it shows success- ful configuration click Confirm, then the app will automatically log out. 5.Input SN to the wifi configuration interface 8.Log in App again， when the charger connect to 6.Input wifi account and the wifi. Click Add a password to connet Device.
- Page 19 9.Select wifi 10.Connection complete Note: After the first configuration, you only need to click the wifi to connect for everytime usage.
- Page 20 HOME www.thesparko.com...
