Summary of Contents for Artusi AMO25TK/1

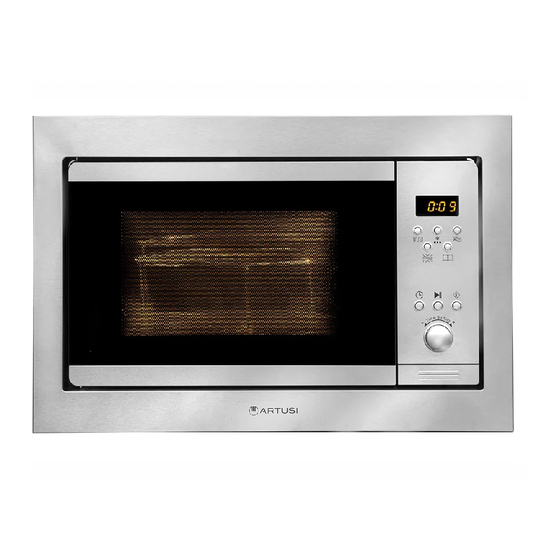

- Page 1 25 Litre Electronic Microwave Owner s Instruction Manual AMO25TK/1 Read the Instructions carefully and Keep for Future Reference V20220722...
-
Page 3: Important Safety Instructions
Important safety instructions When using electrical appliance basic safety precautions should be followed, including the following: warning: to reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. - Page 4 7. To reduce the risk of fire in the oven cavity: a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
- Page 5 needed to handle the utensil. 15. Utensils should be checked to ensure that they are suitable for use in microwave oven. 16. Warning: it is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
- Page 6 damaged and the warranty would be avoid . 21. The accessible surface may be hot during operation. 22. The door or the outer surface may get hot when the appliance is operating. 23. The temperature of accessible surfaces may be high when the appliance is operating.
- Page 7 31. The microwave oven is intended for defrosting, cooking and steaming of food only. 32. Use gloves if you remove any heated food. 33. Caution! Steam will escape, when opening lids or wrapping foil. 34. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.
-
Page 8: Specifications
SPECIFICATIONS Power consumption: 220-240V~50Hz, 1280W Output: 800W Operating Frequency: 2,450MHz Outside Dimensions: 592mm(W) X 382mm(D) X 390mm(H) Oven Cavity Dimensions: 348mm(W) X 334mm(D) X 213mm(H) Oven Capacity: 25 litres Uncrated Weight: Approx. 15.5kg BEFORE YOU CALL FOR SERVICE test the outlet with another appliance. 1. -
Page 9: Installation
INSTALLATION 1. Make sure all the packing materials are removed from 3. This Microwave Oven weighs 15.5 kg and must be the inside of the door. placed on a horizontal surface strong enough to support this weight. 2. Inspect the oven after unpacking for any visual 4. -
Page 10: Safety Instructions For General Use
IMPORTANT SAFETY INSTRUCTIONS - WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function) - WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;... -
Page 11: Feature Diagram
6. Do not insert any object into the openings on the outer removed from the oven, please remember that case. the food/liquid inside will be releasing the same 7. Do not at any time remove parts from the oven such as amount of steam and/or spitting when the lid is the feet, coupling, screws, etc. -
Page 12: Control Panel
Control Panel (1) DISPLAY WINDOW (3) Defrost (4) Micro (2) Slow Cook Slow Cook Defrost Micro (5) Memory (6) Auto Menu Memory Auto Menu (8) Pause/Cancel Clock/Timer Pause/Cancel Start (7) Clock/Timer (9) Start (10) Time Setting... - Page 13 Operating Instructions 1. Single Button Heating With a single press of a button you can start simple cooking. It is very quick and convenient. E.g. to heat a cup of water a) Put a cup of water onto the glass turntable and close the door. b) Press "Start"...
- Page 14 a) Press "Auto Menu" button to choose A-3. b) Rotate the knob "Time setting" to set weight 400g. c) Press "Start". Menu Weight Rice Vegetable Meat Spaghetti Fish Reheat Touching Times 1000 1000 5. Slow Cook Two power setting levels S-1 and S-2 from high to low. Press "Slow Cook"...
- Page 15 Clock/Timer Clock/Timer Clock/Timer Clock/Timer Micro Start Start Auto Menu Memory Auto Menu Memory 0. Pause/cancel a) In the course of operation, pressing "Pause/Cancel" button will stop operation. b) If any program was set before pressing start, pressing this button will cancel all the set program.
-
Page 16: Schematic Diagram
SCHEMATIC DIAGRAM ( DOOR OPENED, COOK OFF CONDITION) NOISE FILTER TRANSFORMER MAGNETRON N E L P( OUT) R4-2 T( IN) R4-1 D_ SW CONTROLLER L: LAMP SWA: PRIMARY INTERLOCK SWITCH SWB: SECONDARY INTERLOCK SWITCH FM: FAN MOTOR TM: TURNTABLE MOTOR SWC: THE MONITOR INTERLOCK SWITCH *CIRCUIT SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 17: Installation Instructions
Installation Instructions Please Read the Manual Carefully Before Installation The oven is fitted with a plug and must only be connected to a properly installed earthedsocket. The socket must only be installed and the connecting cable must only be replaced by a qualified electrician, and in accordance with the appropriate regulations. -
Page 18: Installation Steps
INSTALLATION STEPS 1. Put the microwave oven into the cabinet keeping the microwave oven upright and check the distance from the two sides is the same. Then fix the bolt (component 1) on the top of microwave oven and screw it into the cabinet. 2. -
Page 19: Warranty Card
Portable Gas Models Locked Bag 3000, Annandale, N.S.W 2038 2. What is not Covered by the Warranty. The Warranty does not apply if an artusi product WARRANTY REGISTRATION is defective by a factor other than a defect arising Your ongoing satisfaction with your artusi in the manufacture of the artusi product, including product is important to us. - Page 20 Warranty Registration Card. 8. Defects 7. Statutory Right Any part of an artusi product deemed to be defective and replaced by Worldwide Appliances statutory rights. is the property of Worldwide Appliances. (b) The limitations on the Warranty set out in this...
