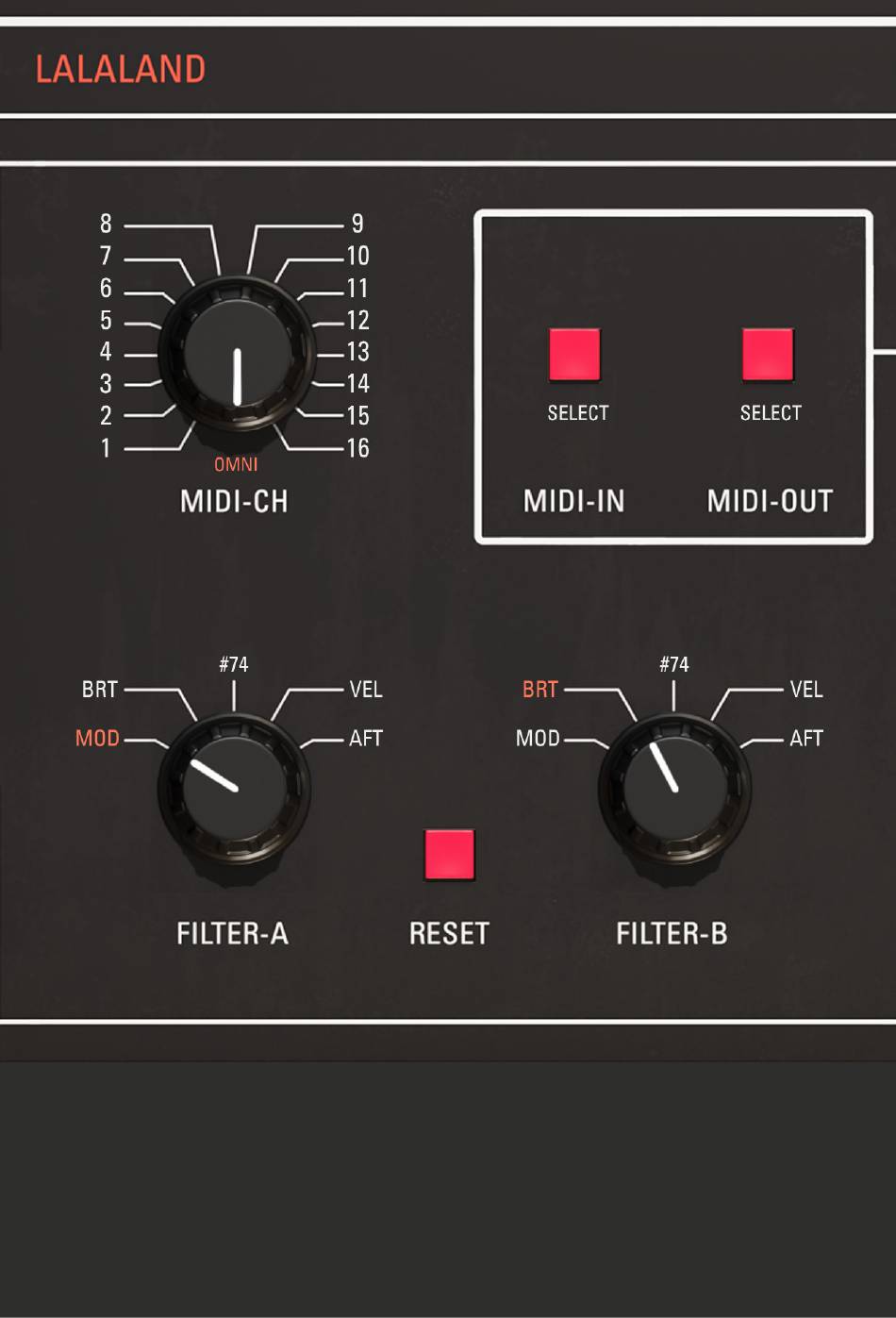

- Page 1 CS20M Midi Kit Installation manual...
- Page 2 Introduction CS Series Midi Kit: Tools needed Philips screwdriver 3.5mm drill for screws (Optional 3mm tap drill) 15mm step drill Content • CS MIDI board • 1x3 pin power cable (RED, BLUE, BLACK) • 1x6 pin keyboard cable (MULTICOLORED) • 1x7 pin keyboard cable (MULTICOLORED) •...
-
Page 3: Installation
Installation The CS Midi board is installed between the keyboard and the key assigner board and therefore requires only 2 cables to solder (Filters). Removal of the key assigner is not required. Although we suggest calibrating the synth before install, recalibration after install is not required. - Page 4 MIDI connectors installation Start by drilling and mounting the midi connectors using the midi sticker as a tem- plate, place the sticker in the desired location and fasten at the top with tape and mark the center X’s. Next lift up the sticker while the tape holds it in place and drill the holes for the midi connectors.
- Page 5 Connect the power cables Locate the 5 pin connnector (+15, -15, GND/EK) on the board as shown in the image (SSK board, bottom of the synth, under keyboard). Using the 3 Wire (Red, Black, Blue) power cable,insert the connector while taking care of the correct orientation.
- Page 6 Now plug the Power cable into Power on the MIDI Board as shown in image. Locate and disconnect the 6 and 7 pin cables on the key assigner PCB. CS20M MIDI Kit Installation Manual...
- Page 7 Connect the 7 pin cable to the midi board as shown in image. Connect the 6 pin cable to the midi board as shown in image. CS20M MIDI Kit Installation Manual...
- Page 8 Now connect the provided 6 pin cable to the MIDI board as shown in image Connect the provided 7 pin cable to the MIDI board as shown in image CS20M MIDI Kit Installation Manual...
- Page 9 Connect the 6 and 7 pin cables to the MIDI board as shown in image. (where you previously diconnected the original cables). Connect the MIDI in and out cables as shown in image. NOTE: At this point the board, MIDI in/out is operational. Filter control is optional.
- Page 10 Solder the f ilter cable(s) Locate the solder point shown in this image (The right f ront panel board). Use the provided orange and Purple cable. orange wire Solder the to this point shown in image (Purple is not used). CS20M MIDI Kit Installation Manual...
- Page 11 Now connect the 2 pin connector to the FILTER connector on the midi board as shown in image. You have completed the full installation. MIDI in/out, f ilter and all features are now operational. Secure all wiring with the included zip ties. Close the synth and connect to mains.
- Page 12 MIDI drill template Print out and use as drill template. CS20M MIDI Kit Installation Manual...
- Page 13 Congratulations on your CS20M MIDI Kit May the force of creation be with you! Join our early bird club at lalalandsynth.com for news about new products CS20M MIDI Kit Installation Manual...
