Ritchie StallFount Installation Instructions Manual

A. Mounting Fountain - The StallFount and StallFount 125 are designed to accept the water supply line from
below the fountain, or from behind the fountain through the wall.
NOTE: For the StallFount 125 version the unit must be installed over a non-combustible surface. The
supply line shroud must be in contact with non-combustible floor surface.

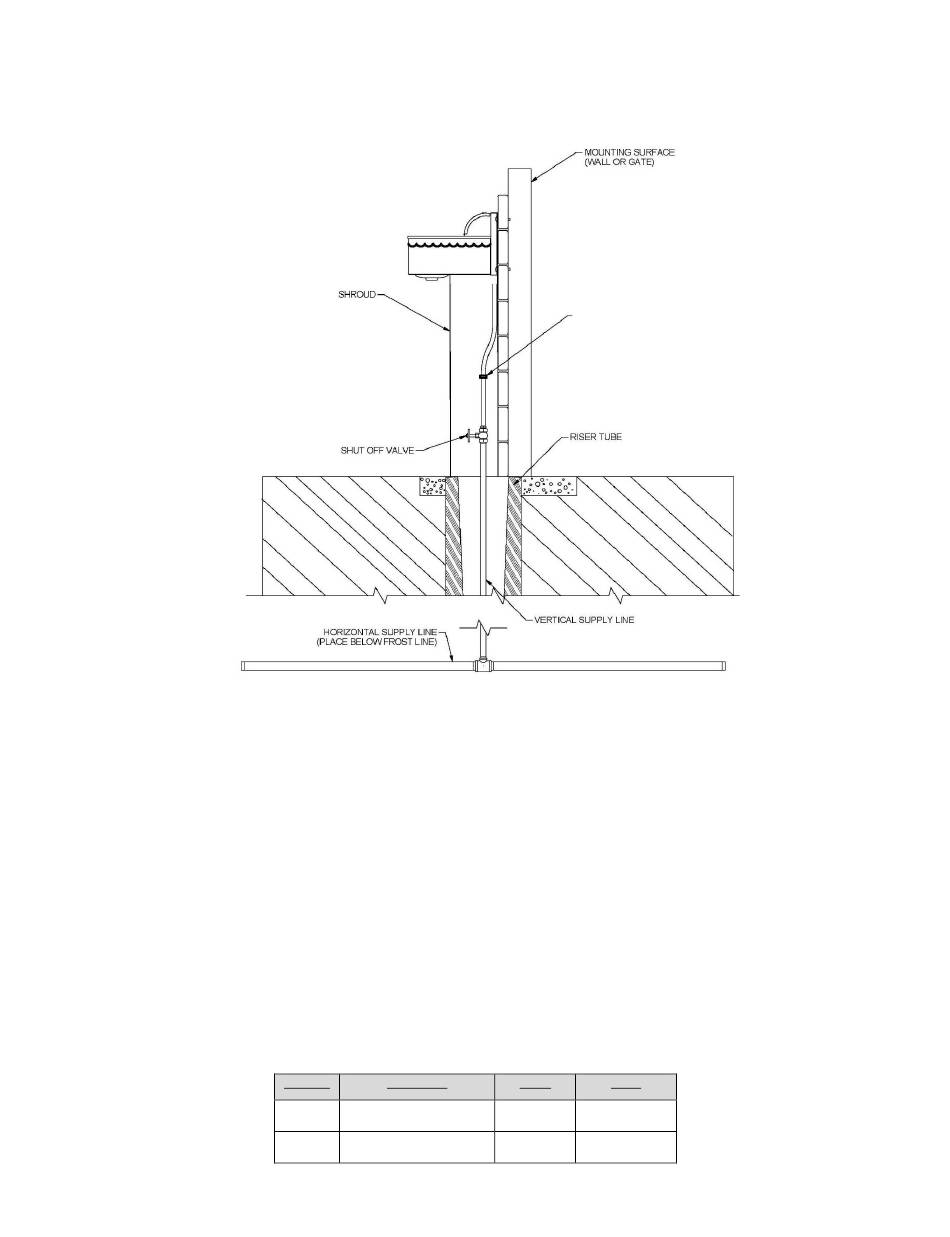

B. Water Supply Line from Underground – Horizontal underground water line should be sized to account for
pressure drop, relating to distance, and placed one foot below frost line. A one-inch vertical supply pipe is
recommended. A shut-off valve should be installed under fountain to allow for easier servicing. For optimum
serviceability, a stop and waste valve can be installed below frost level to drain water when unit is not in use.
Vertical supply line must be centered in riser tube to provide an air space between the line and frozen ground outside
of tube. Flush water supply line thoroughly before connection to fountain. Water supplies with foreign material
such as sand, rust, etc. may require a filter to keep fountain valve working properly. The supply pipe should extend
above the shut-off valve to within 12" of the StallFount 125.
C. Electric Supply – It is generally most cost effective to run your electrical supply line at the same time you are
trenching for your water supply.
StallFount Instruction Manual
StallFount and StallFount 125
Installation Instructions
Item No. Description
18082 StallFount 125
18415 SF 240V 200W
3/8" HOSE BARB FITTING
Watts Amps
173W 1.4A@120V
248W 1A@240V
1
Part # 17747
October 31, 2022
