Summary of Contents for hygolet HYGOFLOW M14A

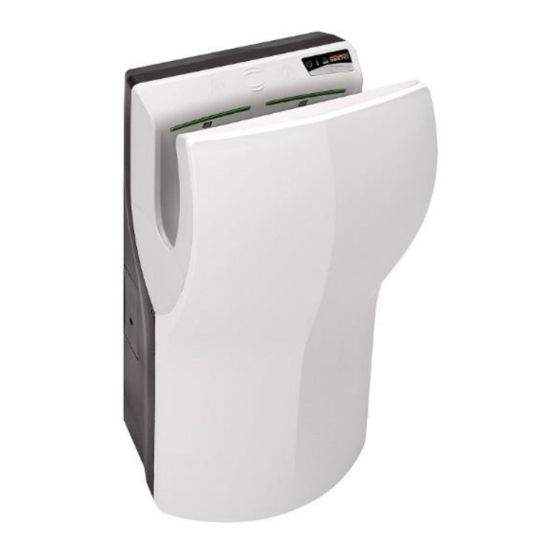

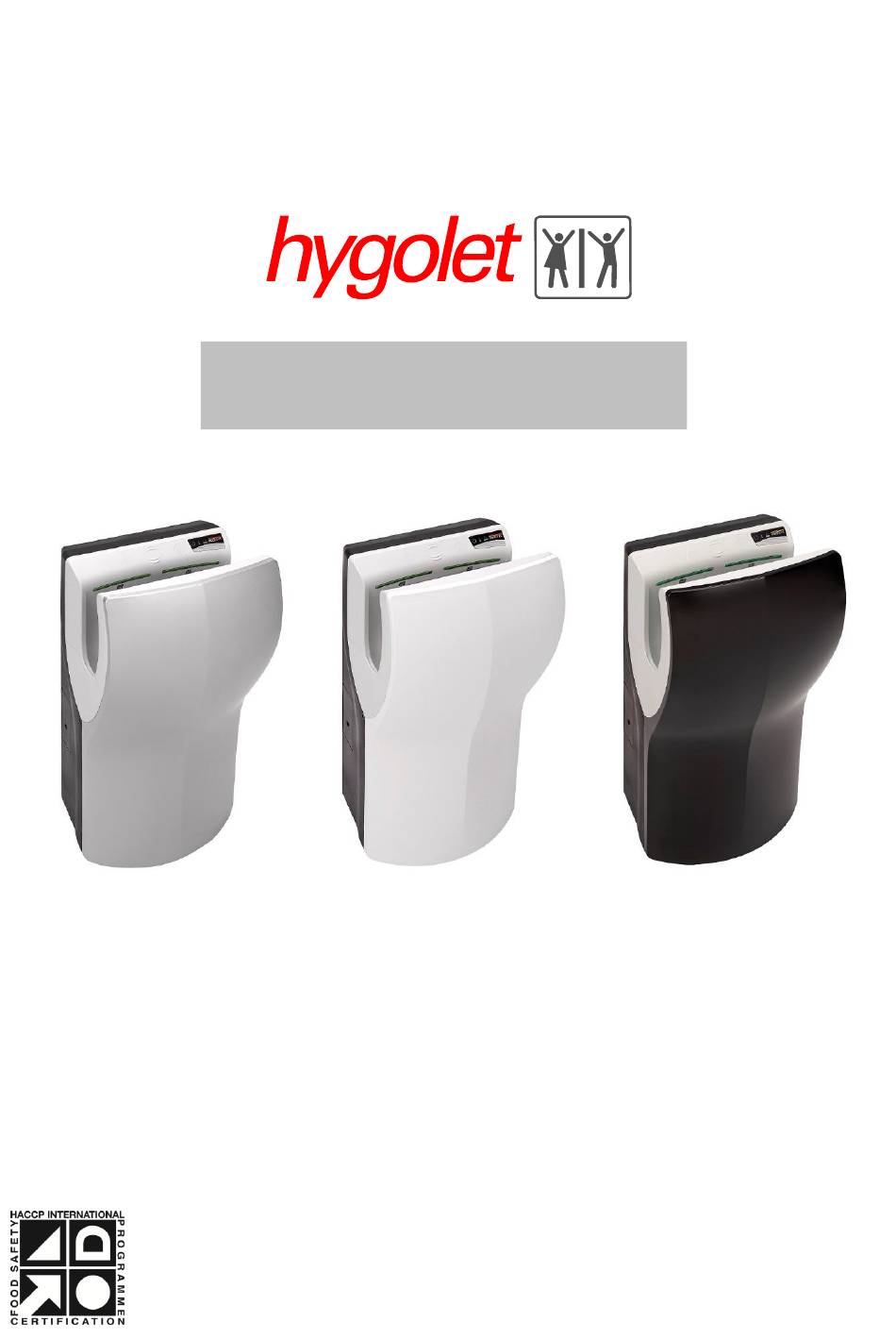

- Page 1 HYGOFLOW HAND DRYERS PART NO. 70.690 INSTALLATION AND OPERATING MANUAL...
- Page 2 ENGLISH SAFETY INSTRUCTIONS Before to carry on any operation, please read carefully and consider the following safety instructions: - Only a qualified technician can install, adjust and maintain this device. All these operations must be always done according to the current legal European Standards of installation and according the local installation regulations as well.
- Page 3 • The lower screw fits safely the appliance to the wall. So, to assemble the hand dryer the following steps must be done: • Installation height must be the showed in the figure:...
- Page 4 OPERATION • Hands must be introduced inside. Hand dryer starts automatically after introducing hands. • Move hands vertically (as shown in Figure) in order to dry them completely. • Green light (in standby state) led on top becomes to orange colour when dryer is in use. •...
- Page 5 Adjust the speed of the motor and heating element. • To adjust the speed of the motor, turn the sensor potentiometer wheel as the picture shows. • This dryer incorporates an internal heater that may be enabled by an ON/OFF switch (see figure).
- Page 6 Water tank. Water from hands drops directly to a removable water tank. When water from the removable water tank reaches the ‘full level’ an acoustic alarm sounds and the blue pilot light bright (see Fig.). In this case, water in the tank must be emptied. Two options to remove the water from the water tank are available: •...
- Page 7 SPARE PARTS Num. Mod. COD. M14A RC9333007SMD M14ACS RC9333013SMD M14AB RC9333007NEGRO M14A / M14ACS / M14AB RC9121017SMD M14A / M14ACS / M14AB RCFILTROHEPA1 M14A / M14ACS / M14AB RC9111003SMD M14A / M14ACS / M14AB RCFILTROHEPA2 M14A / M14ACS / M14AB RCFB001 M14A / M14ACS / M14AB RC9141008SMD...
- Page 8 MODELO MODEL MODÈLE MODELL M14A M14ACS M14AB GENERAL: GENERAL: GÉNÉRAL : ALLGEMEIN: Type of Classe Isolierungskla- Clase de aislamiento: Clase I / Class I / Classe I / Schutzklasse I insulation: d’isolement : sse: ABS pintado ABS pintado negro / ABS blanco / White satinado / Satin Black painted ABS /...
