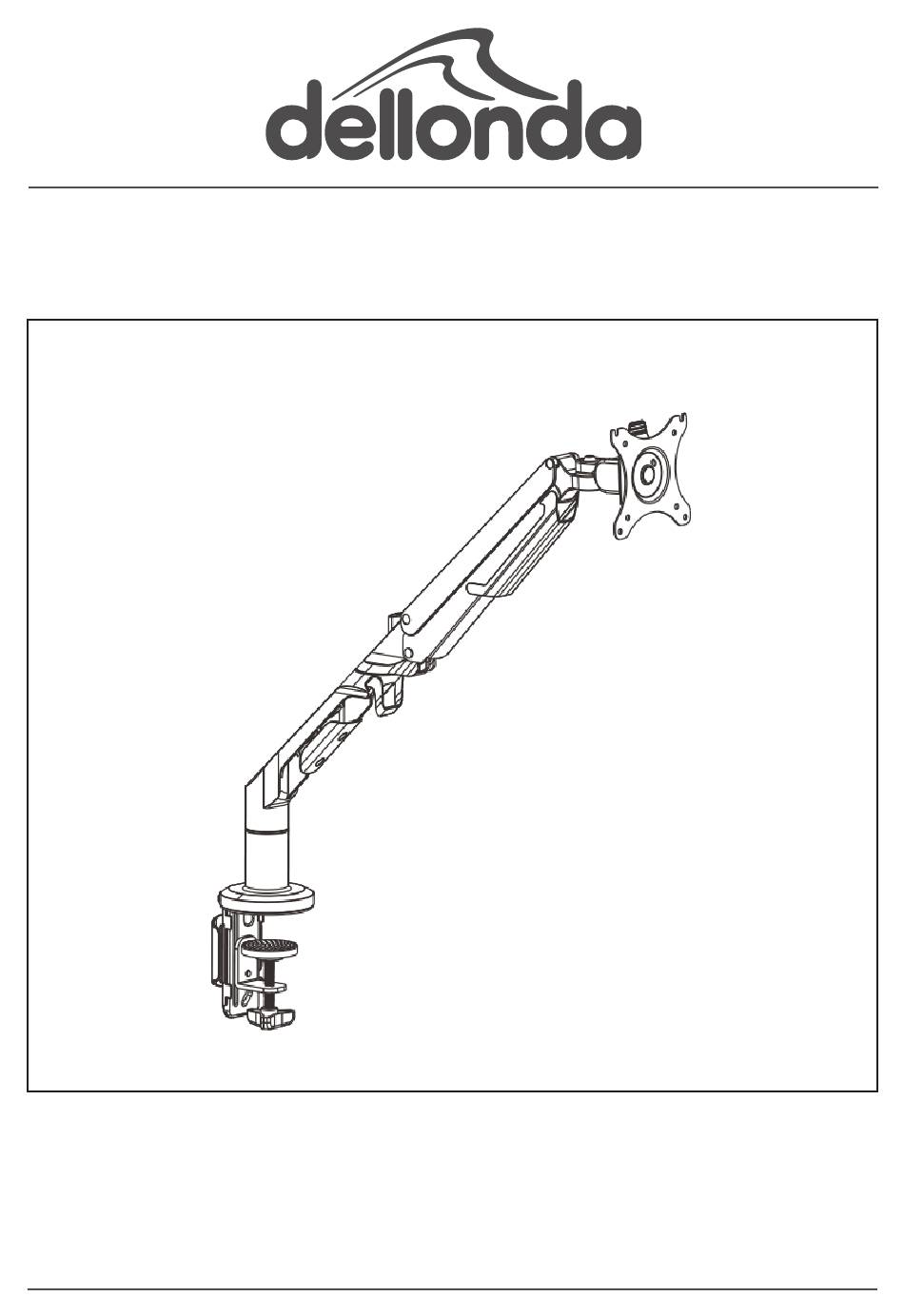

Dellonda Adjustable Single Monitor Arm
Quick Release Vesa Plate For 17-36" Screens
Model No. DH26
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used
according to these instructions, and properly maintained, give you years of trouble free performance.
www.dellonda.co.uk
DH26 Issue:1 20/01/20
Advertisement
Table of Contents
Related Manuals for dellonda DH26
Summary of Contents for dellonda DH26
- Page 1 Quick Release Vesa Plate For 17-36” Screens Model No. DH26 Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance.
- Page 2 Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these instructions safe for future use. Contents www.dellonda.co.uk...
- Page 3 (with the spring) should adjusted properly each month. Preparation Before Assembly • Make sure the VESA holes 100 x 100 mm or fig.2 75 x 75 mm in the monitor (fig.1). • Remove the original fixed base of monitor. www.dellonda.co.uk...
- Page 4 Attaching The Monitor (Fig.5) • Once you have attached the VESA plate to fig.3 the screen (fig.4). Slide the screen into place on the monitor arm making sure not to let the monitor drop onto the desktop. fig.5 www.dellonda.co.uk...
- Page 5 Cord Management • Fig.7 Remove cover from top arm by gently pulling until it comes away. • Fig.6.8 use cable tie to secure cables in the arm. • To remove the cable tidy from the lower arm remove the screw. www.dellonda.co.uk...
- Page 6 (if applicable) into approved containers, in accordance with local waste regulations. Under the Waste Batteries and Accumulators Regulations 2009, Dellonda would like to inform the user that this product contains one or more batteries. It is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice.
