Summary of Contents for TRACTION MPL50-Li
- Page 1 INSTRUCTION MANUAL MPL50-Li Operating Instructions !تحذير! خطر حدوث صدمة كهربائية قد يتسبب اﻻستخدام غير السليم في حدوث إصابات خطيرة أو تلف المواد.لموظفي .المدربين فقط Refer to https://www.tractioncharger.com/ for the latest instructions 5404-MAN-001-EN-01...
- Page 2 ⚠Safety Guidelines General Safety Precautions rechargeable flooded type batteries including maintenance free, low maintenance, or deep- SAVE THESE INSTRUCTIONS. cycle batteries. 1.1. IMPORTANT SAFETY INSTRUCTIONS. IT IS OF WARNING UTMOST IMPORTANCE THAT BEFORE USING Risk of explosive gases. YOUR BATTERY CHARGER, YOU READ THIS MANUAL AND FOLLOW THE SAFETY AND Batteries generate explosive gases during OPERATING INSTRUCTIONS EXACTLY.
- Page 3 1.13. Have a damaged cord or plug replaced 2.7. Be extra cautious to reduce risk of dropping a immediately. metal tool onto the battery. It might spark or short circuit the battery or other electrical part 1.14. Do not expose the unit to rain or snow. Use the that may cause an explosion.
- Page 4 Please follow dealer standards guidelines for or email traction@tractionservice.com connection methods. For repair service, email Traction units are supplied with vehicle specific admin@tractioncharger.com adapters that should be used at all times. or call +44(0)330 022 7822 Failure to use the adapters in the positions...
- Page 5 Symbols Explained: Please refer to these instructions. Ca/Ca Calcium/Calcium battery Ca/Ag Calcium/Silver battery Absorbent Glass Mat Gel maintenance free battery LiFePO4 Lithium Ion Amps Technical Specification Environmental Information Working Temp. °C +0 to +40 Working Humidity 20 – 90% non-condensing Storage Temp.

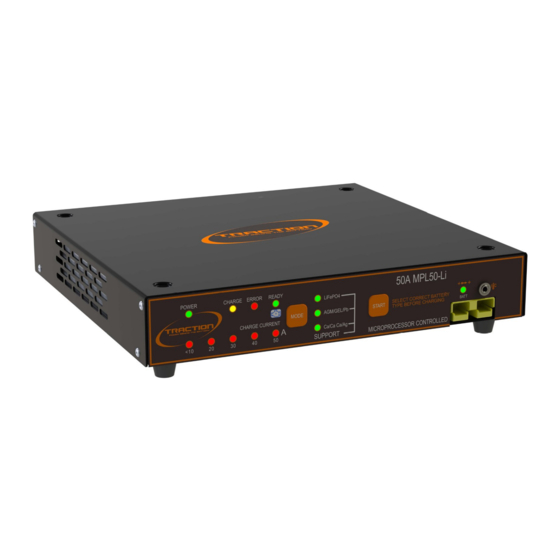

- Page 6 BATTERY CHARGER MODEL MPL50-Li INSTRUCTIONS FOR USE WARNING DO NOT USE THIS BATTERY CHARGER OUTSIDE, FOR INDOOR USE ONLY. DO NOT USE THIS BATTERY CHARGER IF IT BECOMES WET OR IF THE OUTPUT OR INPUT LEADS ARE DAMAGED. DO NOT OBSTRUCT THE VENTILATION SLOTS IN THE CHARGER CABINET.
- Page 7 Battery Charger Temperature Control (optional) The charger can use an external temperature probe for measurement of battery temperature. The charging voltage for Li is 13.6V The charging voltage for Lead is 14.5V Li charging current is profiled to allow safe charging. Charging out of vehicle To select out of vehicle Li battery charging (LiFePO4 and Li-ion): Press the ‘Mode’...
- Page 8 Current indication The ‘CHARGE CURRENT’ lights indicate the battery charging current. Support mode 13.6V Connect to the vehicle battery. Press the ‘Mode’ switch until all ‘Mode’ lights (Li/Pb/AGM) are on. Press the ‘Start’ switch to enable battery support at 13.6V. Pressing ‘Start’ again will turn support mode off. Be aware that automatic battery disconnection is disabled in support mode.
