Summary of Contents for Anova MC52

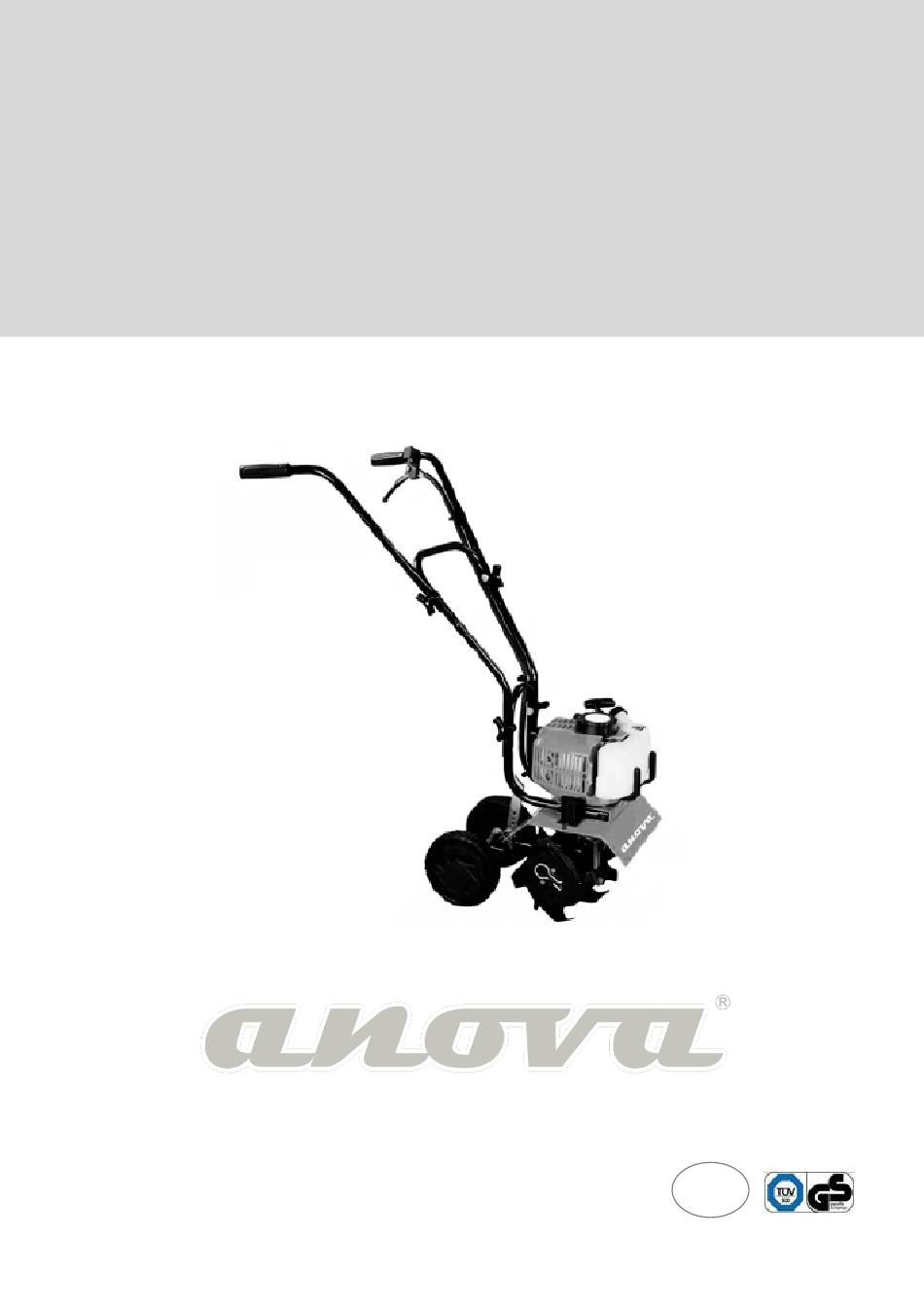

- Page 1 Instructions / User Manual MC52 Millasur, SL. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña - 981 696 465 - www.millasur.com...
- Page 2 ANOVA wishes to congratulate you for choosing one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and to be of great use if used in accordance with the instructions contained in the user manual.
- Page 3 General safety instructions To safeguard the safety of the user and others, please pay attention to the information shown in this manual and on the machine itself. Pay special attention to instructions with the following markings: DANGER: Indicates the possibility of serious personal injury or death if the directions are not followed.
-
Page 4: Table Of Contents
CONTENTS 1. Safety information and warnings 2. Machine data 3. Assembly 4. Commissioning 5. Operation and safety 6. Engine maintenance 7. Motorized tiller maintenance 8. Troubleshooting 9. Warranty 10. Environment 11. Exploded view 12. EC Declaration of Conformity... -
Page 5: Safety Information And Warnings
1. Safety information and warnings Please read Keep other Check that the The engine will Wear blades and safety Keep people away emit a colorless, the user guard panels are goggles and odorless gas that careful from the work manual secure and correctly distance can cause severe... - Page 6 use this machine. Only allow users who understand and follow the safety rules, precautions and user instructions found in this manual to use it. 3. Do not handle or use a power tiller when you are tired, sick or if you are not able to use it.
- Page 7 all necessary precautions to ensure their safety, particularly on slopes, uneven or slippery ground, and loose terrain. 14. When plowing on slopes, keep the fuel tank less than half full to reduce spillage. Make sure you have a firm footing when working on slopes. Work on slopes, never ascending or descending.
-
Page 8: Machine Data
2. Machine data 2.1. Technical specifications MODEL MC52 Displacement 52cc Engine Power 1,2HP Minimum revolutions (r/min) 3100±300min maximum revolutions 6500min electronic ignition diaphragm carburetor centrifugal clutch primer bulb gross weight/net weight 14.5kg/13.3kg Fuel tank capacity Oil tank capacity 80cm3 (0.08L) Pressure level dB(A) (EN 709, EN22868) 82.8... -
Page 9: Assembly
3. Assembly 3.1. Mounting of the blades Attach 2 blades to each side (Fig. A) of reduction shaft and secure with 2 cotter pins (B). Warning: Make sure all 4 blades are mounted in the sliding direction (Fig. 2). Blades 1 and 3 should have the letter "R" and blades 2 and 4 should have the letter "L". -
Page 10: Commissioning
right. Fix it with the screw (E, Fig.12). Warning: When the trigger isloose, there should be no driving force on therotary blade assembly. When the trigger is moved, there should be a driving force on the rotating blade assembly. Roughly adjust the cable tension screw (G) until the trigger begins to stiffen toward the end of the working position. - Page 11 etc. • Store the machine and fuel in an area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, stoves, etc. • Never remove the filler cap with the engine running. • Never use fuel for cleaning operations. •...
- Page 12 4.3. engine oil tank engine oil level Caution: Running the engine with insufficient oil can cause serious engine damage. Be sure to check the engine on a level surface with the engine stopped. 1. Remove the oil filler cap (A, Fig. 25) and check the oil level: It should reach the top of the oil filler neck (B).
- Page 13 4.5. High altitude operation At high altitude, the standard carburetor air-fuel mixture will be excessively rich. Performance will increase and fuel consumption will increase. High altitude performance can be improved by specific modifications to the carburetor. If you always operate the engine at altitudes higher than 1,500m above sea level, ask your nearest official dealer to make these modifications to the carburetor.
-
Page 14: Operation And Safety
If you find yourself in a situation where you are not sure how to proceed, you should consult an expert. Contact your nearest Anova dealer. Avoid any use that you feel is beyond your ability. Warning: Do not use the machine unless you can call for help in the event of an accident. - Page 15 5.1. working with the machine • After starting your machine as instructed in the previous step, accelerate and engage the blades by gently pressing on the handlebars and slowly rocking the machine from left to right and right to left. •...
- Page 16 5.4. Pre-Operation Check Warning: The cutting blades must never idle. Turn the idle speed screw "T" counterclockwise to reduce the idle RPM, or contact an official dealer for adjustment and discontinue use until repair is done. A damaged clutch can cause a cutting attachment toidleand increase the risk of personal injury from loss of control and contact with the cutting tool.
-
Page 17: Engine Maintenance
The muffler and other engine parts (eg cylinder fins, spark plug) become hot during operation and remain hot for a while after the engine is stopped. To reduce the risk of burns, do not touch the muffler or other parts while they are hot. •... -
Page 18: Motorized Tiller Maintenance
• Remove the air cleaner cover (B) by unhooking the top tab (C) at the top of the air cleaner cover and its two lower tabs (D). • Check the air filter (E) every day; change the filter if it is not clean or damaged. - Page 19 To clean: - Let the muffler cool down. - Remove the two (2) baffle screws (A). - Remove the deflector (B, Fig.57) and thespark arrestor(C). - Clean and inspect spark arrestor screen. If the spark arrestor screen is damaged, defective or deteriorated, replace the screen. - Reassemble components in reverse order of disassembly and tighten bolt to 4.9 Nm.
- Page 20 7.3. Maintenance table Prior After each if it is refueling Monthly each damaged necessary stop Inspect (leaks, complete machine cracks and wear) Controls (ignition switch, choke lever, Check operation throttle...) Inspect (leaks, Fuel tank cracks and wear) House 6 Inspect and clean Fuel filter months Replace...
- Page 21 7.4long-term storage: • Clean the machine and remove debris from regular work. • Remove fuel from engine or add fuel stabilizer (see your dealer for more information). • Protect wheel axles from corrosion: coat axles with grease and store machine with axles mounted. •...
-
Page 22: Troubleshooting
Engine starts but does not accelerate properly or does Carburetor requires Contact your nearest Anova dealer. not run properly at high adjustment speed Clean according to the instructions Engine does not reach full... -
Page 23: Environment
with parts that are not original manufacturer parts, use of force, shock and breakage, as well as mischievous overloading of the motor. Warranty replacement only includes defective parts, not complete devices. Warranty repair will be carried out exclusively by authorized dealers or company customer service. In the event of any intervention by unauthorized personnel, the guarantee will be void. -
Page 24: Exploded View
11. Exploded view... -
Page 25: Ec Declaration Of Conformity
In the event that the machine is modified and this modification is not approved by the manufacturer and communicated to the distributor, this declaration will lose its value and validity. Name of the machine: MOTOR HOE Model: MC52 Recognized and approved standard to which it conforms: Directive 2006/42/EC Company seal...
