Studio 300 Assembly

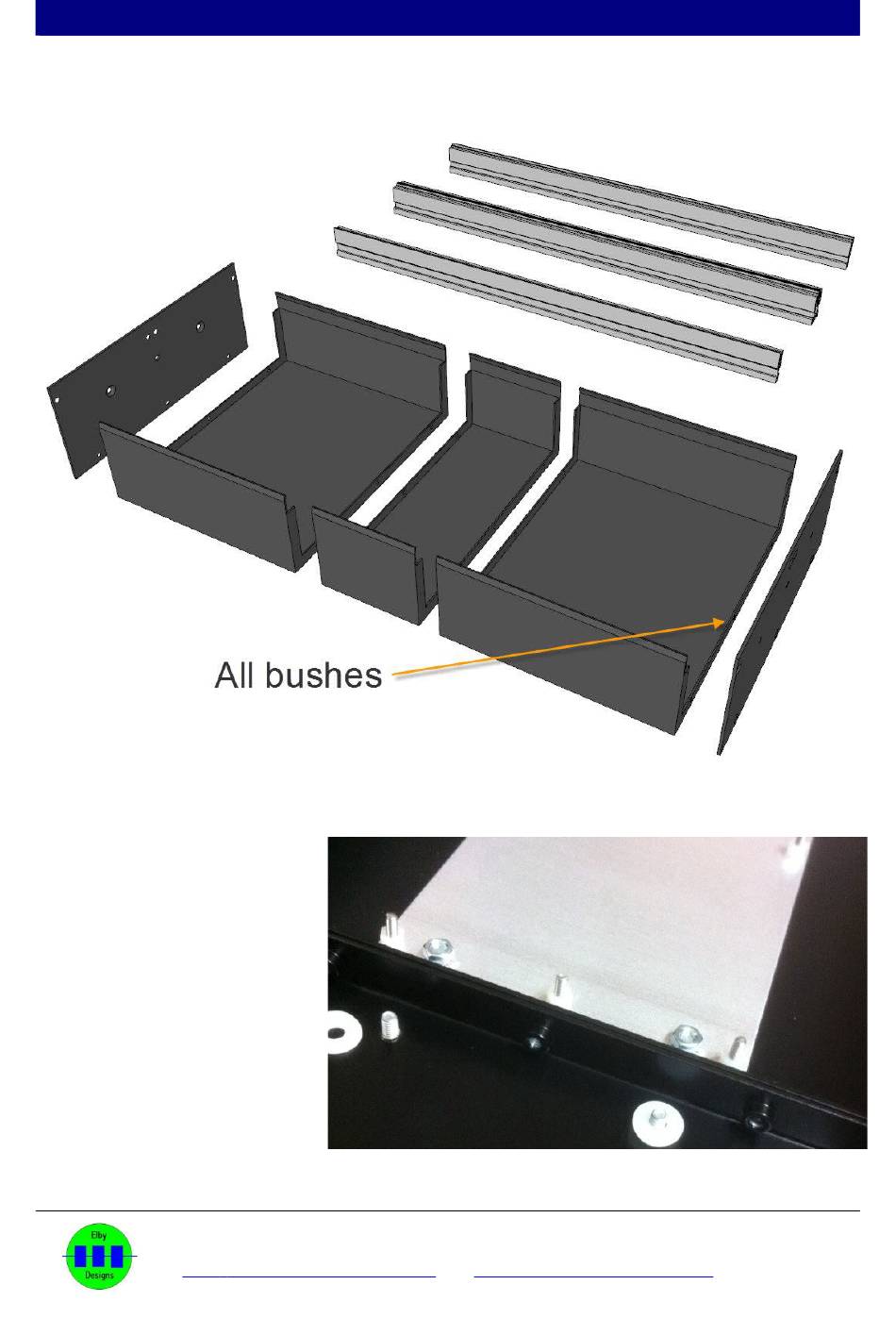

Place all the parts out on a flat surface as shown in Figure 1. Depending on the
configuration you have chosen, you may have more or less Skins (and associated M4
bolts).
Figure 1 – Studio 300 parts laid out
The
Skins
should
all
be
orientated
in
the
same
direction.
Join the Skins together using
M4 pan-head bolts. These
bolts will utilize the holes on
the left-side of the skins
without bushes as shown in
Figure 2.
ELBY Designs - Laurie Biddulph
3 Therese Street, Bripdort, TAS 7262, Australia
elby - designs@ bigpond.com
http://www.elby-designs.com
1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Studio 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Elby Designs Studio 300

  • Page 1 Place all the parts out on a flat surface as shown in Figure 1. Depending on the configuration you have chosen, you may have more or less Skins (and associated M4 bolts). Figure 1 – Studio 300 parts laid out Skins should...
  • Page 2 DC_DISTRIBUTION_SYSTEMS for guidance on this. Continue with the Enclosure assembly ……………… (for clarity the following diagrams do not include the distribution system) ELBY Designs - Laurie Biddulph 3 Therese Street, Bripdort, TAS 7262, Australia elby - designs@ bigpond.com http://www.elby-designs.com 2 of 5...
  • Page 3 Figure 2 – Skins assembled Attach one of the End Plates using M4 countersunk bolts as shown in Figure 3. Figure 3 – End Plate attached ELBY Designs - Laurie Biddulph 3 Therese Street, Bripdort, TAS 7262, Australia elby - designs@ bigpond.com http://www.elby-designs.com...
  • Page 4 Figure 4 - Outer Rails attached Attach the other End Plate but only secure loosely :– Figure 5 – Other End Plate attached (loosely) ELBY Designs - Laurie Biddulph 3 Therese Street, Bripdort, TAS 7262, Australia elby - designs@ bigpond.com http://www.elby-designs.com...
  • Page 5 Note that the End Cheeks have 2 ‘extensions’. These are the ‘feet’ for the assembly and should be orientated furthest away from the Rails.. ELBY Designs - Laurie Biddulph 3 Therese Street, Bripdort, TAS 7262, Australia elby - designs@ bigpond.com http://www.elby-designs.com...
