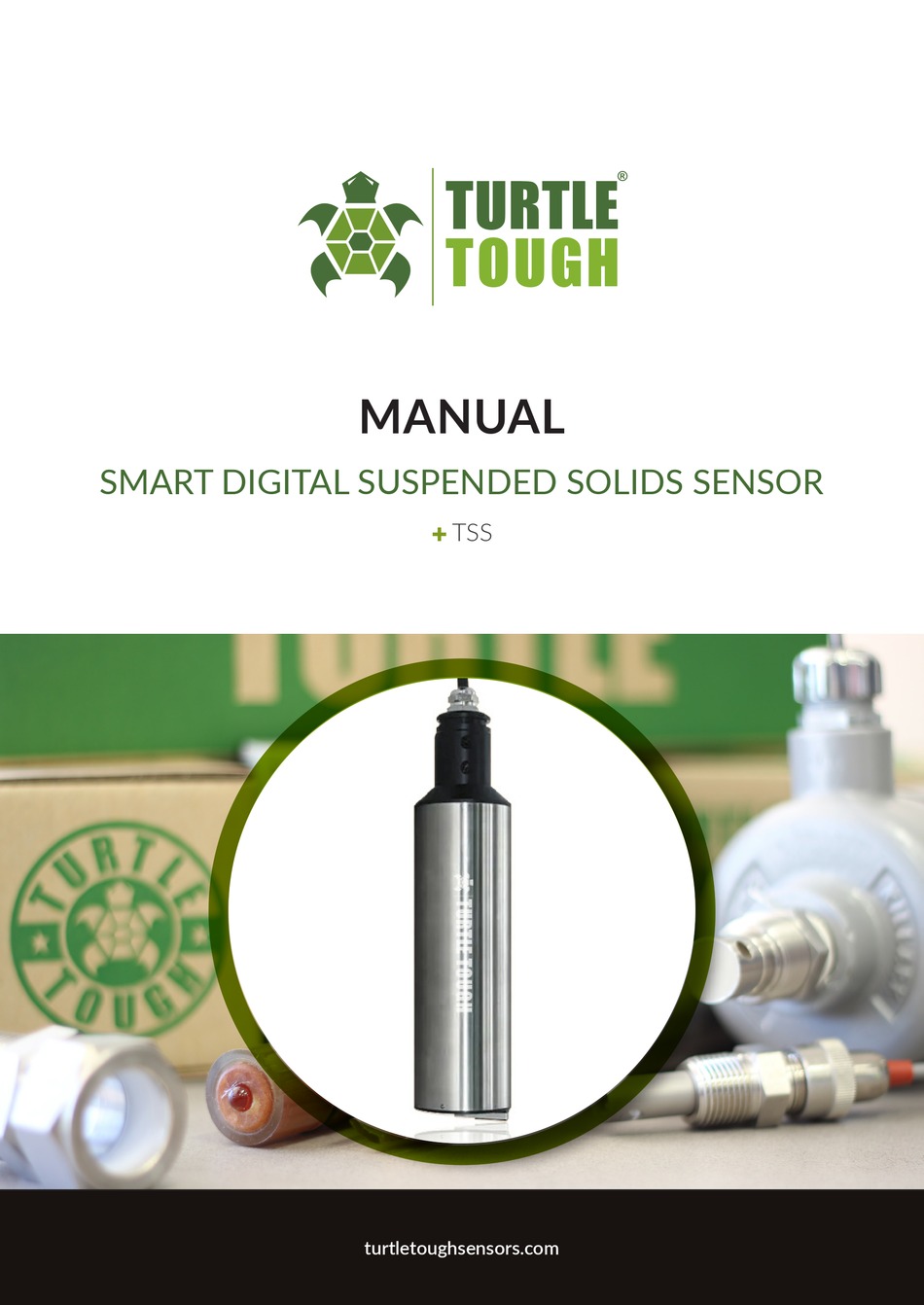

- Page 1 TURTLE ® TOUGH MANUAL SMART DIGITAL SUSPENDED SOLIDS SENSOR turtletoughsensors.com...
-
Page 2: Chapter 1. Introduction

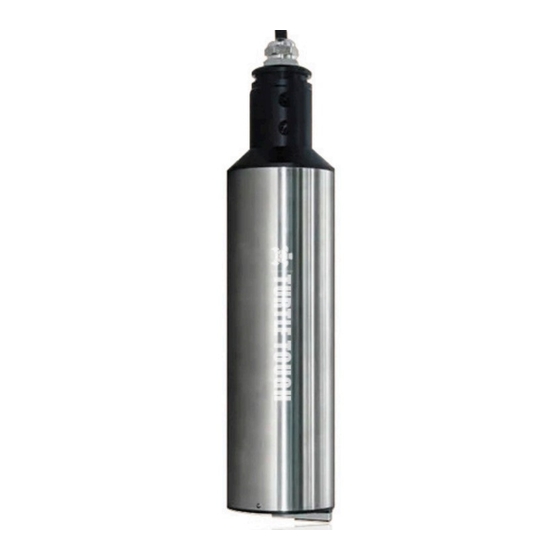

Turtle Tough: Total Suspend Solids Sensor Manual Chapter 1. Introduction 1.1 | Product Overview The digital Total Suspended Solids (TSS) is a used to detect the presence of suspended solid particles in a fluid. The sensor utilises infrared scattered light technology to measure the intensity of scattered light in a solution. - Page 3 Turtle Tough: Total Suspend Solids Sensor Manual 1.3 | Product Dimensions SUS316L/Titanium alloy external dimension Figure 1: Dimensional Diagram of TSS Sensor Chapter 1. Introduction Revised: 7 October 2022...
- Page 4 Turtle Tough: Total Suspend Solids Sensor Manual 1.4 | Sensor Installation Example Methods Figure 2: Quick-Dismantling Pool-side Installation of TSS Sensor Chapter 1. Introduction Revised: 7 October 2022...
- Page 5 Turtle Tough: Total Suspend Solids Sensor Manual Figure 3: Classic Pool-side Installation of TSS Sensor Chapter 1. Introduction Revised: 7 October 2022...
- Page 6 Turtle Tough: Total Suspend Solids Sensor Manual Figure 2: Railing Installation of TSS Sensor Chapter 1. Introduction Revised: 7 October 2022...
-
Page 7: Chapter 2. Digital Operation
Turtle Tough: Total Suspend Solids Sensor Manual Chapter 2. Digital Operation 2.1 | Sensor Connection The Turbidity sensor should be connected using the following terminations: Yellow + Cable Colour Red/Brown Black Blue White Green Signal +12VDC AGND RS485 + RS485 - 2.2 | Modbus Communication Settings... - Page 8 Turtle Tough: Total Suspend Solids Sensor Manual 2.3.1 | Reading Values Using Modbus Poll: The third-party program “Modbus Poll” can be used to diagnose and set up the sensor. It is the simplest method of communication to the Turbidity Sensor and shall be used in this document for demonstration purposes.
- Page 9 Turtle Tough: Total Suspend Solids Sensor Manual 2.3.3 | Writing a 16-bit integer using Modbus Poll 1) In Modbus Poll, press the “06” button in the header menu. 2) In the menu enter the following parameters: Slave ID: 1 (or the node address of your sensor) •...
- Page 10 Turtle Tough: Total Suspend Solids Sensor Manual 2.4 | Modbus Register Table Register Address Read / Data Range Unit Description Name Write Type Stores the currently read TSS Value Read IEEE754 0~50000 TSS value. 15/ 30/ 60/ 240/ 720/ The amount of time...
-
Page 11: Chapter 3. Calibration
Turtle Tough: Total Suspend Solids Sensor Manual Chapter 3. Calibration Notes: 1. Ensure that the probe lens is 15cm away from the bottom of the container during calibration. 2. Ensure that there are no air bubbles at the front end of the lens during calibration. - Page 12 Turtle Tough: Total Suspend Solids Sensor Manual 3.2 | Multi-Point Calibration In situations where increased levels of accuracy are needed, a multi-point calibration can be performed. The method to perform this calibration is: 1) Connect the sensor to a PC and set up Modbus Poll (as explained above) 2) Enter 2-point calibration mode by writing 2 to address 27 OR enter 4-point calibration mode by writing 3 to address 27.
-
Page 13: Chapter 4. Maintenance
Turtle Tough: Total Suspend Solids Sensor Manual Chapter 4. Maintenance To get the most accurate measurement results the sensor must undergo regular maintenance including sensor cleaning and inspection for damage. 4.1 | Sensor Cleaning Two lenses on the sensor need to be cleaned. Please perform regular cleaning and maintenance according to the actual use to ensure the accuracy of the measurement. - Page 14 Turtle Tough: Total Suspend Solids Sensor Manual when powered incorrectly or improperly installed. Sensors containing internal electronic boards undergo additional quality checks prior to shipment to ensure that components are 100% operational upon delivery. Ground loop and 3rd party hardware problems (including but not limited to power supplies) may also cause blown electronics or damage to the sensor components and as such faulty installations are not covered by warranty.
-
Page 15: Chapter 5. Warranty, Return Goods & Support
5.3 | Shelf-Life Warranty The standard shelf life for a Turtle Tough sensor is one year from the date of shipment. Sensors stored longer than this period may still be functional but are no longer under warranty. Sensors should be stored in a cool, dry location with the sensor tip (where the pH/ORP element is located) oriented toward the ground.
