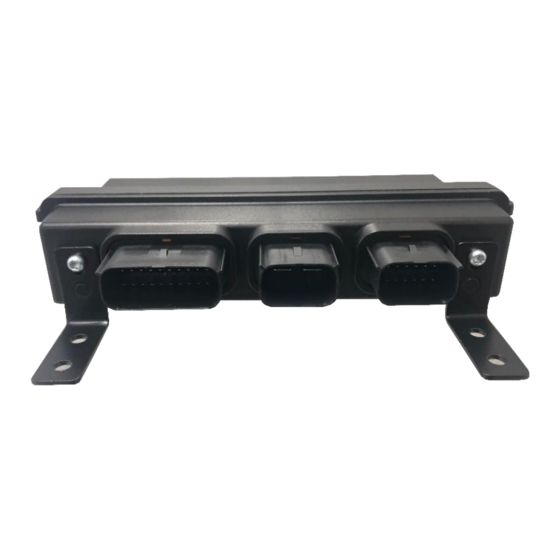

8812 Module
Cover Control Module
1. Product Description:
The cover control module (8812) is specifically designed to work with VOXX's DS4 and DS4+ product line up. This
a tonneau cover system for pickup trucks.
module will be used to control
The purpose of this module is to provide a safe and secure environment for valuables in a pickup truck
bed while offering easy access to the pickup bed's contents with a click of a button or using a smartphone.
The tonneau cover can be extended or retracted with the push of a button from a keypad or a capacitive
touch both using BLE technology, and from the OEM key FOB. The system controls and monitors two
motors to open and close the cover, and to stop if an object is pinched. This system includes, but out of
scope from
, aluminum slats mounted on ball-bearing slides located within a patented track
VOXX Electronics
system from Truck-Hero that ensures smooth operation.
2. Cover Control Module Wiring Connections

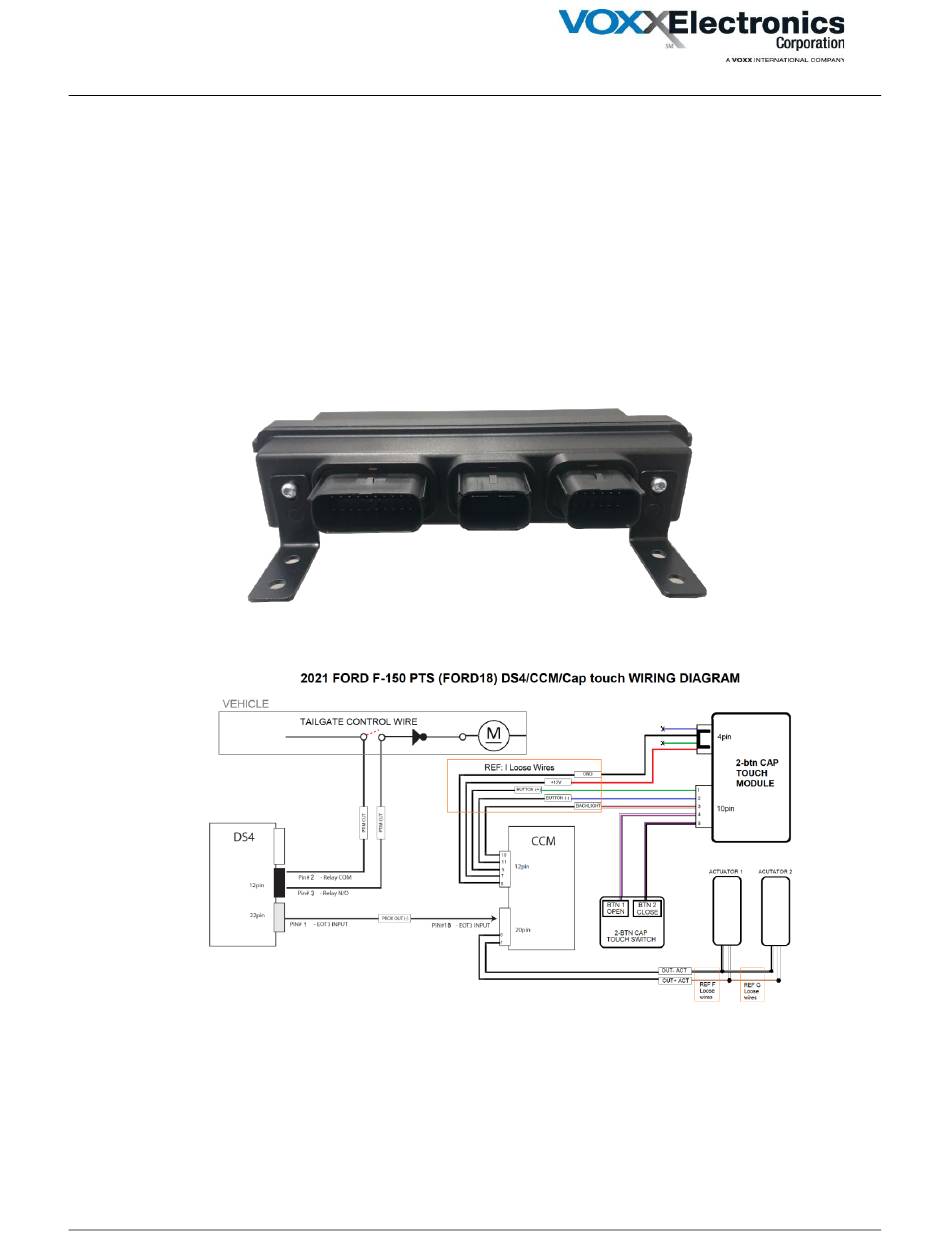

Figure 1: Cover Control Module System Diagram
Cover Control Module Owner's Manual (R1.00)
PAGE-1
Advertisement
Table of Contents
Summary of Contents for Voxx 8812
- Page 1 8812 Module Cover Control Module 1. Product Description: The cover control module (8812) is specifically designed to work with VOXX’s DS4 and DS4+ product line up. This a tonneau cover system for pickup trucks. module will be used to control The purpose of this module is to provide a safe and secure environment for valuables in a pickup truck bed while offering easy access to the pickup bed’s contents with a click of a button or using a smartphone.
- Page 2 8812 Module Cover Control Module Figure 2: Cover Control Module Harness Layout 3. Cover Control Module system components Item Component DS4+ Module CCM (Cover Control Module) Mobile APP 5-Button Bluetooth Keypad Retract Motors (2x) 2-Button Capacitive Front Panel Actuation 4. Cover Control Module major feature lists...
- Page 3 8812 Module Cover Control Module 5. Cover Control Module mounting location 6. Operations A) Calibration process: Description: A calibration process must be completed during the installation to ensure that the system can properly detect the end points. Steps: 1. Send 3x RKE Unlock with normal press (like 3x Lock start press). The bed cover should move to fully open at a slow speed.
- Page 4 To satisfy FCC RF exposure compliance requirements, the device and its antenna must maintain a separation distance of 20 cm or more from the person’s body, except for the hand and wrists, to satisfy RF exposure compliance. WARNING! Changes or modifications not expressly approved by VOXX Electronics. could avoid user's authority to operate the equipment.
- Page 5 This warranty gives you specific legal rights and you may also have other rights that vary from State to State. VOXX Electronics does not and has not authorized any person or entity to create for it any other obligation, promise, duty or obligation in connection with this Part.
- Page 6 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2.
