Summary of Contents for Woodway ProSmart

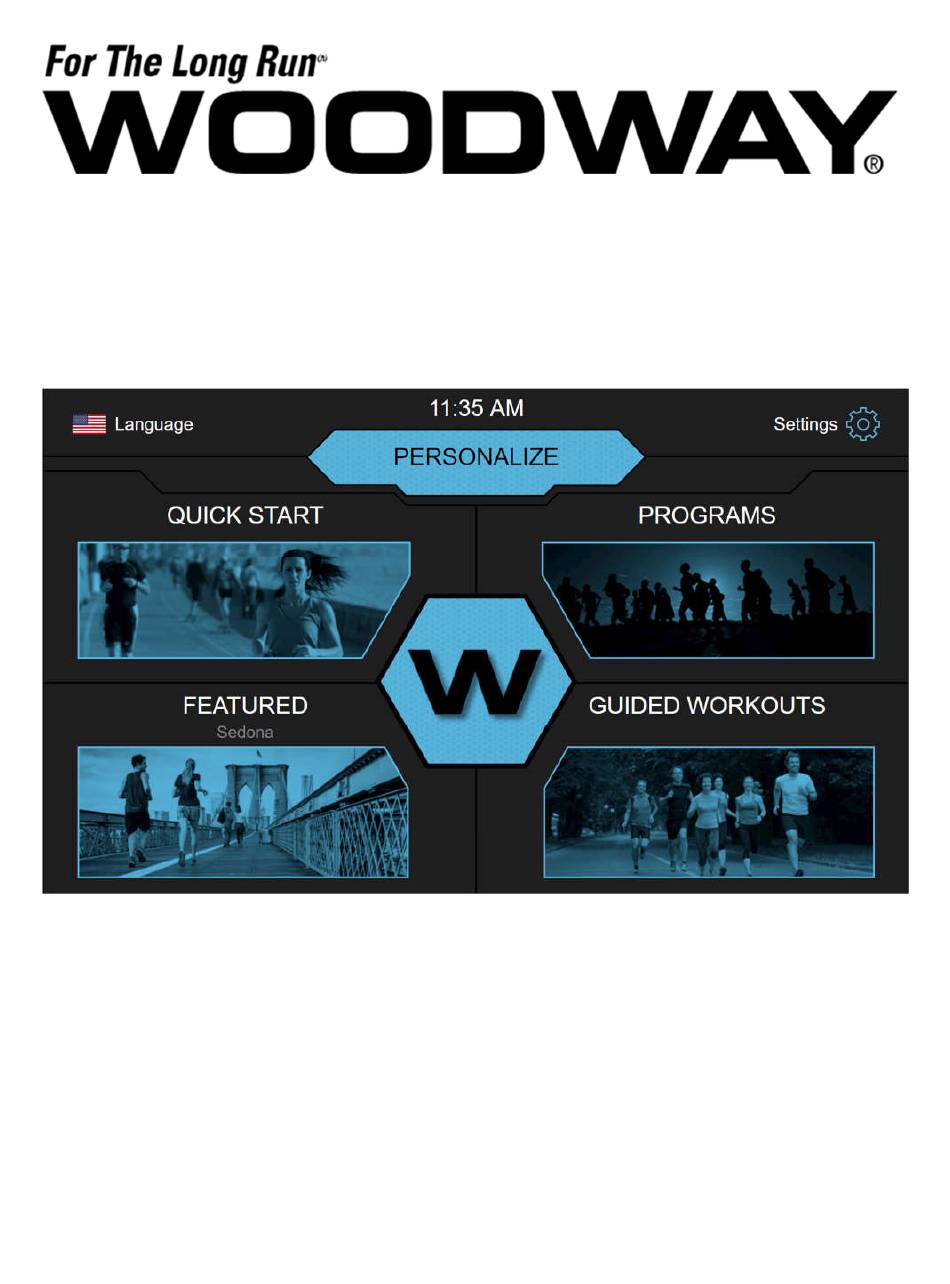

- Page 1 ProSmart Console User Manual: 07/2017, UM-PS-EN-00...
- Page 2 European Representative Manufacturer WOODWAY GmbH WOODWAYS USA, Inc. Steinackerstr. 20 W229 N591 Foster Ct. 7976 Weil am Rhein Waukesha, WI 53186 Germany Tel.: +49 (0) 7621-940-999-0 Tel.: 1-262-548-6235 Fax.: +49 (0) 7621-940-999-40 Fax.: 1-262-522-6235 Web: www.WOODWAY.de Web: www.WOODWAY.com U M - P S - E N - 0 0...
- Page 3 In 1975, WOODWAY GMBH was founded in Weil am Rhein, Germany. The name “WOODWAY” is derived from the German “wald weg” or “way of the woods” – the feel of running on a soft pine needle covered path in the forest.
-
Page 4: Table Of Contents
Table of Contents Product Summary & Overview ......................... 7 Safety ..................................8 Description of Warning Notes .......................... 8 Sample of Warning Notice ........................8 Classification ..............................8 Description of Terminology ........................9 Limitation of Liability ..........................10 Copyright ..............................10 Replacement Parts ............................. - Page 5 Experimental Settings ........................39 Accessing Web Interface ..........................40 Summary ............................... 40 Network Basic Overview .......................... 40 Connecting a ProSmart to a Network ....................41 Wired Network Settings ......................... 42 Wireless Network Settings ......................43 Auto Update ............................44 Accessing the Web Interface ......................... 45 Putting the Update on the Flash Drive ....................
- Page 6 HDHomerun Setup ........................... 66 Scanning for Channels ........................67 Setting Up an IPTV Solution ........................68 Setting Up TV on a ProSmart ........................ 68 Adding Channels Using SiliconDust ..................68 Adding Channels Using USB Tuner.................... 70 Adding Channels Using IPTV ......................72 Watching TV on the ProSmart ......................
-
Page 7: Product Summary & Overview
Product Summary & Overview Woodway USA Inc. is proud to present the newest innovation in cardio fitness: the ProSmart Touchscreen Display. The ProSmart Touchscreen is a one-of-a-kind display that personalizes every aspect of the user’s experience: User Profiles, Guided Progressions, Real/Game Runs, streaming TV and the ability to customize the UI theme. -
Page 8: Safety
Safety For treadmill safety instructions, see official treadmill user manual. Description of Warning Notes Warning notices indicate potential hazards or safety risks. They are indicated in this manual by a color-coded signal word panel (symbol with the appropriate signal word). All warning notices have the same design and the same standardized content design. -
Page 9: Description Of Terminology
Description of Terminology Press Press means that the function can be used on the touch screen module. It will be followed by the name of the button to be pressed in blue. Example: Press Select to… Click Click action required the use of a computer through remote access. It will be followed by the name of the button to be clicked in blue. -
Page 10: Limitation Of Liability
Use of replacement parts which were not approved by WOODWAY Unauthorized modifications to the device or accessories WOODWAY general terms and conditions and delivery conditions apply, as well as the legal regulations valid at the time of contract conclusion. Copyright The release of the operating instructions to third parties without the written permission of WOODWAY is prohibited. -
Page 11: Customer Service
Customer Service For service questions contact the following: WOODWAY USA, Inc. W229 N591 Foster Ct. Waukesha, WI 53186 Tel: 1 (262) 548-6235 Fax: 1 (262) 522-6235 Email: service@woodway.com Web: www.woodway.com For faster processing of your request, please have the following data and information available: ... -
Page 12: Basic Installation
1. Switch the treadmill on. Note: The switch is located on the treadmill base on its front-right side on the AC bracket. 2. Wait for the Woodway loading page to complete and the display screen to open the home page. -
Page 13: Wired Connection
Wired Connection For a wired connection, be sure the treadmill has direct access to an Ethernet cable. 1. Plug the Ethernet cable into the Ethernet port location on the same bracket as the ON/OFF switch. 2. Open Settings. 3. Open the Network tab in the Settings page. -
Page 14: Wireless Connection
Wireless Connection 1. Open Settings. 2. Open the Network tab in the settings page. 3. Change the Connection type to Wireless. 4. Enter Wi-Fi address into Access Point and the password into Key. NOTE If the access point is hidden toggle the Hidden SSID button. 5. -
Page 15: Display Elements
Display Elements Quick Start Dashboard This is the main workout dashboard. Each element (Grade, Speed, Duration, Distance) can be selected and expanded in a flyout tab listing more information. Workout tabs can be seen in the bottom left-hand corner of the screen. These are used to navigate the workout options. Controls and Stop in the lower right-hand corner of the display screen allow you to stop the workout at any time or adjust the speed and incline manually. - Page 16 Watts Per Minute: Measures the energy used in the workout. The flyout tab lists watts per minute in Watts and Mets. Speed: The speed in which the user is going measured in miles per hour. The speed flyout calculates the peak and average speed achieved during the duration of the workout.
-
Page 17: Controls
Controls The Controls display manages the user’s workout. The arrows allow the user to adjust the incline and speed elements of the workout from the touchscreen. Dynamic Start: Dynamic Start allows manual belt movement at 0.0mph for the user to immediately begin their workout at their own desired pace. -
Page 18: Entertainment Select
Entertainment Select Real The user can select to view their workout in Entertainment Select Entertainment View. Game Run Dashboards , and are virtual screens able to be viewed in Entertainment Select and Entertainment View. From any of these runs, the featured option may also be chosen. From the main dashboard, users can navigate Workout tabs from the default Dashboard tab to... -
Page 19: Programs
From the Home Page, the Programs tab can be selected to open the pre-loaded programs installed on the ProSmart. The Program select tab prompts the user to choose between any of the loaded programs. The following tabs along the bottom ribbon, (Dashboard, Entertainment Select, and Entertainment View) are different views enabled when you select a program to begin. -
Page 20: Featured
Featured The Featured workout will begin the workout automatically based on the programmed settings in that specific workout. The user may adjust these settings through the control tab in the bottom right-hand of the screen once the program launches. Tap anywhere on the screen to view the workout tabs. -
Page 21: Create A Profile
Create A Profile Personalize 1. Press Personalize. 2. Press Register. 3. Enter a mobile phone number: Note: Use 10 digit for US (##########). Use E164 formatted for international (ex: +############) 4. Press Next. 21 | U M - P S - E N - 0 0... - Page 22 5. Enter the verification sent to the mobile number. Note: Press Resend if a verification code is not sent to the mobile device. 6. Press Next. 7. Enter user profile information. 8. Modify personal presets. 22 | U M - P S - E N - 0 0...
- Page 23 Logout to logout a user profile. By logging in a profile allows the ProSmart software to track personal workouts. For the current build, this includes lifetime stats such as total distance, duration, and elevation. It also includes modifying workouts based around the user’s Max Run and Walk speeds set in the profile.
-
Page 24: Guided Workouts
Guided Workouts Launch Guided Workouts by tapping the program on the bottom right-hand of the screen. These workouts are intended to guide a user through a personalized workout program that will track progress and stats for each workout. Once logged in, guided workouts will track progress for that individual user. -
Page 25: Settings
Advanced Settings: (Password 8020) 24h Format: Press the toggle switch to use 24h time format on the ProSmart. 25 | U M - P S - E N - 0 0... -
Page 26: Workout
Workout Reload Programs: Press Reload reactivate removed programs to the treadmill’s program queue. Upload Programs: Click Choose File manually select and add programs via the web interface. Delete Programs: Press Delete… customize the program list and delete any preexisting programs. Guest Featured: Press Select to set... - Page 27 User Interface (UI) is the interaction between the user and ProSmart treadmill. These settings are customizable by the user to improve the user’s experience with the ProSmart. WARNING These settings may alter to performance and default appearance of the treadmill. Proceed with caution.
-
Page 28: Screen
Screen Enable Screensaver: Use the toggle switch to allow a screensaver to appear after a certain time of inactivity. Upload Screensavers: Click Choose Files to browse screensavers from a USB upload. See Section 7 for more details. Delete Screensavers: Press Delete remove screensavers on file. -
Page 29: Network
Network Connection: The type of internet connection the treadmill is using. Address Type: Set the machine’s address type to dynamic host configuration protocol (DHCP) or Static. DHCP automatically receives an IP address. Static requires manual input. IP Address: The treadmill’s address on the network. - Page 30 SiliconDust IP: The IP address of the SiliconDust tuner. SiliconDust Channels: Press Refresh update the channel list from the SiliconDust tuner. Press Add All to add all channels from the SiliconDust channel list. USB Tuner Channels: Press Rescan update the channel list from the USB tuner. Press Add All to add all channels from the...
- Page 31 Client Build: Current client software revision date. Server Build: Current server software revision date. OS Build: Current operating system software revision date. Uptime: Amount of time the treadmill has been powered on since last restart. Update via Internet: Press Update to check for updates via the internet.
-
Page 32: Device
Device Serial: The serial number of the treadmill. Model: The Woodway treadmill model. Manufactured On: Manufacturing date. Reboot Device: Press Reboot to restart your device for a reboot or setting change. Min Speed: Treadmill’s minimum speed Max Speed: Treadmill’s maximum speed Min Incline: Treadmill’s minimum incline... -
Page 33: Workout
Allow Decline: Enables the treadmill to move to a negative grade. Negative grade option is not standard, must be purchased through Woodway. Zero Crossing Delay: Set time in seconds that the speed or grade buttons must be held before the treadmill will move into reverse or negative decline. - Page 34 Enable Dashboard Popups: Press toggle switch to enable Entertainment View drop down popups Enable Workout Tabs: Press toggle switch to enable workout tabs on the dashboard. Enable Quick Keys: Press toggle switch to enable the quick keys on the top of the dashboard.
- Page 35 Allow Guest Workout: Press toggle switch to allow users to use treadmill without logging in. Program Select Timeout: Set time, in seconds, of inactivity before returning to the main screen from program select. Wait for Controls on Quick Start: Press toggle switch to wait for speed or grade adjustment before beginning workout time.
-
Page 36: Files
Files Upload File: Click Choose File to browse for additional files to upload. Delete Files: Press Delete to view installed files to delete from the device. Upload Custom View: Click Choose File browse for additional custom view files to upload. Delete Custom View: Select Delete browse uploaded custom views to remove... -
Page 37: Asset Management
Asset Management Enable Asset Management: Press the toggle switch to enable asset management using a third-party platform. Username: Set a desired username for the asset management platform. Password: Set a desired password for the asset management platform. Asset Company: Select third-party compatible platform. - Page 38 Auto Update Inactive Time: Set time, in seconds, of inactivity before the treadmill automatically updates. Backup Configuration: Click Backup manually backup the treadmill. When selected, remote access will automatically download a zip file to the device. This zip file contains restore configuration settings. Save the zip file to a file location to use in the restore configuration.
-
Page 39: Experimental Settings
RGB color code of the desired neutral dim color. Default: #58595B Warning! DO NOT alter these settings as they will cause serious issues with the operation of the ProSmart. 39 | U M - P S - E N - 0 0... -
Page 40: Accessing Web Interface
Accessing Web Interface Summary One of the best features of the ProSmart console is the web access. If the treadmill is connected to private use or club network, it can be accessed using a computer that is on the same network. -
Page 41: Connecting A Prosmart To A Network
Connecting a ProSmart to a Network Go to Settings (Password is 8020). Select the Network tab. If using wired network connection, see Section 0 If using wireless network connection, see Section 6.3.2 41 | U M - P S - E N - 0 0... -
Page 42: Wired Network Settings
Wired Network Settings Woodway recommends wired networks when using the ProSmart console. Performance and reliability of a wired network is better than a wireless one. To use a wired network first make sure the treadmill has an Ethernet cable going to the Ethernet port in the front right of the treadmill. -
Page 43: Wireless Network Settings
Wireless Network Settings If using the TV option a wireless network connection will not work. A wireless network will add significant latency leading to very poor performance. NOTE Address Type By default the will be DHCP. DHCP means that the network equipment will assign an IP address to the treadmill. -
Page 44: Auto Update
If the treadmill does not resolve an IP Address, contact the network administrator, or call WOODWAY Customer Service. Auto Update The ProSmart can check for software updates automatically at a set time daily. To enable this feature: 1. Open Settings. -
Page 45: Accessing The Web Interface
Accessing the Web Interface Once the treadmill is set up on the network, the web interface can be accessed via web browser. Google Chrome is the recommended web browser to ensure optimum performance. Locate the IP address in Settings on the Network tab. Go to the web browser on a computer. Type the following into the address bar: XXX.XXX.XXX.XXX:5678 (Where X is the IP Address) This allows the web browser to connect to the treadmill at the IP address using Port 5678. -
Page 46: Putting The Update On The Flash Drive
Putting the Update on the Flash Drive 1. Open Downloads folder in My Computer. Note: From Step 1, a folder downloaded called “offline.zip” 2. Right click on Offline.zip 3. Select Extract All... 4. Select the browse button. 5. Select the flash drive formatted to OFFLINE in Step 2. Note: This will extract a folder named OFFLINE to the flash drive. - Page 47 6. Select the OFFLINE folder on the flash drive. 7. Copy and paste the two files from the OFFLINE folder to the root of the flash drive. 8. After moving the files to the root of the flash drive, delete the OFFLINE folder. Note: The flash drive structure should look like the following screenshot: 47 | U M - P S - E N - 0 0...
-
Page 48: Removing The Front Usb Port
Removing the Front USB Port 1. Remove the two screws from the front panel. 2. Carefully pull the cable through the hole. There should be a USB extension cable zip tied to the back of the charging port. 48 | U M - P S - E N - 0 0... - Page 49 3. If there is a USB extension cable, skip to Section 6.7 4. If not, continue to Section 6.6.1 49 | U M - P S - E N - 0 0...
-
Page 50: Removing The Back Of The Head Unit
Removing the Back of the Head Unit 1. Remove the back of the touchscreen head to plug into the tablet. There are 7 screws (labeled with blue arrows) to remove. 2. Plug in USB stick with OFFLINE files to open port. WARNING DO NOT REMOVE THE WHITE SAMSUNG FLASH DRIVE SHOWN BELOW 50 |... -
Page 51: Plug Your Usb Into The Port
Starting the Offline Update NOTE THE TREADMILL MUST REMAIN POWERED THROUGHOUT THE UPDATE PROCESS. LOSS OF POWER MAY BRICK THE MACHINE. 1. Select Settings from the home screen on the ProSmart Touchscreen. The password is 8020. 2. Choose from the tabs on the bottom on the settings screen. - Page 52 5. When the treadmill has restarted and the home screen is displayed, it is safe to remove the flash drive and close any open connectors. 52 | U M - P S - E N - 0 0...
-
Page 53: Upload A Screensaver
4. The file will automatically sync and save to the ProSmart. Files formats for screensavers include: JPG, PNG, GIF, and MP4. Screensaver images do not have a size restriction, but files 4MB or smaller are recommended for quick upload to the ProSmart. 53 |... -
Page 54: Prosmart Configuration Backup
ProSmart Configuration Backup Configuration backup guides the user to download a zip file to use as restore property to the ProSmart. This ensures the use and function of the ProSmart, backing up the data stored on the treadmill. Configuration Backup Creating a backup configuration requires the use of the web interface which can be enabled via tab. -
Page 55: Restoring Configuration
Restore Configuration. 7. Click Choose file. 8. Navigate to a valid ProSmart backup file. Note: If the file is valid the Restore button will become active. 9. Click Restore. 55 | U M - P S - E N - 0 0... -
Page 56: Writing Your Own Workouts
Note that the Phase tag must be ended in the correct order or this XML statement will fail. All workouts on your ProSmart are built using this structure and with a little practice you will be building workouts in no time at all. -
Page 57: Program Header
<Challenge>Difficult</Challenge> DIFFICULT THIS SHOULD ALWAYS SAY <Thumbnail>Woodway</Thumbnail> WOODWAY THIS SHOULD ALWAYS SAY By default, there is a 3-minute warm up and cooldown added to every workout. The flags tag is used if you want to add a warm up and cooldown manually. -
Page 58: Workout Tags
Workout Tags There are different ways of phasing the workouts. The most common and basic workout uses speed and incline phases and is surrounded by <Workout> tags. Each phase can have a different <Mode>. The <Mode> can include Distance or Time. Distance Mode The following is a sample Distance phase from the Marine Workout. -
Page 59: Heart Rate Mode
This phase example uses heart rate for the phase. This mode will adjust the treadmill speed in small steps to reach the goal Heart Rate. Notice there is no <Goal> in this mode. The ProSmart software recognizes Heart Rate mode with the <Type> tag. The <Flags> tag should be noted always as <Flags>SmallStepsOnly</Flags>... -
Page 60: Loop Mode
Loop Mode <Loop> and <Count> tags allow for alternating code phases used to create intervals used in interval program training. The example code will loop MyIntervalLoop 10 times before stopping. <Loop> <Name>MyIntervalLoop</Name> <Count>10</Count> <Phase> <Name> Walk</Name> <Type>Goal</Type> <Mode>Time</Mode> <Speed> <Target>{Profile.WalkMax} * 0.95</Target> </Speed>... -
Page 61: Full Example
Full Example The following workout is a full program using the techniques described. The program file can be downloaded at: http://eng.woodway.com/ProSmart/ExampleProgram.zip <Program> <Name>Example Program</Name> <Description>This program is an example of how to incorporate all of the custom functionality.</Description> <Author>Woodway</Author> <Machine>Treadmill</Machine>... - Page 62 <Phase> <Name>Sprint</Name> <Type>Goal</Type> <Mode>Time</Mode> <Speed> <Target>{Profile.RunMax} * 0.95</Target> </Speed> <Grade> <Target>0</Target> </Grade> <Duration>30</Duration> </Phase> </Loop> <Loop> <Name>HR Loop</Name> <Count>3</Count> <Phase> <Name>Target 50%</Name> <Type>HeartRate</Type> <Flags>SmallStepsOnly</Flags> <HeartRate> <Target>{Profile.MaxHeartRate} * 0.50</Target> </HeartRate> <Duration>300</Duration> </Phase> <Phase> <Name>Target 90%</Name> <Type>HeartRate</Type> <Flags>SmallStepsOnly</Flags> <HeartRate> <Target>{Profile.MaxHeartRate} * 0.90</Target> </HeartRate>...
-
Page 63: Uploading A Custom Workout
Uploading a Custom Workout Uploading a workout to a ProSmart console is done by using the web interface. (See Section 6.4) The documents explain how to get the IP Address of the treadmill on your network. The web interface can be accessed using an internet browser on the same network. In the address bar of the browser use the 12 digit IP address following by a colon and 5678 for the port. -
Page 64: Tips For Error Free Programs
Tips for Error Free Programs Use a programming text editor such as Notepad++ to write programs. This will color the XML tags to be easier to see the tags vs plain text. Style the indentations for consistency. Use the Tab key to indent nested tags. All the ... -
Page 65: Tv On The Prosmart
TV on the ProSmart Setting Up a SiliconDust Determining Your Video Signal For the HDHomerun extend unit to work, it must be compatible with the signal you are providing it on the coaxial (RG6) cable. The compatible signal types are over the air digital broadcast (ATSC) or unencrypted digital TV (QAM64/256). -
Page 66: Hdhomerun Setup
IP Address, Subnet Mask, MAC Address, etc. 3. Take note of the IP Address as it will be used to point the ProSmart at the SiliconDust box. NOTE For stability purposes, it is HIGHLY recommended that a DHCP Reservation is made for each SiliconDust device on the network. -
Page 67: Scanning For Channels
Scanning for Channels 1. Use HDHomeRun Setup to scan for channels. 2. Find the tab corresponding to the incoming signal, either Digital Antenna Digital Cable. 3. Navigate the tab. 4. Select the Device Input from the dropdown box and click the Scan button. -
Page 68: Setting Up An Iptv Solution
Setting Up an IPTV Solution The ProSmart platform is compatible with IPTV streams. Typical IPTV solutions use UDP, HTTP, or an RTP video stream. Woodway does not provide, install, or support IPTV solutions, but can provide a recommended installer if needed. - Page 69 7. Press the SiliconDust button to bring up the detected SiliconDust channel list. 8. Select a channel on the screen. 9. Press the Save button to add the channel to the list of available channels. Note: You can remove a single channel by selecting it from the channel list on the left side of the screen and then pressing the Remove button.
-
Page 70: Adding Channels Using Usb Tuner
Adding Channels Using USB Tuner The built-in USB tuner allows the ProSmart to receive live TV over a coaxial (RG6) cable. The RG6 cable is connected to the A/C bracket on the treadmill. If the RG6 connection is not present the treadmill does not have a built-in tuner. - Page 71 6. Press the button to bring up the detected USB tuner channel list. 7. Select a channel on the screen. 8. Press the Save button to add the channel to the list of viewable channels. Note: You can remove a single channel by selecting it from the channel list on the left side of the screen and then pressing the Remove button.
-
Page 72: Adding Channels Using Iptv
Adding Channels Using IPTV 1. Open the Settings (password 8020). 2. Navigate to the TV tab. Note: If you don’t have a TV tab, the treadmill requires an update. 3. Press the button. 4. Press the button and enter the name and URL of the IPTV channel stream. 5. -
Page 73: Watching Tv On The Prosmart
Watching TV on the ProSmart To watch TV, begin any workout using the normal flow of the ProSmart. 1. Press the Entertainment Select button 2. Press the TV option on the left. 3. Navigate channels using the list on the right.
