  • Page 1 Feature-packed Audio Interface User Manual...

  • Page 3: Main Features

    Foreword Thanks for purchasing Comica feature-packed audio interface LinkFlex AD5 Main Features . 48kHz/24bit Audio Recording, Integrated Dual XLR/6.35mm Interfaces . Digital Signal Processing and Three EQ and Reverb Modes for Design Unlimited Creativity . Support Recording/Streaming Mode Switch and Direct Monitor .
  • Page 4 Packing List Main Part: LinkFlex AD5 Accessories: Feature-packed Audio Interface User Manual 2 in 1 Audio Cable 3.5mm TRRS-TRRS Audio Cable User Manual Warranty Card...

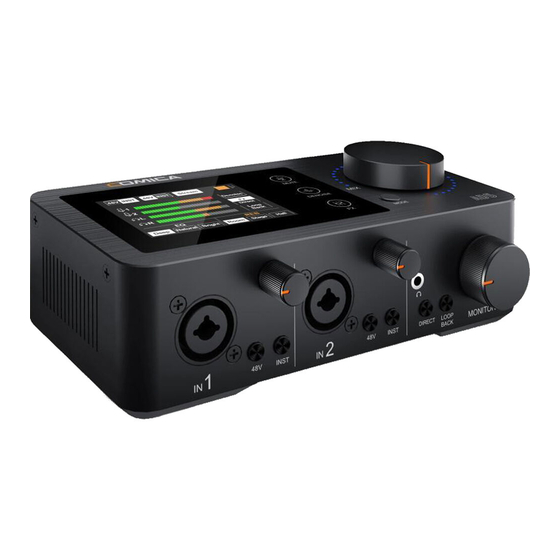

  • Page 5 Components Introduction 1. LCD Screen To show the device status intuitively. Please refer to the following “Screen Top Panel: Display” for more information. 2. MIX Knob ① ② ③ To adjust the volume level of output audios; the volume indicators will change according to the volume level.

  • Page 6: Front Panel

    Front Panel: 1. Input Port IN1/2 6.35 TRS instruments and XLR micrphones can be connected to AD5 through the input ports IN1/2. In Recording Mode, IN1 stands for the left channel and IN2 the right channel. ① ② ① ② 2.
  • Page 7 4. Inst Switch 1/2 Turn on/o the input impedance. Please turn the inst switch on when connecting Hi-Z instruments such as an electric guitar/bass to achieve better input e ects. 1. It's recommended to set the gain of AD5 to the minimum before turning on/o Inst switch to avoid feedback problems and damage to the devices. 2.

  • Page 8: Back Panel

    1. Power/Language Switch Button Back Panel: Long press to turn on/o ; short press to switch the language of AD5 between Chinese and English. 2. USB-C Charging Port Users can charge AD5 through the 2 in 1 cable. 3. USB Port 1/2 To connect phones/computers to input/output audio signals via the 2 in 1 audio cable.
  • Page 9 Screen Display: （Applicable to the status of other features） 48V Phantom Power 1 Inst 1 48V Phantom Power 2 Inst 2 Normal Working Power Status Muting Input Audio Dynamic Bar Monitoring Audio Dynamic Bar Left Channel Input Monitor Direct Monitor Direct Monitor Mono Stereo...

  • Page 10: Devices Connection

    Installation and Usage Devices Connection Users can connect the corresponding devices to the audio interface referring to the following pictures：...
  • Page 12 1. Connect microphones/ instruments Connect 6.35mm TRS instrument/XLR microphone to AD5 via the input ports IN1/2. In Recording mode, IN1 stands for the left channel, IN2 the right channel; when using a microphone powered by 48V phantom power, please turn on the 48V phantom power;...
  • Page 13 DAW Software Setting Users can start using the AD5 with the DAW software. (please refer to the following instructions in Cubase and ProTools). Cubase 1. Please download and install the driver ASIO4ALL in advance; 2. Connect AD5 to the computer, open Cubase, and create a new project; 3.

  • Page 14: Specifications

    Specifications Input Interface 2 x XLR/6.35mm Digital Interface 2 x USB-C Analog Interface 2 x 3.5mm Line Output Interface 2 x 6.35mm Monitoring Interface 2 x 3.5mm Preamp Gain +65dB Dynamic Range +115dB Sampling Rate 48kHz Bit Depth 24bit Battery Polymer Lithium Battery 3000mAh 3.7V Operating Time 6 Hours...
