Placement and Maintenance
Your WashPark Desk is designed for indoor use on level
floors. Furniture with hard lacquer, wax polish or painted
surface should be dusted with a dry cloth. Spillages should
be wiped up as soon as possible. Our furniture will endure
most temperatures in the home but it is best to avoid placing
furniture next to heat sources such as radiators or fires.
Step 1

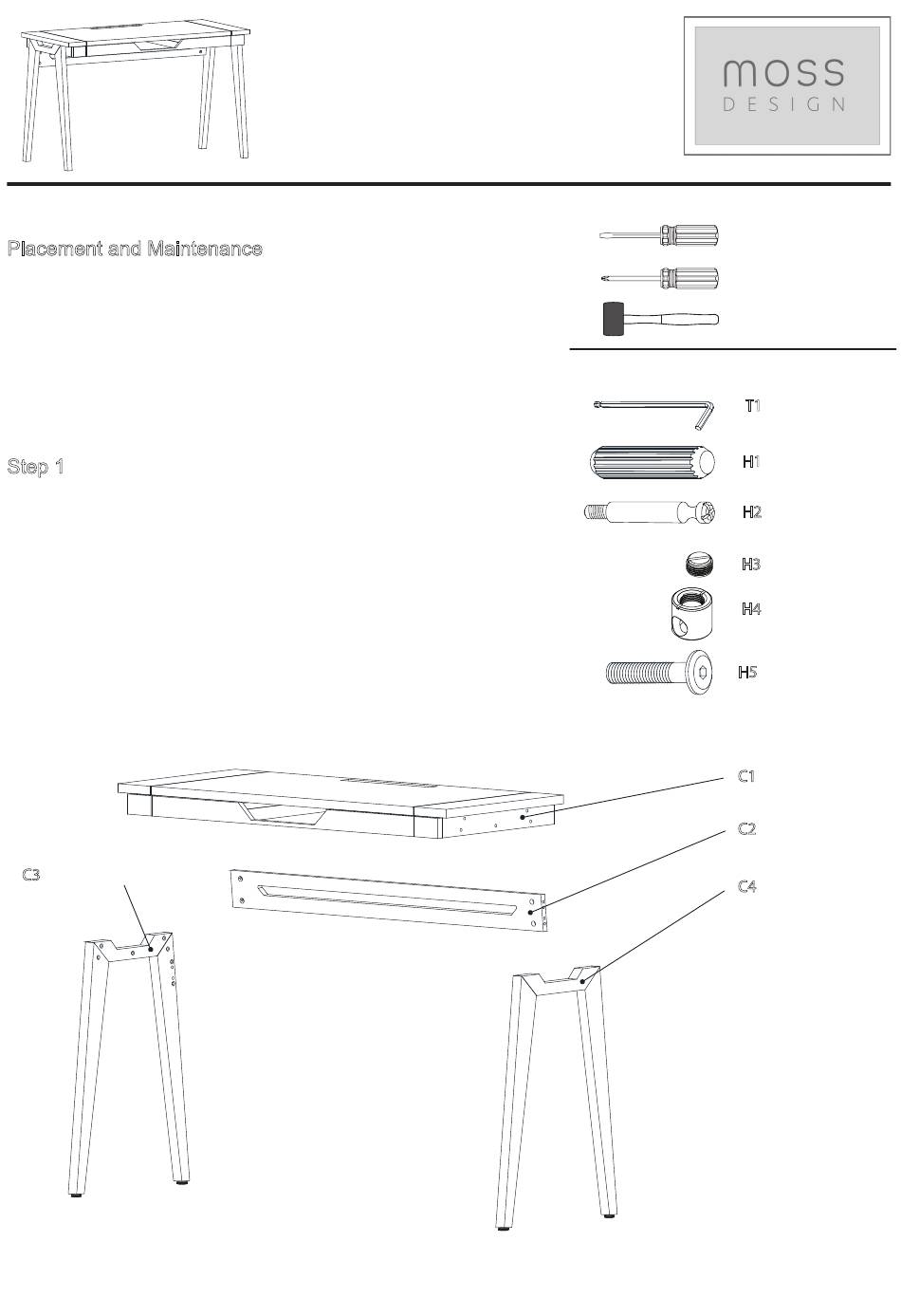

Unpack and identify the parts listed below. The assembly
workspace should be a non-marring surface such as carpet.
For missing hardware pieces, visit the customer support
page on our website www.mossdesign.us
C3 Left Leg x 1
WASHPARK
DESK
Tool Required:
Screwdriver
Slotted Screwdriver
Mallet or Hammer
Tool Provided:
T1 M4 Hex wrench x 1
H1 Wooden Dowel
(8x35mm) x 4
H2 Steel Dowel
(52mm) x 4
H3 Set screw x 4
H4 Barrel Housing x 4
H5 Allen Head Bolt
(M6x30mm) x 10
C1 Desk Top x 1
C2 Modesty Panel x 1
C4 Right Leg x 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moss WASHPARK
Summary of Contents for Moss WASHPARK
- Page 1 Tool Required: Screwdriver Placement and Maintenance Slotted Screwdriver Your WashPark Desk is designed for indoor use on level floors. Furniture with hard lacquer, wax polish or painted Mallet or Hammer surface should be dusted with a dry cloth. Spillages should be wiped up as soon as possible.
- Page 2 Step 2 - Assemble barrel housing. Using a slotted screwdriver, partially thread 4 set screws H3 into the 4 barrel housings H4. DO NOT thread more than a few clockwise turns! Slotted Screwdriver Step 3 - Attach dowels to Modesty Panel. Fix 4x wooden dowels H1 to modesty panel C2 by using a mallet.
- Page 3 Step 4 - Attach hardware to legs. Using either a slotted or screwdriver, thread 4 steel dowels H2 into the threaded inserts on the 2 leg frames as shown. Step 5 - Left leg to desk top. Bring the left leg C3 closer to the desk top C1 and insert the 5 allen head bolts H5 into the slots, tighten the bolt using the hex wrench T1 as shown below.
- Page 4 Step 6 - Fix the modesty panel. Place the 2 barrel housings H4 on the modesty panel C2 , put the modesty panel on its final position tighten the set screws by using a screwdriver as shown below. Step 7 - Attach right leg to desk top. Place the 2 barrel housings H4 on the modesty panel, put the steel dowels into place as shown below.
- Page 5 Step 8 - Fix the right leg. Insert the 5 allen head bolts H5 into the slots as shown below and tighten by using a hex wrench T1. Step 9 - Fix the modesty panel. Tighten the barrel housing H4 in the modesty panel C2 by using a screwdriver.
- Page 6 Step 10 - End of the assembly. Lift the unit to standing position carefully. Top panel max loading capacity 88 Ib Drawer max loading capacity 15 lb Moss Design is a trade name of a Colorado company Moss Furniture LLC www.mossdesign.us...
