LG 32SQ780S Owner's Manual

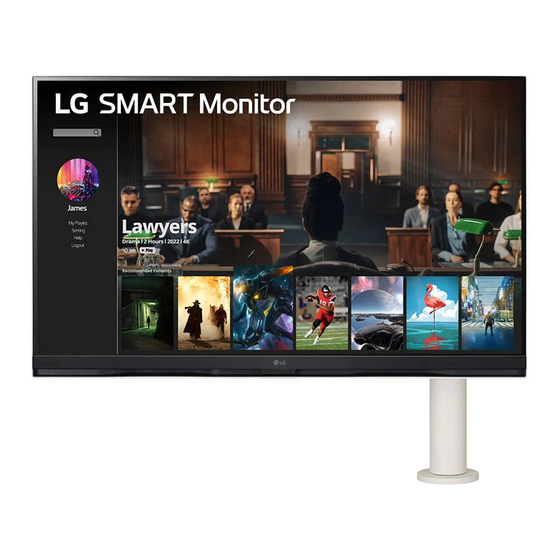

Smart monitor
Hide thumbs Also See for 32SQ780S:
Table of Contents

Advertisement

Quick Links

LG Smart Monitor
OWNER'S MANUAL
Please read this manual carefully before
operating your set and retain it for future
reference.
32SQ780S
The model and serial number of the product are located on the
back and on one side of the product. Record them below in case
you ever need service.
Model
Serial No.
www.lg.com
Copyright © 2022 LG Electronics Inc.
All Rights Reserved.
Supplier's Declaration of Conformity
Trade Name
LG
Responsible
LG Electronics USA,
Party
Inc.
Address
111 Sylvan Avenue,
North Building,
Englewood Cliffs,
NJ 07632
E-mail
lg.environmental@
lge.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32SQ780S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG 32SQ780S

Summary of Contents for LG 32SQ780S

  • Page 1 Copyright © 2022 LG Electronics Inc. All Rights Reserved. LG Smart Monitor OWNER’S MANUAL Please read this manual carefully before operating your set and retain it for future reference. 32SQ780S The model and serial number of the product are located on the back and on one side of the product.

  • Page 2: Before Reading This Manual

    • The model name or design may be changed depending upon the upgrade of product functions, manufacturer’s circumstances or policies. • Magic Remote Control : MR22GA (MR22GA model can be used in common with some TV products and this LG Smart Monitor) Check whether your model supports Bluetooth in the Wireless Module Specification to verify whether it can be used with the Magic Remote.

  • Page 3: Precautions In Installing The Product

    • Never disassemble, repair or modify the power cord or AC adapter. - This may cause a fire or electric shock. • Use only the power cord supplied with the unit or another manufacturer's authorized cord. - Failure to do so may result in fire or electrical shock or damage to the product. •...

  • Page 4: Precautions In Moving The Product

    • If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and contact LG Customer Service. - If you continue to use without taking proper measures, electrical shock or fire can occur.

  • Page 5: Precautions In Using/Cleaning The Product

    - Fire or electric shock can occur. - Contact LG Customer Service for repair. • When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product.

  • Page 6: Installation

    Installation Lifting and moving the Monitor Please note the following advice to prevent the Monitor from being scratched or damaged and for safe transportation regardless of its type and size. • It is recommended to move the Monitor in the box or packing material that the Monitor originally came in. •...

  • Page 7: Swivel Stand

    How to fix a clamp 1 After positioning the stand on the table, secure it by turning the handle. • For tables without a protrusion - The table should be less than 75 mm (2.9inches) thick. Table ≤ 75 mm (2.9inches) • Stands that are not fully engaged to the table may allow the monitor to wobble or fall over. •...

  • Page 8: Pivot Feature

    Pivot Feature The pivot feature allows the monitor to rotate 90 ° counter-clockwise. Monitor’s head Table • When using the Pivot function, do not rotate the monitor too fast or with excessive force. The table may be scratched by contact with the monitor’s head. 1 Raise the monitor up to the maximum height.

  • Page 9: Adjusting The Stand Height

    Leveling the Screen If the screen appears crooked to one side after the product has been placed in position, straighten the angle horizontally as follows. Adjusting the Stand Height 1 Make sure to hold and move the monitor with both hands. Max.

  • Page 10: Adjusting The Angle

    Adjusting the Angle Adjust the angle of the screen. The angle of the screen can be adjusted forward or backward from -25 ° to 25 ° for a comfortable viewing experience. • To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor’s frame as illustrated below. •...

  • Page 11: Moving And Lifting The Monitor

    Monitor to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
  • Page 12 • Unplug the power cord before moving or installing the monitor to avoid electric shock. • Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.

  • Page 13: Hdmi Connection

    Connections You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a PC Some of the cables are not provided.

  • Page 14: Usb-C Connection

    • Do not press the screen with your finger for a prolonged period as this may result in temporary distortion on the screen. • Avoid displaying static images on the screen for a long period of time to prevent retention. Use a screensaver if possible. •...

  • Page 15: External Device Connection

    External Device Connection Some of the cables are not provided. Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode. For the best picture and sound quality, connecting external devices to your monitor using HDMI cables is recommended. USB Device connection The USB port on the product functions as a USB hub.

  • Page 16: Specifications

    Specifications Environment Condition Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Storage Humidity Less than 85 %...

  • Page 17: Product Information

    Product Information Wireless module(LGSBWAC03)Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range Output Power (Max.) 2,400 to 2,483.5 MHz 20 dBm 5,150 to 5,725 MHz 18.5 dBm 5,725 to 5,850 MHz 8 dBm Bluetooth Frequency range Output Power (Max.) 2,400 to 2,483.5 MHz 9 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table. For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the device and the body.
  • Page 18 HDMI/USB-C DTV supported HDMI/USB-C PC supported mode Mode • PC audio is not supported. Horizontal Frequency Vertical Frequency • Use HDMI IN 1 for PC mode. (Depending upon model) Resolution (kHz) (Hz) 31.46 59.94 Horizontal Frequency Vertical Frequency Resolution 640 x 480p (kHz) (Hz) 31.50...

  • Page 19: Open Source Software Notice Information

    LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.

  • Page 20: Troubleshooting

    Troubleshooting Nothing is displayed on the screen. • Is the monitor's power cord plugged in? - Check if the power cord is correctly plugged into the power outlet. • Is the [No Signal] message being displayed? - This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it. Screen display is unstable and shaky.
  • Page 21 Do you see an "Unrecognized monitor, monitor found" message? • Have you installed the display driver? - Be sure to install the display driver from our web site: https://www.lg.com. - Make sure to check if the graphics card supports function.

  • Page 22: Using Remote Control

    Using Remote Control The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the display correctly. This remote uses infrared light. When in use, it should be pointed in the direction of the display’s remote sensor. Q.
