- Page 1 T102 Quick Reference Manual For PDF version, for After-Sales support, please get in touch with us at tokviainfo@gmail.com...
-

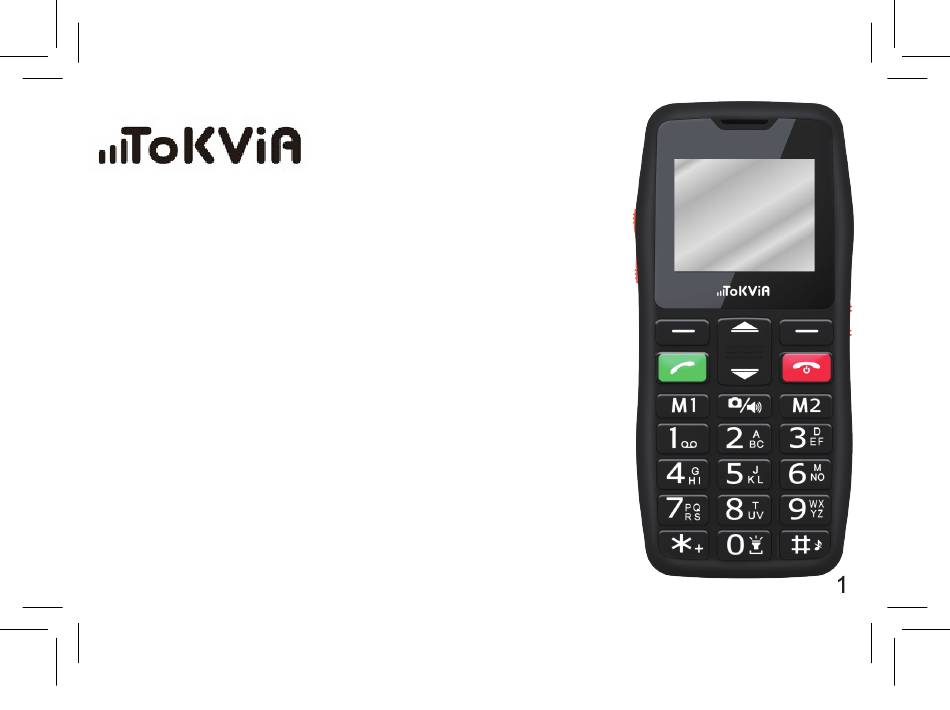

Page 2: General View
General View The following illustration shows details of the mobile phone. Familiarise yourself with all the operating elements before starting to use the mobile phone. Torch lamp (LED) Display Softkey, left SOS key Call key Volume key Camera/Speaker key Keypad lock / unlock key Battery compartment cover Keypad Softkey, right... - Page 4 Insert the SIM card in the slot SIM. SIM 1 T102 is a 2G GSM only mobile phone. Please make sure your SIM card can support 2G network. A microSD memory card is necessary, for instance, when you want to use the camera.
-
Page 5: Inserting The Battery
Inserting the Battery Insert the battery as illustrated. Ensure the battery is aligned correctly. Charging the Battery Connect the power adapter plug to a properly installed power socket. Connect the Type C plug to the Type C connection port on the mobile phone. When the phone battery is fully charged, disconnect the connection to the power supply. -
Page 6: Operating The Mobile Phone
Switching On the Mobile Phone Press the On-hook key for 3 seconds. Switching Off the Mobile Phone Press the On-hook key for 3 seconds. Operating the Mobile Phone Navigate up or down in the menu. When the start screen is displayed, press up: open message, press down: Photo contact speed dial. - Page 7 When you want to take, end or reject calls, use the following keys: Take an incoming call or begin a conversation. End a call in progress or Reject an incoming call. Click M1 or M2 to call the preset contact. When you want to enter phone numbers and digits or delete entries, use the following keys: Enter digits and letters.
- Page 8 The operating elements on the sides or rear of the phone are assigned the following functions: Charge the mobile Trigger an phone battery or emergency call to establish a connection the stored phone to a computer. numbers. If you want to lock the operating keys on the mobile phone, press the following in succession: push up the side Keypad lock key.
- Page 9 When the phone is in standby mode, press up to increase the ringtone volume, press down to decrease the ring tone volume. During a phone call, press up to increase the call volume and press down to reduce the call volume. When the phone is in standby mode, click the Camera key to start the camera (A SD card is needed to take photos).
-
Page 10: Overview Of The Most Important Functions
Overview of the Most Important Functions Italics texts are provided in the following operating steps. These italics indicate texts which can appear on the display of the mobile. Setting the language Press the left-hand softkey to open the main menu. Navigate to the menu Settings >... -
Page 11: Adding A Contact To The Phone Book
Adding a contact to the phone book You can store up to 200 contacts in the phone book. Press the left-hand softkey to open the main menu. Navigate to the menu options Phonebook > Add new contact. Select a storage location (To SIM or To Phone). Enter the name and phone number. -
Page 12: Speed Dial
Speed dial Press the left-hand softkey to open the main menu. Navigate to Phonebook > Speed dial > Set numbers. Set the speed dial contacts. 8 contacts can be stored to digit 2-9. On the start screen, press and hold a digit, the stored contact is dialled. - Page 13 Adding a picture to Photo Contact When you want to assign a picture to a contact, you can either use the camera integrated in the mobile phone or transfer a picture stored on cting your computer to the mobile phone. In this case, you need a microSD memory card.
- Page 14 Number announcement for visual impairment The number is announced when it is dialed. It helps people who are visually impaired. Press the left-hand softkey to open the main menu. Navigate to Settings > Profiles > General (or another profile) > Customize > Keypad. Press Option, and select Human voice tone.
- Page 15 Activating the Emergency Call Function Press the left-hand softkey to open the main menu. Navigate to the menu options Settings > SOS settings SOS alarm. ting Select On / Off to activate/deactivate. Adding a Phone Number to the SOS Function Press the left-hand softkey to open the main menu.
-
Page 16: Technical Properties
Technical Properties GSM: 850 / 900 / 1,800 / 1,900 MHz Frequency band Bluetooth: 2,402 - 2,480 GHz Sending power (max.) GSM: 1.86 W Bluetooth: 3.1 mW Power supply Input: 100 - 240V, 50 - 60Hz, 0.3A Output: 5V, 0.55Ah Battery 3.7 V, 800 mAh, charging time approx.
Need help?
Do you have a question about the T102 and is the answer not in the manual?
Questions and answers
how to fit sim
It rings but the caller can't hear me

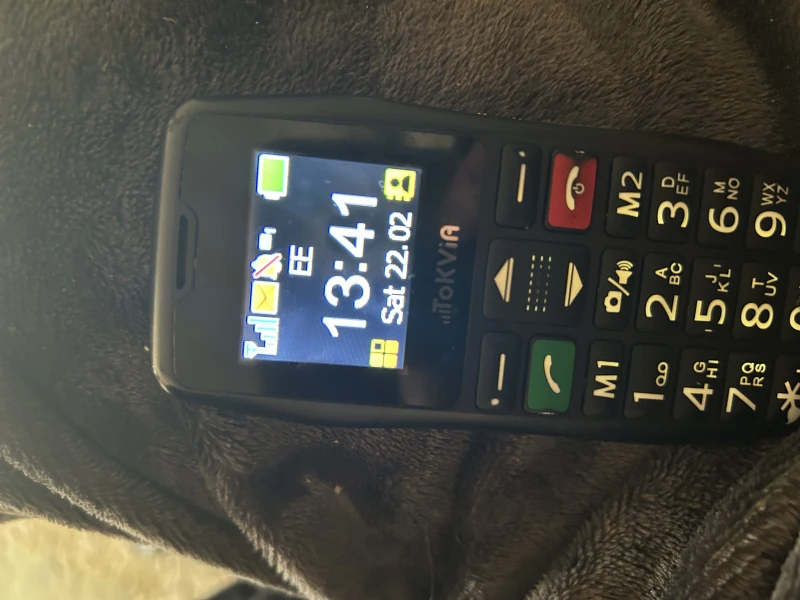

There’s a bell with red line through it but what does it mean and what I need to do
