Hochiki CHQ-BS Programming Instructions

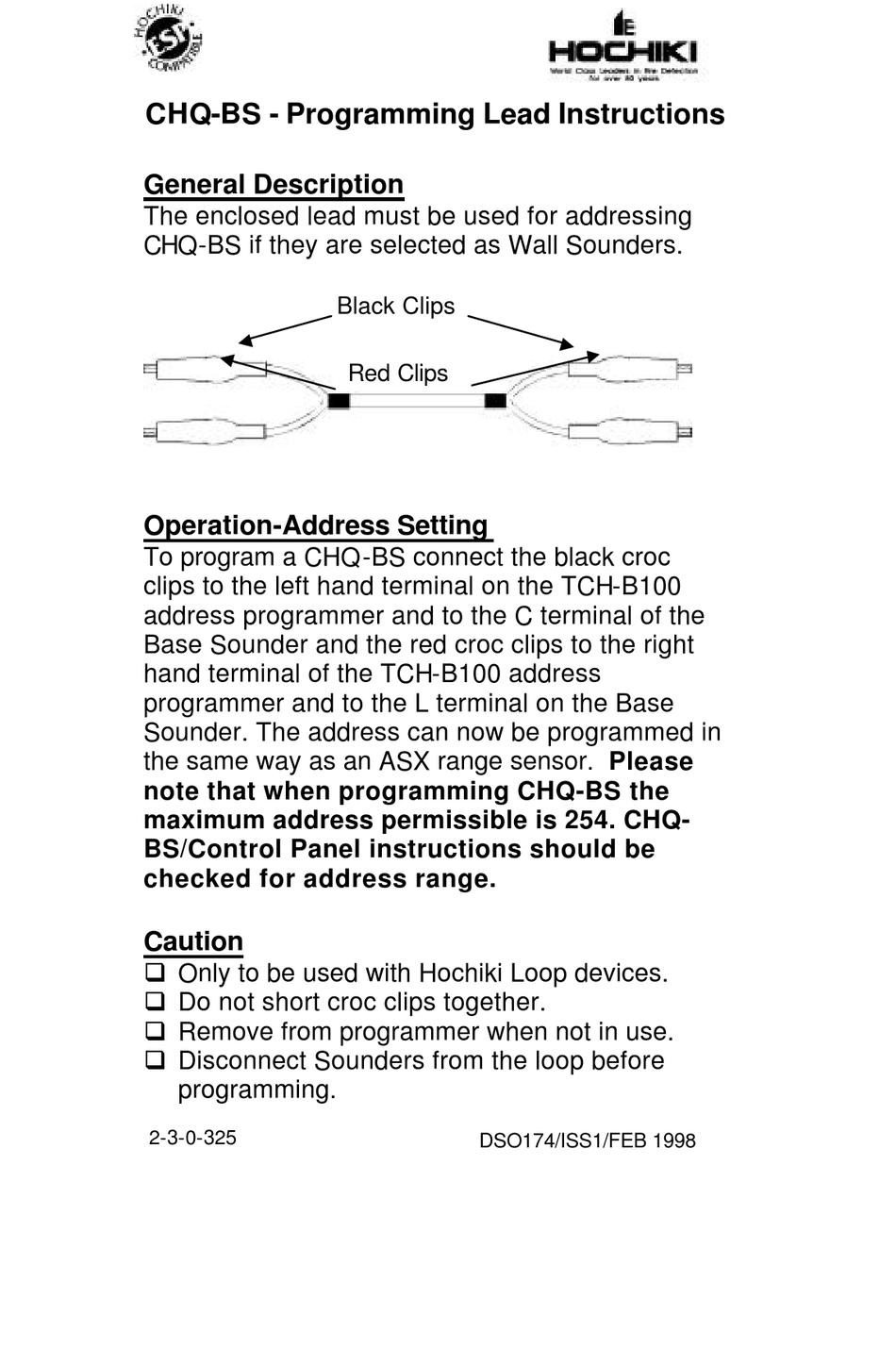

CHQ-BS - Programming Lead Instructions

General Description

The enclosed lead must be used for addressing
CHQ-BS if they are selected as Wall Sounders.

Black Clips

Red Clips

Operation-Address Setting

To program a CHQ-BS connect the black croc
clips to the left hand terminal on the TCH-B100
address programmer and to the C terminal of the
Base Sounder and the red croc clips to the right
hand terminal of the TCH-B100 address
programmer and to the L terminal on the Base
Sounder. The address can now be programmed in
the same way as an ASX range sensor. Please
note that when programming CHQ-BS the
maximum address permissible is 254. CHQ-
BS/Control Panel instructions should be
checked for address range.
Caution
q Only to be used with Hochiki Loop devices.
q Do not short croc clips together.
q Remove from programmer when not in use.
q Disconnect Sounders from the loop before
programming.
2-3-0-325
DSO174/ISS1/FEB 1998
