Summary of Contents for Dahua EEC300D8-N1

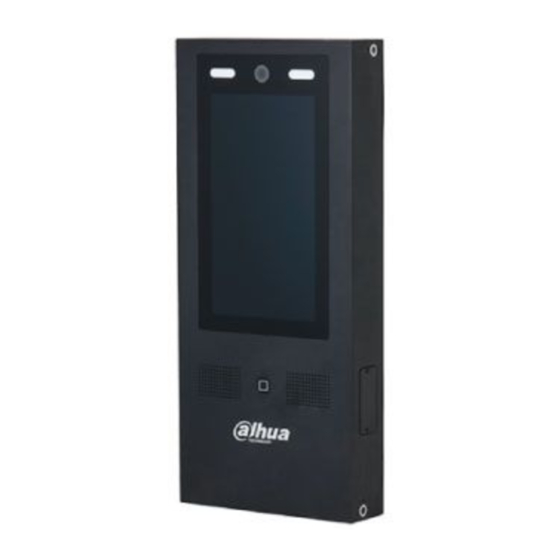

- Page 1 Data Collection Station Quick Start Guide V1.0.1...
-
Page 2: Foreword
Foreword Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result in DANGER death or serious injury. Indicates a medium or low potential hazard which, if not avoided, WARNING could result in slight or moderate injury. -
Page 3: Important Safeguards And Warnings
Important Safeguards and Warnings This chapter describes the contents covering proper handling of the Data Collection Station (hereafter refer to as “the Station”), hazard prevention, and prevention of property damage. Read these contents carefully before using the Station, comply with them when using, and keep the manual well for future reference. -
Page 4: Table Of Contents
Table of Contents Foreword ................................I Important Safeguards and Warnings ......................II 1 Overview ................................ 1 Introduction ....................................1 Product Appearance ................................. 2 1.2.1 Control Module ................................2 1.2.2 Appearance of Data Collection Modules ......................4 Description of Buttons ................................5 Power on...................................... -
Page 5: Overview
Overview Introduction Working with body camera, the Station can acquire the data of body cameras and charge them. The Station can auto recognize and connect the connected body camera through the USB port. Working with Portable Mobile Center Platform, the Station can authorize the body camera, auto acquire the electronic evidence (video, audio, and snapshot). -
Page 6: Product Appearance
Product Appearance 1.2.1 Control Module Figure 1-1 Front panel and rear panel... - Page 7 Figure 1-2 Side panel Table 1-1 Appearance description Name Description Touch screen 13.3-inch touch screen. Speaker Audio output. Adds fingerprint data or unlock by fingerprint. Fingerprint sensor At most 3 fingerprints can be added for each user. Remove the control module when connecting control module and Adjusting board data collection modules.
-
Page 8: Appearance Of Data Collection Modules
Name Description Transfers the data from control module and data collection Connector. modules Heat dissipation — hole Include power input port, USB ports, Ethernet ports, and RS-232 Ports port. For details, see Table 1-2. 1.2.2 Appearance of Data Collection Modules Figure 1-3 Appearance of data collection modules... -
Page 9: Description Of Buttons
Put body cameras into docks for data collection. When there are more than 1 data collection modules, the data of the body cameras in the two docks of the first row will be collected first. There are two icons below the dock: indicates recharging;... -
Page 10: Power On
Power on The cover of the Station has static electricity, which might cause electric shock. To avoid electric shock, make sure the Station is well grounded. Step 1 Connect the power cable and network cable. Step 2 Press the power button. The whole process will take a period of time. - Page 11 Figure 1-5 Take out data cable (MPT220 slot) Figure 1-6 Take out data cable (MPT210 slot) Step 2 Connect the data cable to the body camera until the Station pops up connection successful dialog box.
- Page 12 Figure 1-7 Connect device (MPT220 slot) Figure 1-8 Connect device (MPT210 slot) Step 3 After the connection, put the body camera into the dock, and then you can collect data and recharge the body camera. For MPT220 body camera, insert the device into the slot. ...
- Page 13 Figure 1-9 Data collection (MPT220 slot) Figure 1-10 Data collection (MPT210 slot)
-
Page 14: Hdd Installation
HDD Installation You can install six 10T HDDs (hard disk drives). To avoid insufficient storage space, HDDs larger than 2T are recommended. To reduce the writing pressure of each HDD, we recommend you to install at least 2 HDDs with ... - Page 15 Figure 2-3 Take out HDD box Step 4 Fix HDDs Figure 2-4 Fix HDD Step 5 Install HDDs. Push the fixed HDDs in the HDD box. Figure 2-5 Install HDD Push HDDs in the direction as the HDD port and main board port show. Step 6 Fix the HDD box in the chassis.
- Page 16 Step 7 Connect the cable between main board and HDD plate. Step 8 Fix the cover. Figure 2-7 Fix the cover...
-
Page 17: Configuration And Operation
Configuration and Operation Figure 3-1 Main interface Table 3-1 Main interface description Description Unlock the dock by one tap. Alarm. Tap it, and the alarm tune is disabled. -
Page 18: File Management
Description Alarm information display. The red light flashes when there is alarm. External USB storage device. Grey means no USB storage device is connected. View HDD capacity. : Indicates a file is being uploaded; : Indicates no file is being uploaded. Login, logout, restart, shutdown, and editing the user information. - Page 19 Figure 3-2 User management Step 2 Click Add to add users. You can add faces and fingerprints, and configure user permissions. All permissions are enabled by default. Figure 3-3 Add users...
-
Page 20: Adding Enforcer
3.2.2 Adding Enforcer Select Setting > Account > Enforcer, and then click Add to add users. Enter enforcer department, enforcer No., enforcer name, password, and confirm password, and add face and fingerprint as needed. Figure 3-4 Adding enforcer 3.2.3 Resetting Password Select Setting >... - Page 21 Figure 3-5 Resetting password...
-
Page 22: Appendix 1 Cybersecurity Recommendations
Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks. - Page 23 We suggest you to change default HTTP and other service ports into any set of numbers between 1024~65535, reducing the risk of outsiders being able to guess which ports you are using. Enable HTTPS We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel.
- Page 24 Enable IP/MAC address filtering function to limit the range of hosts allowed to access the device.
