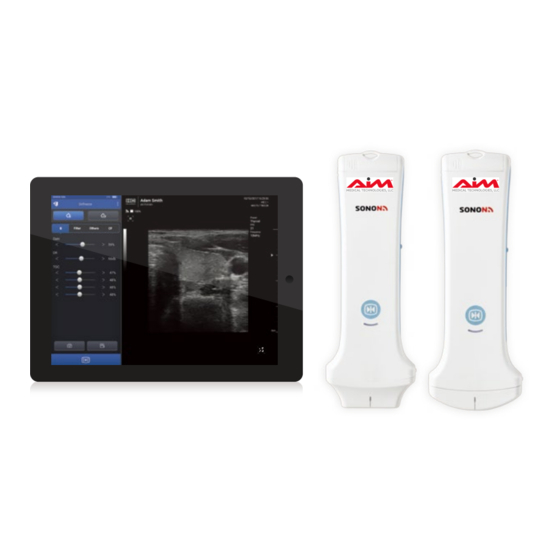

Aim SONON 300L Quick Start Manual

PACS Setup
For Android Users
01. Connect mobile displaying device with Workplace WiFi
02. Select button on the Main screen and activate Automatic
Connection on WiFi Setting and register the Workplace WiFi SSID
and Device WiFi SSID.
03. Select the Setting menu and fill in the PACS Setup, MWS Setup and
Application Setup information and tap Ping Test buttons to test
run the set ups.
04. If success messages appear, then the PACS connections are completed.
* Workplace WiFi: The local WiFi that can connect to PACS which
are mostly available in the hospitals
* Device WiFi: The SONON WiFi that can be found in the mobile
displaying device (ex. SONON 300L-XXXXXXX)
* In order to register both of the Workplace and SONON WiFi,
the connection must be made before attempting the registration
For iOS Users
01. Connect mobile displaying device with Workplace WiFi
02. Select button on the Main screen and select DICOM to fill in the
PACS Setup, MWS Setup, and Application Setup information and
tap Ping Test buttons to test run the set ups.
03. If success messages appear, then the PACS connections are completed.
After PACS Set Up
For Android Users
A. Select the Worklist on the Main screen and select update button to upload patient lists
B. When patient is selected, scan screen will be automatically displayed.
For iOS Users
A. Select the Worklist on the Main screen and select update button to upload patient lists
B. Connect SONON to the mobile displaying device via WiFi connection
C. In the main menu of SONON App, select Worklist and select a patient to scan.
WiFi
first .
