Summary of Contents for erc 450VS+

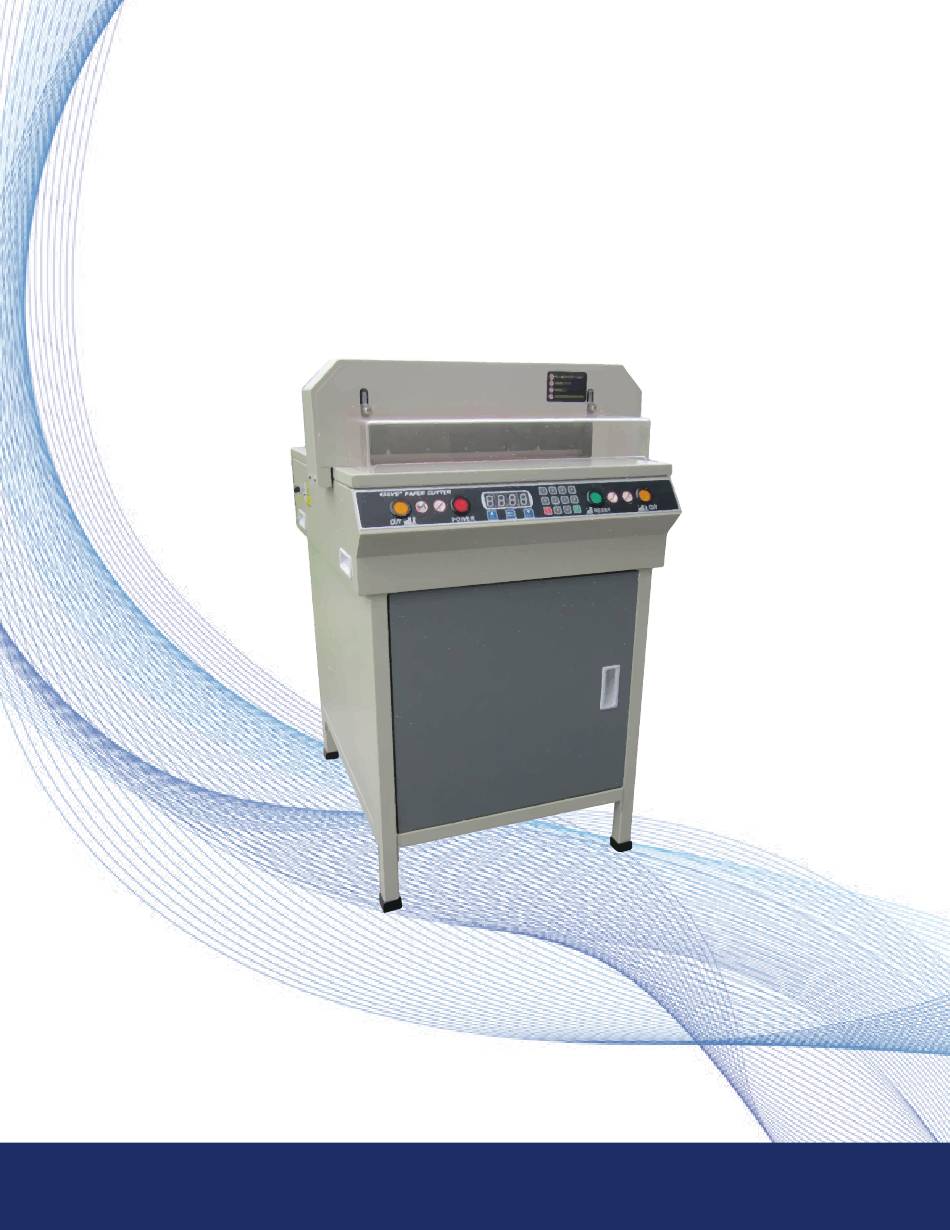

- Page 1 450VS+ PAPER CUTTER User Manual Before Installation Please Read This Instruction Manual.
- Page 2 FOREWORD Thank you for your choice of our Precise Paper Cutting Machine series. We will provide you with good quality and reliable post-sale service. On the basis of original products, our research and develop engineers combined advantages of products at home and abroad, and finally developed new model of Precise Paper Cutting Machine.
- Page 3 SAFETY CAUTIONS According to relevant standards, to avoid accident and accidental injury, only professional operators are allowed to use this machine (children or non-professional opera- tors are forbidden to operate). When you use or maintain these machines, please pay high attention to safety cautions below: SETTLEMENT POSITION The welght of this kind machine is is heavy ,Please put it...
-
Page 4: Table Of Contents
CONTENTS Ⅰ.SETTLEMENT POSITION 1.Open the machine and check 2.Settlement of the machine 3.Operating environment 4.Special suggestions Ⅱ. BRIEFINTRODUCTION OF THE PAPER-CUTTING MACHINE 1. Parts description of the paper-cutting machine 2. Operating panel. 3. Principal technical parameter 4. Performance features III.BASIC OPERATION AND BASIC ADJUSTMENT 1.Basic operation 1-1 Start the machine 1-2 Push paper... -
Page 5: Open The Machine And Check
SAFETY CAUTIONS BEFORE INSTALLATION 1.Open the machine and check When you open the package of the machine, firstly you should check the machine and relevant accessorles. Please contact the seller or our company if there is any damage or shortage. Main unit Machine chassis Specification... -
Page 6: Briefintroduction Of The Paper-Cutting Machine
Ⅱ BRIEF INTRODUCTION OF THE PAPER-CUTTING MACHINE 1.Parts description Safety lock Front protective cover Reset Power Chassis Door Rubber under chassis /OPERATING PANEL/ Cut Keys Return Number key Forward Proofread Delete Confirm Reset Power RESET There is a mistake operation when cutting with pressing two CUT buttons. - Page 7 2.Parts description Model 450VS+ Cutting Width(Mm) Cutting Thickness Paper Pressing Structure Automation Paper Pushing Mode Automation Safety Protection Have Power Supply 800W Machine Size(H*D*W) 1020X760X670mm Net Weight 105kg 2.Parts description ● CNC circuit design, double guide rail pushing paper device ●...
-
Page 8: Basic Operation
Ⅲ BASIC OPERATION AND ADJUSTMENT 1.Basic operation Before operating, please review contents described before carefully. Then you can do operations below. 1-1 Start the machine Insert the power Turn the protective switch to 'On' position. Turn on the power supply, the liquid crystal display and indicative wiring of knife position is lighting, that means electricity connection is normal. -
Page 9: Basic Adjustment
If you find the last piece of paper can't be cut completely.please adjust according to Knife shim adjustment method. 2.Basic adjustment 2-1 Cut the electricity power; Cut the electricity power; Check whether there is any foreign matter on the guiding rod; Pull out the front covering strip, and check stepping motor, to see whether the synchranous pulley and synchronous belt are fixed normal;... -
Page 10: Cutting Stick Adjustment
When you install the blade, you should loose the screw of adjusting blade depth on the blade carrier ,then screw up the screw stems, and fix up the blade to blade carrier. After that ,make screw strip be fasten and fix up one by one, then adjust according to cutting depth adjustment method;... -
Page 11: Iv.lubrication And Maintenance
LUBRICATION AND MAINTENANCE 1. Lubrication Every three month, you should open the brace plate of the machine, check and clean, tighten parts, and use lubricating oil to rolling parts. When you do lubrication, be careful to avoid lubricating oil dripping on the wires or electrical parts. -
Page 12: Common Errorand Elimination
COMMON ERRORAND ELIMINATION Error Phenomena Elimination method No power Indicating light is off 1.Check the power source plug source display 2.Check main switch 3.The power Source wire is bad Incomplete Paper can't be cut 1.The blade abrades badly cutting completely 2. - Page 13 Before Installation Please Read This Instruction Manual.
