Flytec P2410W Quick Start Manual

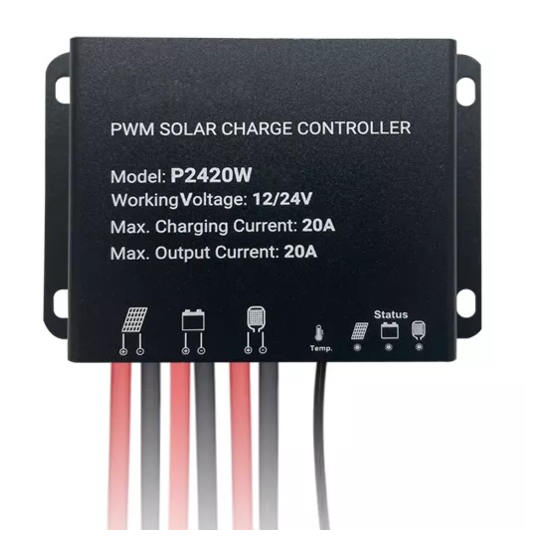

Solar Charge Controller
P2410W/P2420W
1
. Controller Features
1. IP68 waterproof and aluminum shell design to prevent all kinds of corrosion effectively.
2. 12V/24V battery system.
3. LED indication for charge status and load status.
4. DC Load always on.
5. External temperature sensor with temperature compensation.
6. Full range of protection with over-charge, over-discharge, DC load over power, DC load
short circuit and anti-reverse connection.
7.Multiple options available for customization before ex-factory. (Customized cables &
connectors; Default battery type setting; Bluetooth function for PV and battery monitoring).
8. TVS lightning protection.
2

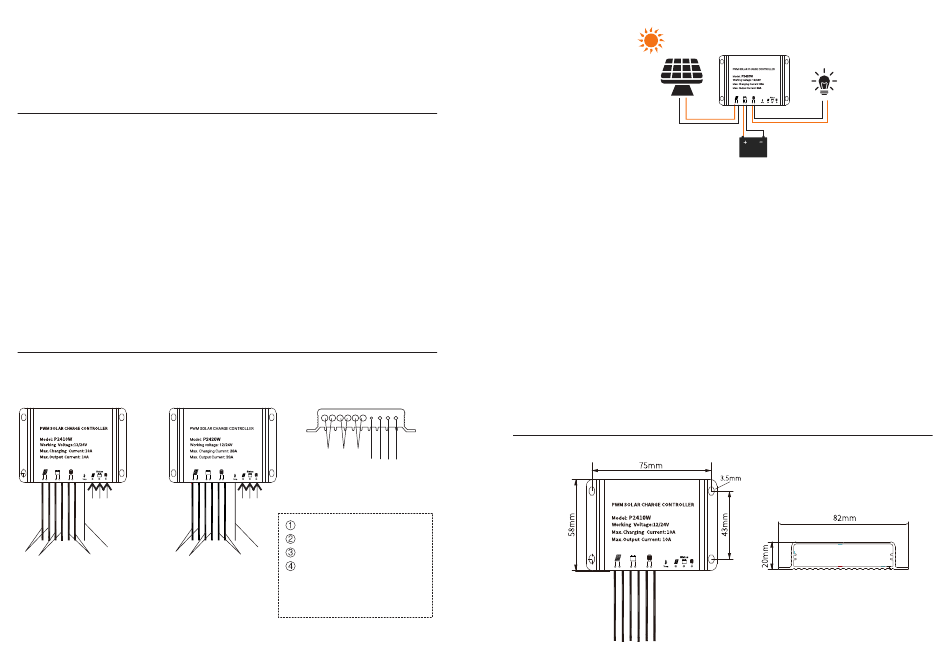

. Device and Wiring Diagram
2.1 Wire and Indicator Description
⑤ ⑥ ⑦
④
①
①
③
② ②
① ② ③
④ ⑤ ⑥ ⑦
⑤ ⑥ ⑦
Solar Input Cables
Battery Cables
DC Load Cables
④
③
External Temperature Sensor
⑤ Solar Charge Indicator
⑥ Battery Status Indicator
⑦ DC Load Status Indicator
2.2 Wiring Connection
-
+
2.3 Wiring Precautions
P2410W/P2420W can be used in 12V/24V battery system. If there is a DC load, please
connect the DC load first, and then the battery. The 3 LED indicators would be lighting on in
turns for twice. The battery indicator and DC load indicator would be on, if the relevant wiring
is good. If any or both indicators not on, then please check if there is any problem with the
connection.
Next, we connect the PV panel wires. If there is sunlight, the PV indicator light will be always
on. In 3-5 seconds, the controller would try to recognize the charging status. The PV indicator
would flash slowly if the solar charge goes well. If not, then please check the solar panel
wiring.
As the DC load is always on, please make sure that the DC load does not exceed the rated
current limited with the controller (10A/20A) before connecting it.
3
. Controller Dimensions
- +
