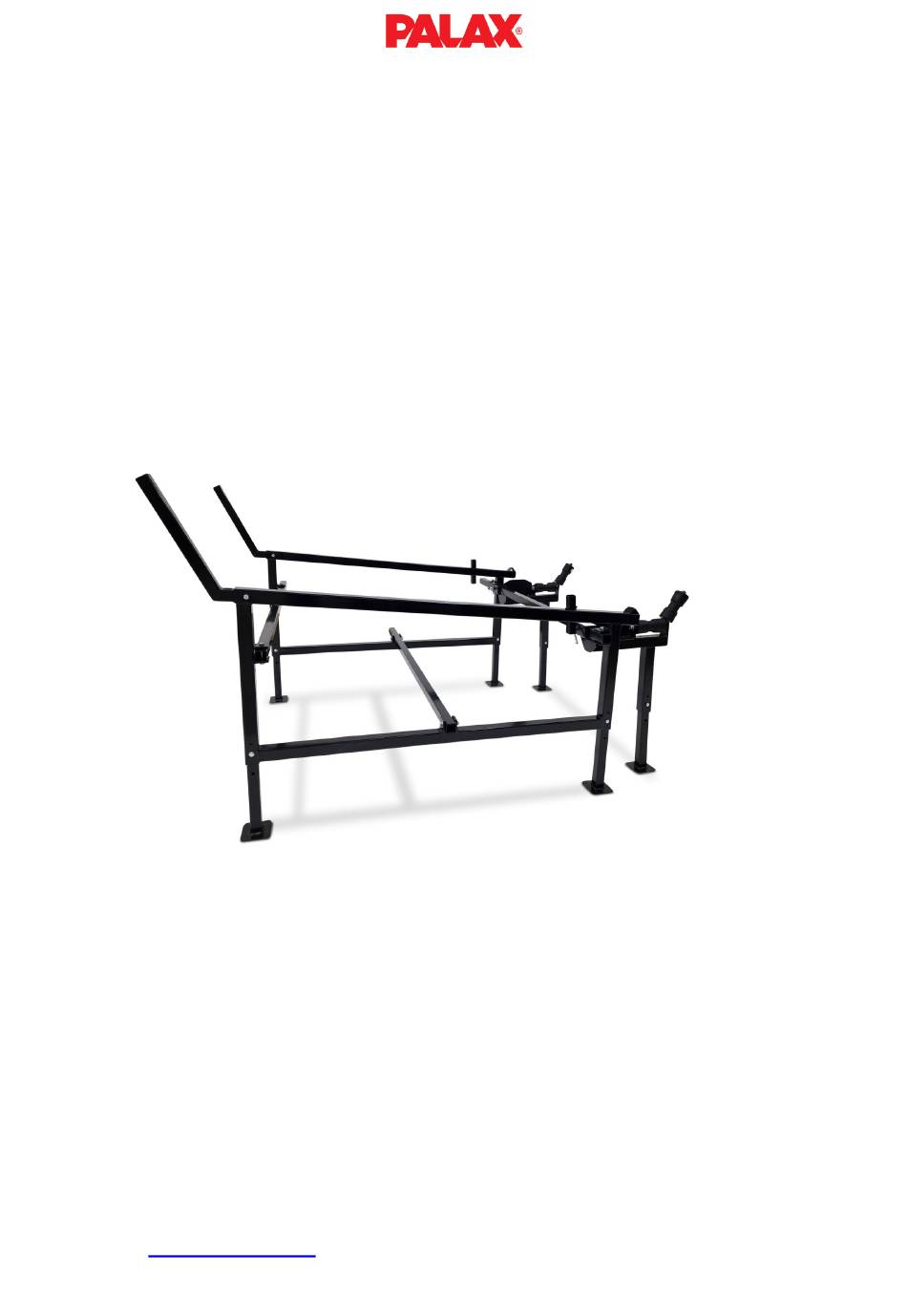

- Page 1 2.0 Serial number _______________________ Year of manufacture _______________________ PALAX Lahdentie 9 61400 Ylistaro, FINLAND Tfn. +358 6 4745100 Fax. +358 6 4740790 www.palax.fi...
-
Page 2: Table Of Contents
IMPORTANT! READ THE USER MANUAL CAREFULLY BEFORE USING THE LOG DECK. SAVE FOR LATER USE. TABLE OF CONTENTS IMPORTANT! ........................... 2 READ THE USER MANUAL CAREFULLY BEFORE USING THE LOG DECK......2 Introduction ..........................3 Customer registration ...................... 3 Declaration of incorporation for partly completed machinery .......... -
Page 3: Introduction
We at Palax are confident that you will be satisfied with your new log rack. It meets all safety requirements imposed by the European Union and carries the relevant CE label. -
Page 4: Declaration Of Incorporation For Partly Completed Machinery
Person responsible for the technical file: Ville Kairus The declaration applies to the following machines: Palax Deck 2.0, firewood processor accessory This party completed machine may only be connected to a suitable Palax firewood processor that meets the requirements of the Machinery Directive. Drive:... -
Page 5: Purpose Of Use

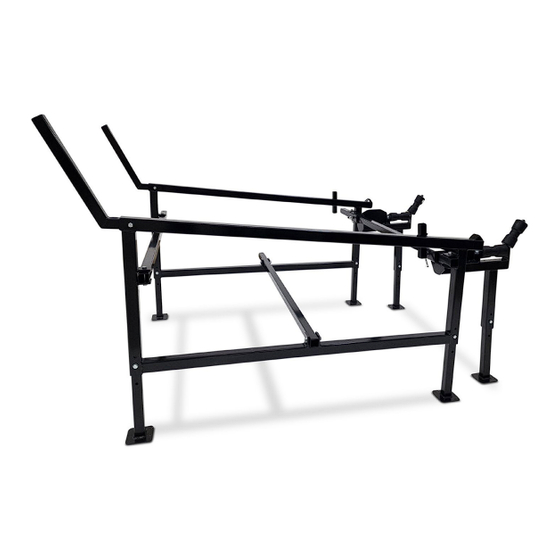

1.3 Purpose of use Palax Deck 2.0 is a safe and easy-to-use device for moving logs onto an input table. 1.4 Machine models Palax Deck 2.0 Maximum load 3,000 kg Available accessories: PX17624222 Palax Log Deck 2.0 6 m3 (new model) PX17624320 Hydraulic infeed roller for log deck 2.0 for C-series... -
Page 6: Safety Instructions
1.5 Safety instructions These safety instructions are general in nature. When handling the machine, you must take into account all other relevant instructions concerning health and safety, road traffic regulations regarding transportation, as well as the provisions of the general legislation. Observing the instructions helps to prevent accidents. - Page 7 E-mail sales@palax.fi Retailer The retailer is a company authorised by TP Silva Oy, which sells and markets PALAX products in its local area. The retailer acts as the recipient in guarantee matters from the buyer. In matters regarding the guarantee, the buyer must contact the retailer from whom the machine was purchased.
-
Page 8: The Guarantee Covers
The guarantee covers • Parts damaged in normal use due to faults in material or manufacture. Reasonable expenses caused by repairing a fault in accordance with the agreement between the • seller or buyer and manufacturer. Faulty parts will be replaced with new ones. A faulty part or parts replaced due to a material fault should be returned to the manufacturer through the retailer. -
Page 9: Installation Of The Machine
2. Installation of the machine 2.1 Delivery inspection Inspect the machine immediately upon delivery. If the product has sustained damage in transit or it is missing components, contact the transport company and retailer immediately. 2.2 Main components of the machine 1. -
Page 10: Placing The Log Rack In The Working Position
2.3 Placing the log rack in the working position 1. Place the machine on an even and solid foundation and adjust it to the correct height using the legs (1). The log rack is at the suitable height when the feed rollers (2) are approximately 5 cm higher than the firewood processor's input conveyor (3). - Page 11 Can also be installed in the other direction, depending on the input of the firewood processor. 1. Place the machine on an even and solid foundation and adjust it to the correct height using the legs (1). The log rack is at the suitable height when the feed rollers (2) are approximately 5 cm higher than the firewood...
-
Page 12: Operating The Machine
3. Operating the machine 3.1 Acknowledging the hazards and responsibilities involved Operators of the machine must familiarise themselves with and observe the instructions in the user manual. Incorrect operation of the machine (for example, modifying the operation of the machine) may compromise the operator’s safety. -
Page 13: Maintenance
4. Maintenance 4.1 Hydraulics After connection, the pressure of the hydraulic system is high. A fault under high pressure may cause the hydraulic oil discharging from the system to penetrate the skin and cause severe injuries. The risk of injury is also present when inspecting the system for leaks. -
Page 14: Technical Specifications
Technical specifications Property Palax Deck 2.0 Width, adjustable 125–185 cm Height, adjustable 84–102 cm Length 210 cm Log rack weight 160 kg Loading capacity 3,000 kg 3.0 - 2020...
