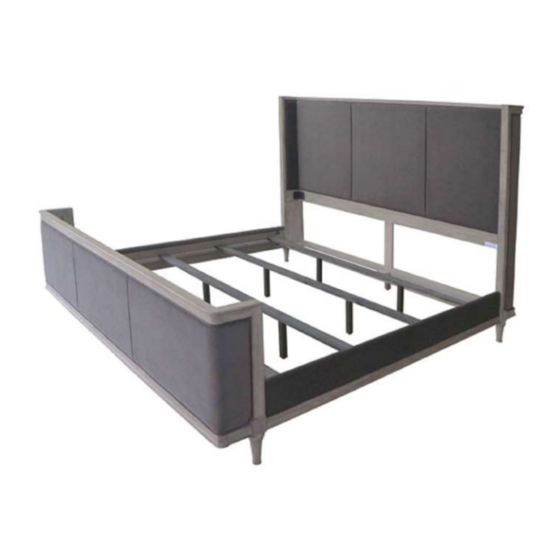

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 223121KW (B1&B2) California King Bed REVISION 0 : 03/10/2020 PAGE 1 OF 6 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
223121KW (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instruction in the same sequence as numbered to assure fast and easy assembly. -
Page 3: Hardware Identification
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store immediately. 2. This product is for home use only and not intended for commercial establishment. HARDWARE IDENTIFICATION Z-B2 (BOX 2) - HARDWARE PACK IS LOCATED IN 223121KW (B2) THREADED BOLT 8PCS (M8 x 100mm - RBW) - Page 4 223121KW (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS 223121KW (B1) - BOX 1 STEP 1 STEP 2 COASTERFURNITURE.COM PAGE 4 OF 6...
- Page 5 223121KW (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS 223121KW (B1&B2) - BOX 1 & BOX 2 STEP 3 STEP 4 COASTERFURNITURE.COM PAGE 5 OF 6...
- Page 6 223121KW (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS STEP 5 STEP 6 COMPLETE COASTERFURNITURE.COM PAGE 6 OF 6...
- Page 7 223121KW (B1&B2) ITEM: INNER SIZE: 73" x 85" 73.1" 76.6" 89.7" 37.8" 72.4" 15.1" 4.7" 62" 9.1" 73.1" 5.5" 5.5" 76.6" 8.3" 73.4" 76.1" 5.5" 73.9" 27" 76.5" NOTE: COASTERFURNITURE.COM...
