Summary of Contents for Platinum Ultimate

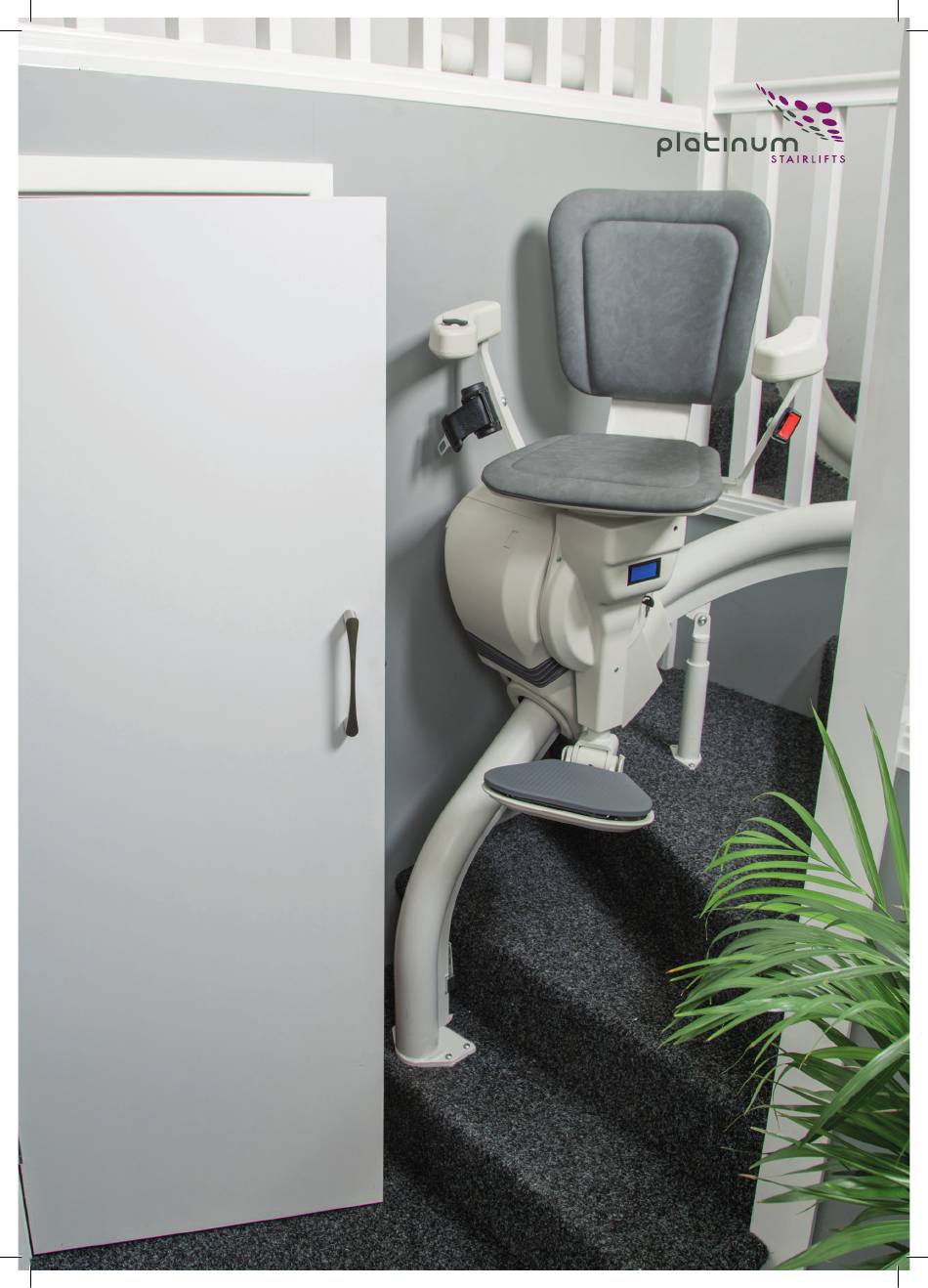

- Page 1 USERGUIDE MODELS STANDARD DUTY • HEAVY DUTY POWER SWIVEL• MANUAL SWIVEL Please retain this guide for future reference...
-
Page 2: Table Of Contents
Carelessness causes fire Upholstery material has been tested Upholstery material has been tested for compliance with BS 5852 for compliance with BS 5852 Platinum Stairlifts Ltd Platinum Stairlifts Ltd Unit 10, The Crossings Unit 10, The Crossings Crosshills Business Park... - Page 3 INTRODUCTION THANK YOU FOR CHOOSING PLATINUM STAIRLIFTS We have designed our range of Platinum stairlifts so you can For future reference, please keep this guide in a safe place. continue to live in the comfort of your own home. It is important that this stairlift is kept plugged in and...
- Page 4 ABOUT THE LIFT No. Meaning Arm rests (fold up and down) Direction controller (see note) Retractable safety belt Manual swivel lever Seat (folds up and down) Safety limit covers Footplate (folds with seat) Key switch Status display Mains power/charger connection Charging point Remote control Note...
-
Page 5: Controls
CONTROLS CONTROLS Mains Power/Charger Connection (10) The seat can be swivelled to allow easy access when the lift is at the top of the stairs. To rotate the seat, press one of The stairlift should be plugged in at the nearest mains the manual swivel levers (4) and swivel towards the landing socket. -
Page 6: Charging Points & Remote Controls
CHARGING POINTS & REMOTE CONTROLS CHARGING POINTS & REMOTE CONTROLS Charging Points (11) If the arrow buttons on the remotes make the lift move in the opposite direction to what is indicated, The charging points are located at the top and bottom of then the ‘hand’... -
Page 7: How To Use Your Stairlift
HOW TO USE YOUR STAIRLIFT Getting Off The Chair HOW TO USE YOUR STAIRLIFT The chair MUST be in a position for you to get off safely. Before you use your stairlift, please read all of these Please bear in mind that this may mean swivelling the instructions carefully. -
Page 8: Cleaning & Maintaining Your Stairlift
CLEANING & MAINTAINING YOUR STAIRLIFT CLEANING & MAINTAINING YOUR STAIRLIFT The upholstery is resistant to most household stains, many To maintain safe and reliable operation, your stairlift of which can be wiped off fairly easily. Regular cleaning with needs to be regularly serviced and safety inspected. a damp soapy cloth or sponge, followed by a wipe with a Your local stairlift servicing centre will be pleased damp clean cloth will help the upholstery maintain a fresh... -
Page 9: System Status Codes
MESSAGE MEANING Stairlift is on charge and everything is ok. Lift should operate normally. PLATINUM STAIRLIFTS No Power. Check key is in key switch and it is turned to the ON position. Check batteries are in good working order NO DISPLAY and are connected correctly. -
Page 10: To Pair A Controller To The Lift
SYSTEM STATUS CODES Down arrow pressed on remote control. Lift will move in DOWN direction until it reaches the bottom charging strip. DOWN CALL Display may say MOVING LEFT or MOVING RIGHT, this is dependent on the side of the staircase the lift is installed in. Park button pressed on remote control. -
Page 11: Example Of A Certificate For Test And Examination After Installation
EXAMPLE OF A CERTIFICATE FOR TEST AND EXAMINATION AFTER INSTALLATION CERTIFICATION EXAMPLE OF A CERTIFICATE FOR TEST AND EXAMINATION Example of a certificate for test and examination after installation AFTER INSTALLATION... - Page 12 EXAMPLE OF A CERTIFICATE FOR TEST AND EXAMINATION AFTER INSTALLATION Left blank intentionally...
-
Page 13: Problems & Troubleshooting
PROBLEMS & TROUBLESHOOTING PROBLEMS & TROUBLESHOOTING Mains Power, Battery Power And To change batteries in direction controller Power Cuts Remove direction module from arm. The mains power supplies power to a set of large internal batteries. These batteries then power the motor, which moves you up and down the stairs. -
Page 14: Releasing A Trapped User And Calling Out An Engineer
RELEASING A TRAPPED USER AND CALLING OUT AN ENGINEER RELEASING A TRAPPED USER AND CALLING OUT AN ENGINEER Releasing A Trapped User Using a 4mm hex driver where indicated move the seat so the user is facing towards the staircase in the If a user becomes trapped on the stairlift for any reason, up direction. -
Page 15: Technical Information
Any modifi cations which have not been expressly approved by the manufacturer may void the warranty and may cause damage. Your stairlift should be inspected and maintained by a Platinum approved service engineer. Upholstery Carelessness with matches, cigarettes and so on can cause fi re. - Page 16 WIRING DIAGRAM Final limit Overspeed governor Out of level error GREY FINAL LIMIT SAFETY LOOM OSG SAFETY LOOM LEVEL MOTOR AND ENCODER BLACK POWER PICK UP/CHARGE CONTACTS Messages relating MULTI-CORE CABLE Off charge to level pot BLUE ORANGE / BLUE Main motor stall Right side MAIN MOTOR...
- Page 17 NOTES...
- Page 18 NOTE...
- Page 19 NOTES...
- Page 20 Now press the middle left or middle right hand button to select the hand of the chair. Platinum Stairlifts Ltd Unit 10, The Crossings, Crosshills Business Park, Crosshills, Keighley, BD20 7BW, West Yorkshire, United Kingdom. +44(0)1535 631 177 • www.platinumstairlifts.com...
Need help?
Do you have a question about the Ultimate and is the answer not in the manual?
Questions and answers
Wie kann ich den treppenlift manuell bewegen?
To manually operate the Platinum Ultimate stairlift:
1. Use the remote control:
- To move the stairlift without a passenger or assist a seated passenger, press and hold the appropriate direction button on the remote control.
2. Use the swivel seat:
- The manual swivel seat locks into 3 positions.
- To swivel, press the swivel lever, rotate the seat, and release the lever to lock it in position.
3. Use the onboard controls:
- Sit on the seat, fasten the safety belt, and place your feet on the footplate.
- Press and hold the direction controller to move the stairlift up or down.
4. Manual move via the control panel:
- Access “MANUAL MOVE OPTIONS” from the top-level menu.
- Use the bottom left or right buttons to select “ROTATE.”
- Press the middle left or right buttons to rotate the chair manually.
- Stop when the chair is level.
Always ensure the arms are down and the seat is locked before travel.
