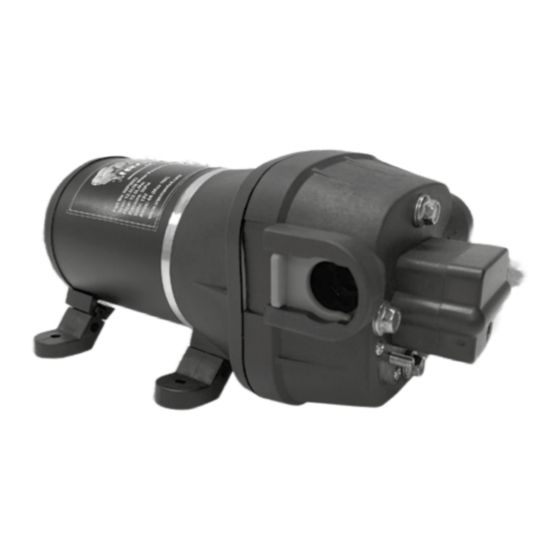

IWP0023
12.5 Ltr Pressure
Water Pump
WARRANTY
Owner's Manual
IMPORTANT: Please read all procedures and precautions before installing and using the Ironman 4x4
Pressure Water Pump. If you have any questions please contact our customer service department.
www.ironman4x4.com
Telephone: 1300 731 137
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IWP0023 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ironman4x4 IWP0023

  • Page 1 IWP0023 12.5 Ltr Pressure Water Pump WARRANTY Owner’s Manual IMPORTANT: Please read all procedures and precautions before installing and using the Ironman 4x4 Pressure Water Pump. If you have any questions please contact our customer service department. www.ironman4x4.com Telephone: 1300 731 137...

  • Page 2: Water Inlet

    Pressure Water Switch Pump Attach Outlets Fittings Straight Straight Male Male Barb Threaded Barb 90 Degree Filter with Pull retaining clip back and insert required Male Barb Male Barb barb then reposition clip to secure. Page 2 of 8 www.ironman4x4.com...

  • Page 3: Performance Specifications

    Specifications CONSTRUCTION Body - Material Mounting Feet - Material Rubber Inlets 14mm OD - Quick Release DIMENSIONS - EXTERNAL Dimensions - (cm) 21 x 10.5 x 10.1 Mounting Dimensions - Centre of Feet 8.4 x 9.1cm Product Weight - Incl accessories (kg) 1.9 kgs ELECTRICAL Voltage...

  • Page 4: Operation

    Note: If the water supply is below the level of the pump, fitting a Non Return Valve is recommended to prevent water running back to the water supply. Page 4 of 8 www.ironman4x4.com...
  • Page 5 Dimensions Pump Filter and Attachments 24.60mm 24.60mm 24.60mm 82.00mm 53.30mm 70.00mm Page 5 of 8...
  • Page 6 50-70 15.2-21.3 70-100 21.3-33.5 *Minimum Wire Size for a 10% voltage drop on a 12 VDC, 10Amp Circuit Length is the distance from the power source to pump and back to ground. Page 6 of 8 www.ironman4x4.com...

  • Page 7: Troubleshooting

    Troubleshooting Winterizing: If water is allowed to freeze in the system, serious damage to the plumbing and the pump may occur. Failures of this type will void the warranty. The best guarantee against damage is to completely drain the water system. SYMPTOM POSSIBLE CAUSE CURE...
  • Page 8 www.ironman4x4.com...
