Summary of Contents for Exit Light ESC-200P

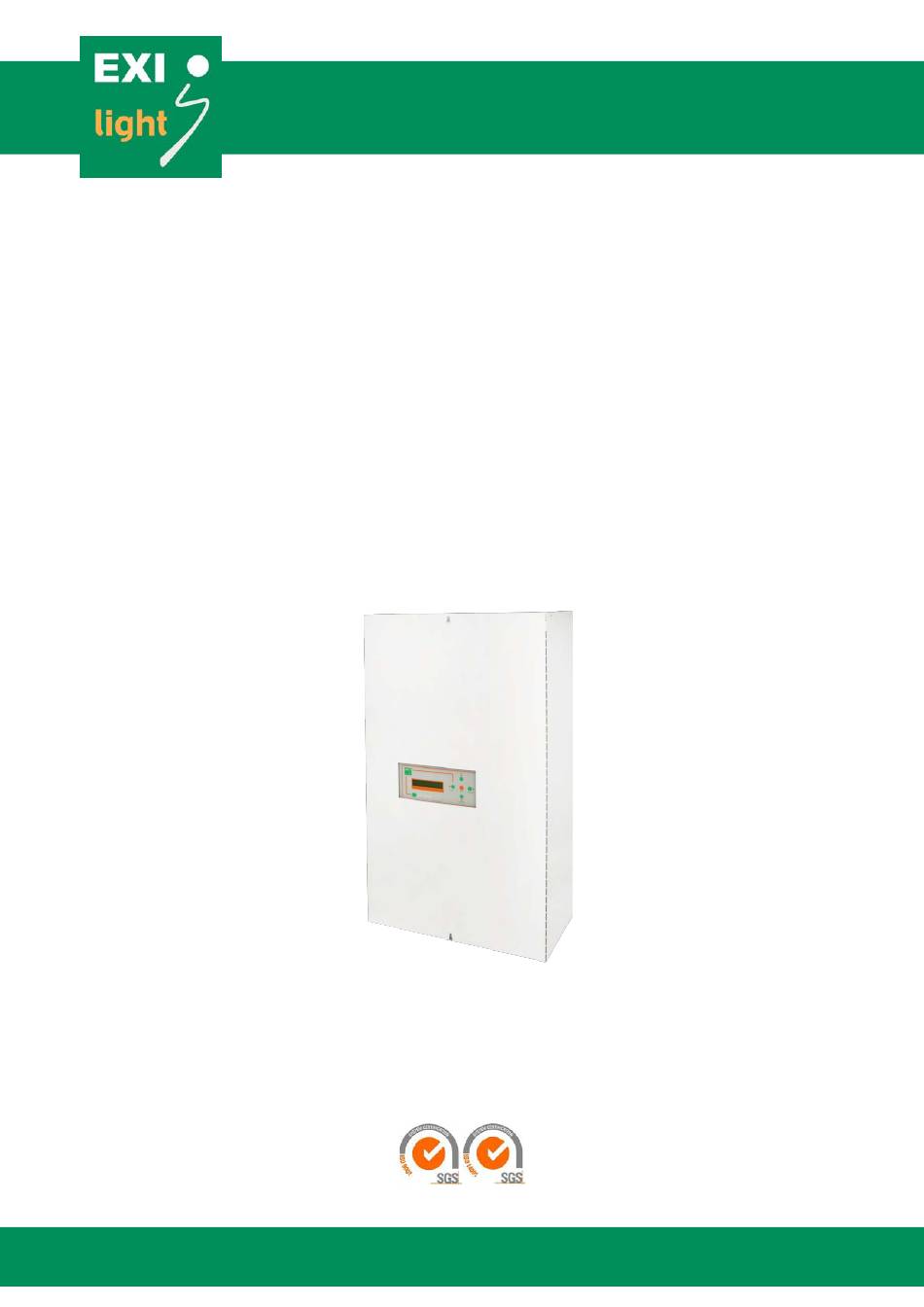

- Page 1 MANUAL Addressable Combination System ESC-200P Hermiankatu 6–8, 33720 Tampere | +358 10 773 5400 | info@exilight.com |...
-
Page 2: Quick Start
MANUAL Quick Start 1. Install the panel using mounting holes. 2. After luminaires are installed (please note that the luminaires are suited for ESC-200P system), connect cables of loops to central panels. • Panel has 10, 16 and 24 sections for addressable luminaires. These are divided into two loops (L1 and L2), half-by-half: 5 + 5, 8 + 8 and 12 + 12. - Page 3 One is to be attached in to luminaire and one to electrical design documentation. 230 V AC 230 V AC emergency panel feed Addressable outputs light output Un = 65 V DC ESC-200P PANEL Hermiankatu 6–8, 33720 Tampere | +358 10 773 5400 | info@exilight.com |...
- Page 4 Jumpers X317 and ON). If panel is to X318: Do not change. be connected to By default they are earlier generation connected and enable of ESC-200P set communication on line. filter OFF. Internal wiring Battery connector External control loop 2 dry...
- Page 5 MANUAL Operating the ESC-200P Panel There is a 2 line LCD display (20 char. / line) and five operating buttons: “LEFT”, “RIGHT”, “UP”, “DOWN” and “SET”. Under the “SET” button there is a menu of rarely needed but never the less important functions.
- Page 6 MANUAL 1. Normal status Everything Ok: The display shows date and time “Everything Ok” “HH:MM” Error code The display shows the latest error that has not been set off The top line in the display shows the amount of errors and the lower line shows the appliance ID (D), the loop (L) and the error code (E).
- Page 7 18. Print appliance ID 19. Event Log You can connect your PC with the ESC-200P and print out the events via Ethernet converter. 20. Remove appliance When removing appliance from Loop 1 or Loop 2 you also have to remove that appliance from the appliance list.
-
Page 8: Changing The Operating Language
Communication should be Ok if emergency luminaires are set ON with this test Changing the Operating Language If the ESC-200P emergency lighting center is delivered to you with settings in Finnish, here is how you can change the language to English. - Page 9 MANUAL Picture 1. Picture 2. Hermiankatu 6–8, 33720 Tampere | +358 10 773 5400 | info@exilight.com |...
- Page 10 If the Error Code returns to the display and it’s a real Error then: Find out what the Error Code stands for (Picture 5). Find out where in the building that Emergency or Exit light is located and go check the lights status.
- Page 11 MANUAL Picture 5. You can see what the Error Code actually means by pushing ”LEFT” button. Picture 6. Set off the Error Code by pushing ”RIGHT”. Hermiankatu 6–8, 33720 Tampere | +358 10 773 5400 | info@exilight.com |...
- Page 12 MANUAL Picture 7. When the Error is set off the display will show “Everything OK”. Remote controlling the Emergency lights In case that there are some Emergency lights lit along with the Exit lights: Make sure that the Remote Control is not on (Picture 8.). Remote controlling the Emergency lights is operated with NC contact.
- Page 13 MANUAL Setting the luminaire location Connect the panel to your PC. Open EXIL2 software and choose the right port and language. Press the read button. After the software has read all the addresses you can write or change the locations. Maximum letter is 16 in one location. Write button write the locations to the panel.
- Page 14 MANUAL Picture 9. Luminaire location setting PC software. Hermiankatu 6–8, 33720 Tampere | +358 10 773 5400 | info@exilight.com |...
- Page 15 Checking the LEDs makes the Emergency light blink briefly about once a day. The ESC-200P Center makes the battery test every month. The Center makes the luminaires to work with batteries during the test. The voltage (65VDC) still remains in the line.
- Page 16 9. For example AMU can be used. Picture 9: 230V emergency light outputs control ESC-200P design and cabling principles In order for the proper functioning of system, please use following design and cabling principles: • Always use shielded FRHF-cable.
- Page 17 MANUAL Example cabling • TVK is same as Control Panel ESC-200P • Cabling FRHF • AV is same as AMU Hermiankatu 6–8, 33720 Tampere | +358 10 773 5400 | info@exilight.com |...
-
Page 18: Service And Maintenance
MANUAL Service and Maintenance Service and maintenance of system has to be conducted by person with professional and knowledgeable person. Constant maintenance is needed in order to ensure the proper function of the system. Warranty Warranty terms under the supplier’s standard terms. In case of system faults always consult your sales representative: EXILIGHT OY Hermiankatu 6–8 A... - Page 19 MANUAL ESC system error codes Table 1: Luminaires’ errors ERROR ERROR REMARK CODE Battery disconnected Not to be noted in central battery use. Short circuit in battery Not to be noted in central battery use. Led disconnected Short circuit in LED Battery condition fail Not to be noted in central battery use.
- Page 20 MANUAL This page is intentionally left blank. Hermiankatu 6–8, 33720 Tampere | +358 10 773 5400 | info@exilight.com |...
- Page 21 EXILIGHT OY www.exilight.com info@exilight.com Tampere Espoo Hermiankatu 6–8 A Tekniikantie 12 FI-33720 Tampere FI-02150 Espoo Finland Finland +358 10 773 5400 +358 10 773 5404...
