- Page 2 BRIGITTE ROBE T15867 Assembly instructions Actual product size: H185 x W101.5 x D56cm Need Help? With: Assembly instructions Missing or damaged parts CALL: 0333 777 8999 IMPORTANT ─ RETAIN FOR FUTURE REFERENCE Produced in India for Next Retail Ltd. T15867-2022-V1...
-

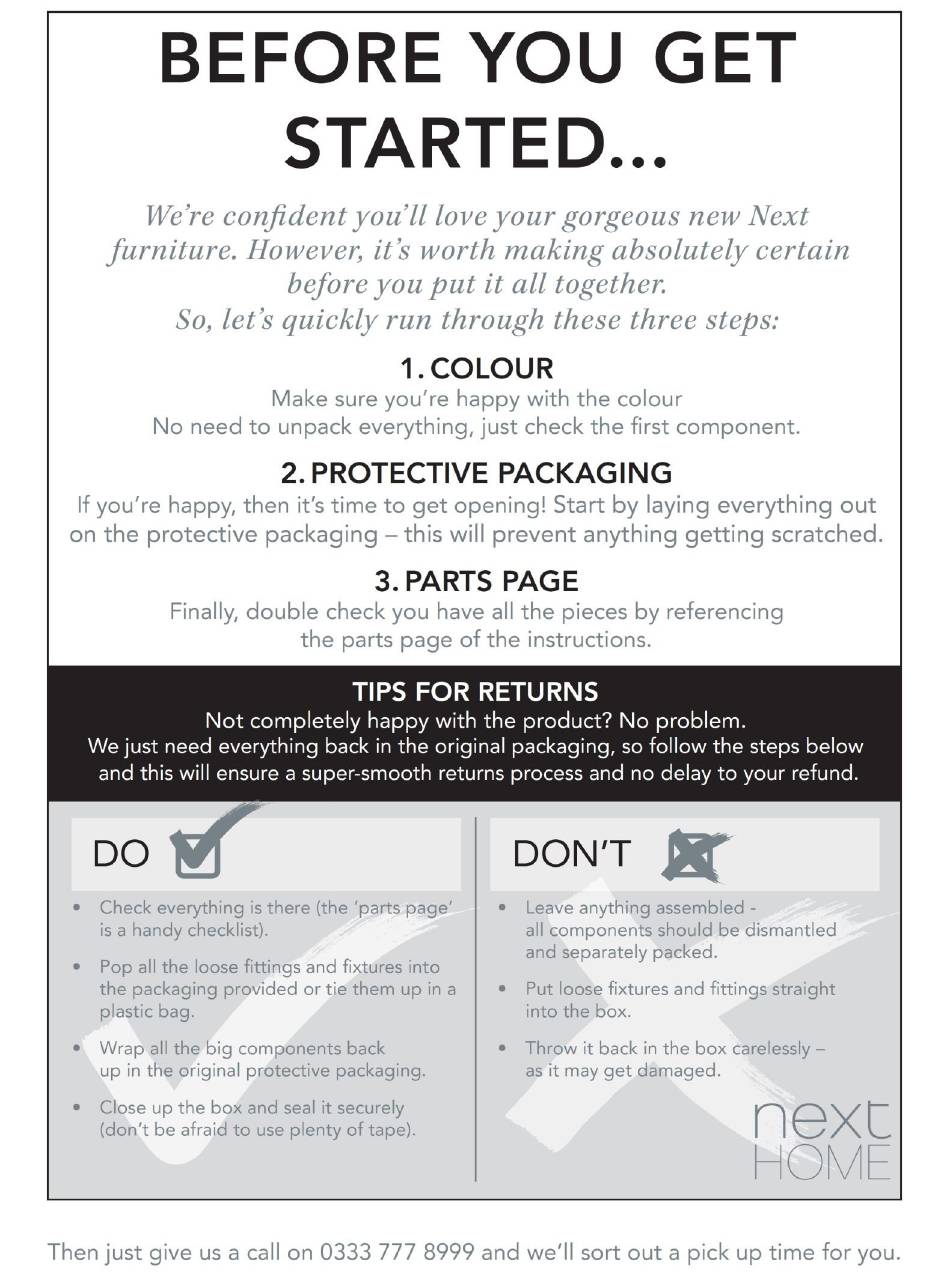

Page 3: Before You Start
To view our full furniture range please visit mark the furniture. www.next.co.uk Never allow any kind of liquid to remain on your furniture. Absorption can cause finishes to de-laminate and or stain. Produced in India for Next Retail Ltd. T15867-2022-V1... -
Page 4: Getting To Know Your Product
BRIGITTE ROBE T15867 Assembly instructions GETTING TO KNOW YOUR PRODUCT Produced in India for Next Retail Ltd. T15867-2022-V1... - Page 5 GETTING TO KNOW YOUR PRODUCT SIZE DESCRIPTION 95.9 X 165.7 cm 51.5 X 165.7 cm 90.3 X 40 cm 101.5 X 56 cm 99.5 X 55 cm 99.5 X 55 cm 167.5 X 76.2 cm Produced in India for Next Retail Ltd. T15867-2022-V1...
- Page 6 Assembly instructions Fixtures and fittings supplied (actual size) Dimensions *Extra 6 x 30mm 6 x 35mm 6 x 40mm Ø6 x Ø16 Fixtures and fittings supplied (not to scale) Visual Dimensions *Extra Produced in India for Next Retail Ltd. T15867-2022-V1...
- Page 7 Step 2 - Place the door with frame and tighten the allen bolt with washer from inside of wardrobe to connect the door frame with side panels assembly. tighten bolt (C- 6x40) with washer (D) DETAIL A SCALE 1 : 1 C x 12 Nos D x 12 Nos Produced in India for Next Retail Ltd. T15867-2022-V1...
- Page 8 Step 4 - tighten the allen bolt with washer from bottom side of bottom part to connect assembly with bottom. DETAIL A SCALE 1 : 1 tighten bolt (B- 6x35) B x 10 Nos with washer (D) D x 10 Nos Produced in India for Next Retail Ltd. T15867-2022-V1...
- Page 9 Step 6 - Tighten the allen bolt with washer from inner side of wardrobe. DETAIL A SCALE 1 : 1 tighten bolt (A- 6x30) with washer (D) A x 2 Nos D x 4 Nos Produced in India for Next Retail Ltd. T15867-2022-V1...
- Page 10 Step 7 - Place the self panel (removable ) at given rest edge of assembly . Step 8 - Place the Round rail (removable ) at given rail blocks of sides of assembly . Produced in India for Next Retail Ltd. T15867-2022-V1...
- Page 11 BRIGITTE ROBE T15867 Assembly instructions Step 9 - Fully tighten all the bolts and close the door . 56cm 101.5cm 185cm Produced in India for Next Retail Ltd. T15867-2022-V1...
- Page 12 Fit anti-tip kit here Note: Fit the anti tip on both top corners of the rear side of the product and fix the other end of the anti tip to wall. Produced in India for Next Retail Ltd. T15867-2022-V1...
