Summary of Contents for ADDAC System ADDAC102

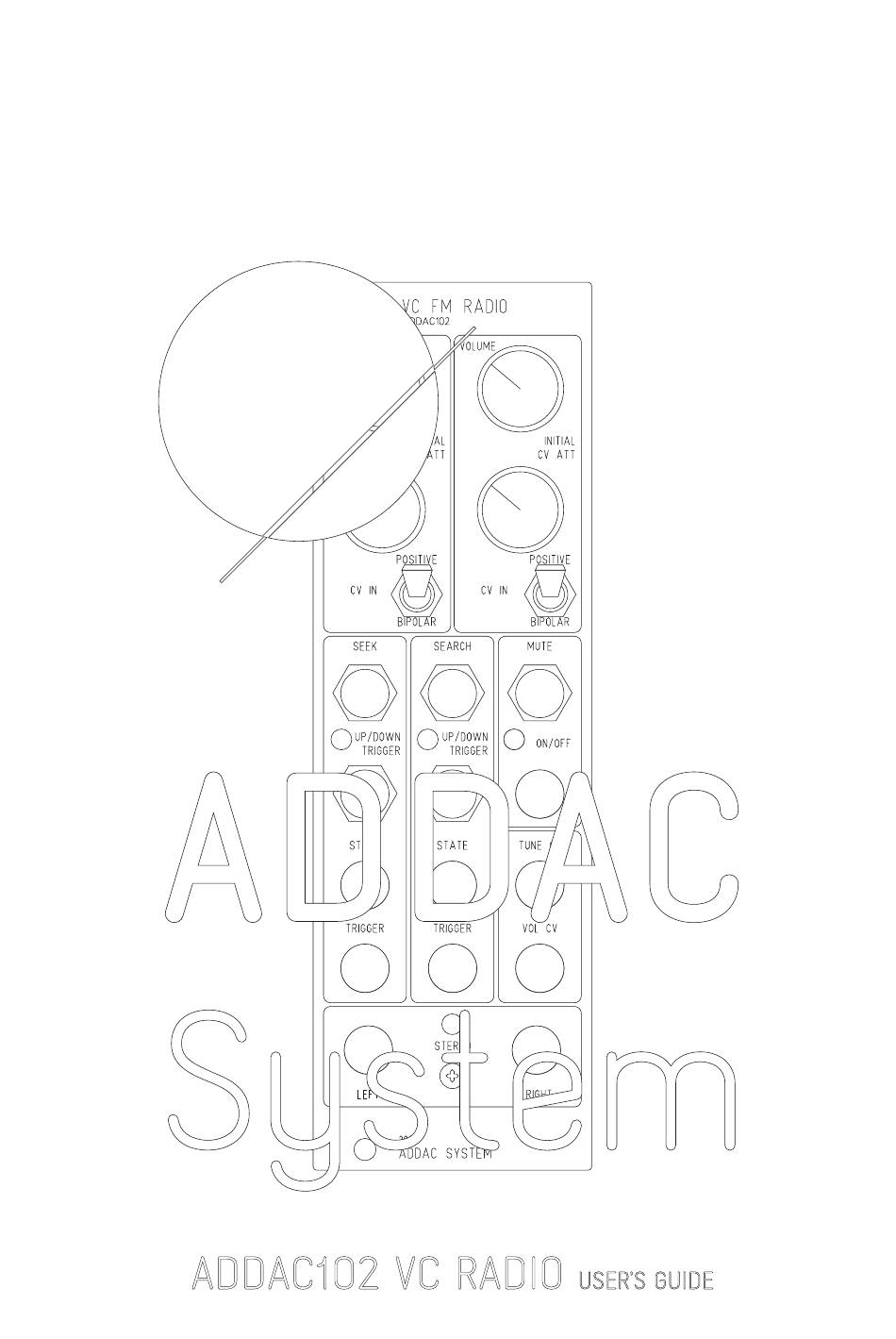

  • Page 2 ADDAC102 VC RADIO USER’S GUIDE André Gonçalves. February.2012 INDEX RESET TUNE VOLUME SEEK SEARCH OUTPUTS TECH SPECS...

  • Page 3: Reset Function

    ADDAC102 VC RADIO USER’S GUIDE RESET FUNCTION RESET is used to restart the digital radio inside. If your radio doesn’t start up immediately after powering your system, or if it stops during playback: PRESS BOTH SEEK & MUTE BUTTONS It will startup after 4 seconds.

  • Page 4: Tune Function

    ADDAC102 VC RADIO USER’S GUIDE TUNE FUNCTION INITIAL KNOB This is the Initial Tunning point, from 86 to 106 Mhz if set to ex.96 then CV only searches between 96 to 106 Mhz CV ATT(enuator) KNOB This is the CV Atenuator knob...

  • Page 5: Volume Function

    ADDAC102 VC RADIO USER’S GUIDE VOLUME FUNCTION INITIAL KNOB This is the Initial Volume setting if set half way then CV only affects the remaining range CV ATT(enuator) KNOB This is the CV Atenuator knob Behaves like a volume knob:...
  • Page 6 ADDAC102 VC RADIO USER’S GUIDE MUTE STATE MUTE is an ON/OFF state To change the MUTE STATE either: Press the SWITCH Button Use a GATE/TRIGGER input signal When an action is received: if MUTE ON then OFF if MUTE OFF then ON...

  • Page 7: Seek Function

    ADDAC102 VC RADIO USER’S GUIDE SEEK FUNCTION The SEEK FUNCTION trys to seek for the next “good” station STATE This function has 2 states, UP and DOWN: UP - seeks for a higher frequency station DOWN - seeks for a lower frequency station BOTH STATES WRAP AROUND, meaning that if for ex.

  • Page 8: Search Function

    ADDAC102 VC RADIO USER’S GUIDE SEARCH FUNCTION The SEARCH FUNCTION goes UP or DOWN in frequency STATE This function has 2 states, UP and DOWN: UP - advances to the higher tunning frequency DOWN - regresses to a lower tunning frequency BOTH STATES WRAP AROUND, meaning that if for ex.
  • Page 9 ADDAC102 VC RADIO USER’S GUIDE STEREO LED The STEREO LED goes: ON if reception is in STEREO OFF if reception is in MONO OUTPUTS There’s 2 Audio Outputs: LEFT and RIGHT LEFT OUTPUT RIGHT OUTPUT ADDAC SYSTEM page 9...
  • Page 10 USER’S GUIDE ADDAC102 VC FM RADIO February.2012 ADDAC SYSTEM...
