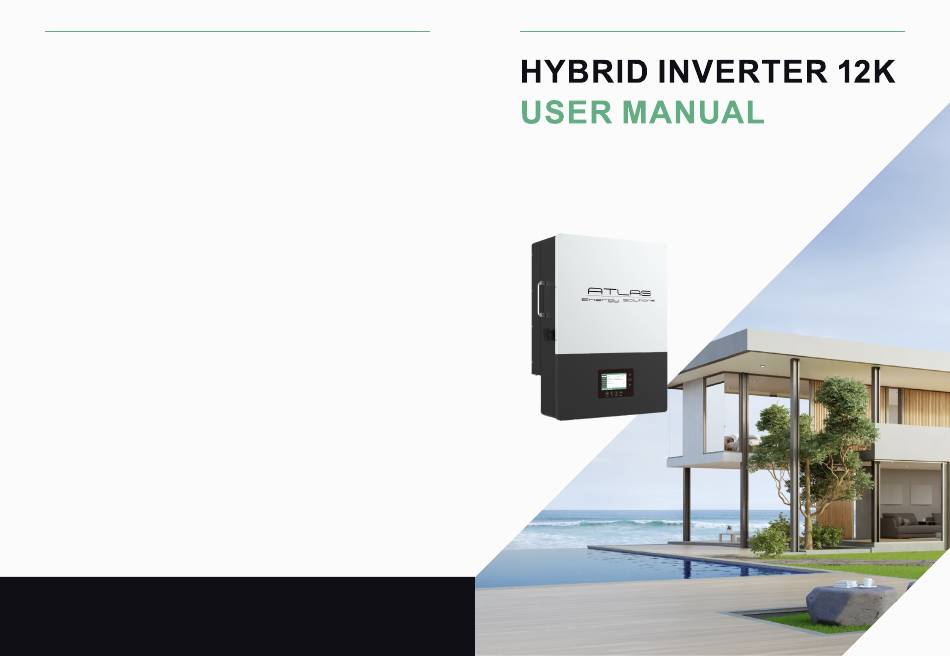

- Page 1 Version: EN-UM-1.0-00 Atlas Energy Solutions 848 W 1440 N suite 120 Logan, UT 84321 1-435-233-6115...
-
Page 2: Table Of Contents
CONTENTS Third party RS485 communication 3.10.4 Operation Guide About This Manual Safety Operation Mode Safety Instruction 4.1.1 Self-usage mode (Default) Brief Introduction 4.1.2 Charge first mode System Solution 4.1.3 AC charge mode Installation Rapid Shutdown Packaging List LCD Display Location Selection and Installation Viewing information and alarm/fault record 4.3.1 Requirements for installation location... -
Page 3: Safety
Safety Avoid misoperation and Inappropriate Usage 1.1 Safety Instruction All the work of this product (system design, installation, operation, setting , configuration General Safety Instructions and maintenance must be carried out by qualified personnel as required. The inverter has been designed and tested strictly according to international safety regulations. Read all safety All connections must be in accordance with local and national regulations and standards. -
Page 4: Brief Introduction
Brief Introduction Installation System Solution Packaging List & Storing This product and relevant system is suitable for following system applications (system diagram): Packaging List When the packaging is unpacked, the inner components should be the same as described in below packaging list. A. -
Page 5: Installing The Inverter
c. Never install the inverter in a place with direct sunlight, rain or snow. Please refer to below figure and select a well Step1. Mark the positions of drill holes with the mounting bracket, then drill 4 holes of 8mm(5/16inch) diameter shaded place or install a shed to protect the inverter from direct sunlight, rain and snow etc. -
Page 6: Connection Overview
Overview of the cable box Connection Overview 3.3.1 System Connection The system connection diagram is as below( for US version): Geneartor breaker L1 L2 L1 L2 L1 L2 PV Breakers a). DRM port(Applied only in AU) b). Battery communication port(CAN&RS485) please check Chapter 3.5.2 for Pin definition Battery Breaker c). -
Page 7: Battery Connection
Battery Connection 3.5.1 Battery power cable connection 1. The inverters has triple MPPTs. For MPPT1, users can connect two strings. For MPPT2 and Cable Requirement: MPPT3, users can connect one string. Model Cable Size Minimum Voltage Torque for cable connection OT ring 2. -
Page 8: Grid&Eps Load Connection
After battery power cable and communication cable connection, users need to enter Advanced setting and 3.6.2 Grid and EPS load connection for split-phase service choose Battery type and brand on the inverter LCD Connection diagram for 120/240V is as below. The connection diagram for 120/208V split phase service is roughly the same except that generator is not supported. -
Page 9: Ac Cable Connection
3.6.3 AC cable connection Cable Requirement: Cable Diameter Minimum Voltage Current Cross-section Torque for cable connection OT ring CT 1 100A 6-7mm 600V 3-2AWG(25-35mm ) 41(N.M) RNB38-10S TO PCS 9-10mm 41(N.M) RNB100-10 200A 2/0-3/0AWG(70-85mm ) 600V CT 2 TO Grid a. -
Page 10: Working With Generator
Generator Connection-Whole Home Backup PV input Meter or CT Basic Utility Meter MODBUS addr Meter type Charge Kw. h Vpv start (V) CT ratio GRID 7 9 8 6 6 Discharge L1 L2 L1 L2 EPS output 480r/kw. h 10A Offgrid output Micro-grid without Battery... -
Page 11: Generator Startup And Stop Settings
3.7.2 Generator Startup and Stop settings AC Coupling Installation Connection The inverter supports AC coupling connection with existing grid-interactive solar system. The existing solar system is connected to the inverter's EPS port. Basic Bat charge control Use SOC % Use Bat V Bat charge current limit(A) Charge Connection for AC coupled solar system... - Page 12 What is frequency shifting power reduction? All UL1741SA compliant grid-interactive inverter has the Frequency-Watt feature, which requires the grid- interactive inverter to reduce power with the increasing of grid frequency when grid frequency is over 60Hz. The power will drop to zero before the over frequency trip threshold is reached. When the Luxpower hybrid inverter requires the grid interactive inverter to reduce power, it simply shift the output frequency up a bit, the grid-interactive inverter will limit its output power accordingly after sensing this frequency shift.
-
Page 13: Monitor System Setup
Please put the CAN communication PIN to on status for the first and the end inverter 3.10.2 Setup the monitor system Parallel line(n to 1) The max parallel quantity is 10, so 2<n<10 1. Sign up an account on the mobile phone APP or Website 2. -
Page 14: Third Party Rs485 Communication
Please download the following guides for setting up WiFi dongle and monitoring account at 4. Operation Guide https://www.luxpowertek.com/download/ 4.1 Operation Mode Document Reference: The inverter has different working mode to meet customers' various demands, the working modes are as below: 1. -
Page 15: Charge First Mode
4.1.3 AC Charge Mode 4.1.2 Charge First Mode Users can charge battery with grid power when electricity price is cheap, and discharge battery power to supply load or The priority order of solar power usage will be Battery >Load >Grid. During Charge Priority time period, load is first supplied with grid power. -
Page 16: Lcd Display
4.3 LCD Display Fault/Alarm Information Touching the bell icon at the bottom of the screen, you'll see all current and historical fault & warning information on Users can view inverter running status, real time power, daily and accumulated energy information conveniently on inverter this page. - Page 17 b. Charge setting Grid peak-shaving & Grid peak-shaving power(kW): Bat charge control: Users can decide to use SOC or BatV to Is used to set the maximum power that the inverter will draw control charge and discharge logic depends on battery type. Basic Grid peak-shaving Peak-shaving power(kW)
-
Page 18: Start-Up And Shut Down The Inverter
4.4 Start-up and shut down the inverter 5.3 Troubleshooting Based On LCD Displays Once there is any warning or fault occurring, users can troubleshoot according to the LED status and 4.4.1 Start up the inverter the warning/fault information on the LCD. Step1. - Page 19 Hardware level over current Restart inverter, if the error still exists, contact 1. Check if the communication cable is connected Hard over curr Luxpower service or your inverter supplier. protection triggered correctly and in good condition. Inverter fails to communicate with Meter com failure Voltage between N and PE is the meter...
-
Page 20: Fan Replacement
5.4 Fan replacement c. Loosen the screws and remove them Please check and clean the fans regularly. The recommended period is 6 months. Please replace the fan following up the below diagram if there is problem with the fans. Turn off the system and wait for more than 5 minutes before disassembling the machine. -
Page 21: Annex: Technical Data
6. Annex: Technical Data 3. In this page, can activation the Rule21 function.Setting the value in the corresponding blank. Before setting, you can read the default value first, and then set the parameter of the function that needs to be Remote control inverter on/off and modify parameter settings modified according to the parameter setting range provided in the next chapter 8.2 The inverter have the following functions: Remote receive message from the utility or its agent to start or... -
Page 22: High Voltage And Low Voltage Trip
6.2.2 High Voltage and Low Voltage Trip 6.2.5 Voltage / Var Mode ( Q(V)) The reactive power is controlled as a function of the grid voltage. The parameterize-action is carried out Required settings Default Minimum Maximum Parameter name in accordance by means of a reactive power/voltage characteristic curve. -
Page 23: Active Power-Reactive Power Mode ( Q(P))
6.2.6 Active Power-Reactive Power Mode ( Q(P)) 6.2.8 Frequency-Watt (FW) Minimum Maximum Parameter name Default Value Adjustable Range Adjustable Range Minimum Maximum Active Power-Reactive Parameter name Default Value Disable Adjustable Range Adjustable Range Power Mode Frequency-Active 100%Pn P2+10%Pn 100%Pn Disable Power Mode 50%Pn 40%Pn... -
Page 24: Active Power Limit Mode
PV Input data Max. usable input current(A) 25/15/15 Max. short circuit input current(A) 34/17/17 Start input voltage(V) When the grid voltage exceeds V1, the output active power varies with the grid voltage. Startup voltage(V) Full power MPPT voltage range(V) 230-500 Minimum Maximum DC nominal voltage(V) MPPT tracker...
