Preface This manual includes hardware description and operation introduction of the equipment. For your and other people’s safety, please read the manual carefully. Pay attention Pay attention to the words after the signs below. Sign Description The words after this sign means there is great potential danger, which may cause major accident, damage or even death, if it is not followed.
1 Safety Warning The safety notes listed in this manual is to ensure correct use of the machine and to keep you and other people from being hurt. The design and manufacture of welding machine considers safety. Please refer to the safety warning listed in the manual to avoid accidents.
Page 5
Please follow the rules below to avoid heavy accidents. ˜ Never use the equipment to do other things but welding. ˜ Follow related regulations for the construction of the input-driven power source, choice of place, usage of high-pressure gas, storage, configuration, safe-keeping of workpiece after welding and disposal of waste, etc.
Page 6
Please follow the below notes to avoid fire and explode, etc. ˜ No combustible in welding area. ˜ Keep off combustible when welding. ˜ Keep hot workpiece after welding away from flammable gas. ˜ Do move away the combustible around when weld the dooryard, ground and wall,. ˜...
Page 7
Please follow the notes below to avoid gas cylinder toppling over or broken. ˜ Use the gas cylinder correctly. ˜ Use the equipped or recommended gaseous regulator. ˜ Read the manual of gaseous regulator carefully before using it, and pay attention to the safety notes.
Page 8
Electromagnetic interference needing attention. ˜ It may need extra preventive measures when the equipment is used in particular location. ˜ Before the installation, please estimate the potential electromagnetism problems of the environment as follows. a) Upper and lower parts of the welding equipments and other nearby power cable, control cable, signal cable and phone cable.
2 Product 2.1 General Welding machine is a rectifier adopting the most advanced inverter technology. The development of welding equipment benefits from the appearance of the inverter power supply theory and components. Inverter arc welding power source utilizes high-power component MOSFET to transfer 50/60Hz frequency up to 100KHz, then reduce the voltage and commutate, and output high-power voltage via PWM technology.
2.2 Technical Data Model 200M Parameters Power voltage(V) single phase AC220V15% Frequency(Hz) 50/60 Rated input current(A) Output current.(A) 10~200 Rated working volt.(V) No-load volt.(V) Duty cycle(%) Arcing way 0-5S Current descending time(S) LF:0.5-2 Pulse frequency(HZ) MF:50-200 After descending 3S Post time(S)...
3 Installation Equipment is equipped with power voltage compensation equipment. When power voltage fluctuates between ±15%, of rated voltage, it still can work normally. When use long cable, in order to prevent voltage form going down, bigger section cable is suggested.
Page 12
⚫ Installation diagram (TIG) Power Supply cylinder Earth clamp Work piece TIG torch ⚫ Installation diagram (MMA) Power Supply Earth clamp Work piece Electrode holder...

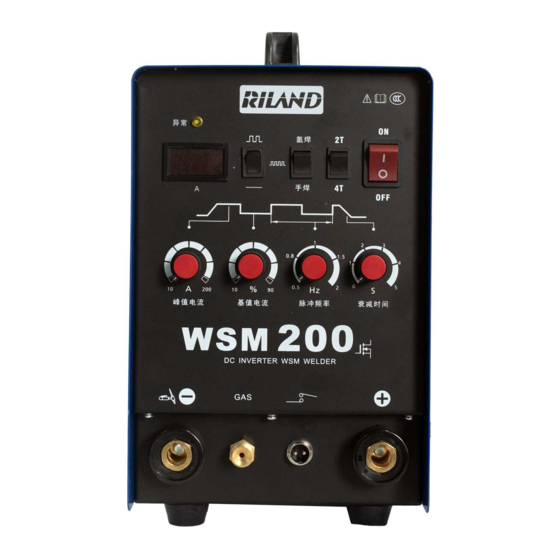

4 Operation 4.1 Front Panel Layout Current meter Abnormal indicator Pulse switch TIG/MMA switch 2T/4T switch Power switch Down slope adjustment Pulse frequency adjustment Base current adjustment Peak current adjustment Negative output terminal Gas connector Hand switch socket Positive output terminal Note.
4.2 Operation Instruction ⚫ TIG Welding Description Turn on the power switch, the digital current meter is working normal, and the fan starts running. Turn on the argon switch, and set the gas pressure to rated value. Press the switch of torch, electromagnetic valve is started. You will hear the sound of electricity- releasing HF sparkle and at the same time, argon gets out the torch.
4.3 Welding Environment and Safety ⚫ Environment The machine can perform in environment where conditions are dry with a dampness level of max 90%. Ambient temperature is between -10 to 40 degrees centigrade. Avoid welding in sunshine or drippings. Do not let water enter the gas Avoid welding in dust area or the environment with corrosive gas.
4.4 Welding Problems and Resolution Fittings, welding materials, environment factor, supply powers maybe have something to do with welding. User must try to improve welding environment. ⚫ Black welding spot. Welding spot is not prevented from oxidizing .User may check as following: Make sure the valve of argon cylinder is opened and its pressure is enough.
5 Daily Maintenance and Checking ⚫ Daily maintenance Remove dust regularly with dry compressed air. If the welding machine is used in surroundings with heavy smoke and polluted air, it is necessary to remove dust at least one time one month. The pressure of compressed air shall fall to required level to prevent damage to small components in the machine.
6 Trouble Shooting and Fault Finding Faults symptom Solutions ➢ Power switch is damaged. Power indicator is ➢ not lit, fan does not Make sure the electric wire net connecting to input cable is working work and no welding alright output ➢...
Page 19
➢ Cable of torch is broken. Abnormal indicator is not lit, sound of HF ➢ Grounding cable is broken or not connected to work piece. arc-striking can be ➢ heard, no welding There is relaxation between output terminal of positive electrode, gas- output electricity system output terminal and inner machine.
Page 20
Output current is not stabilizing or out of ➢ 1K potentiometer is damage ,replace it . potentiometer control ➢ All kinds of connectors are poor contact ,specially inserts etc. ,please check it . and sometime is high ,sometime is low . Sticking spatter is too ➢...
