Summary of Contents for Caen RFID Easy2log A927ZET

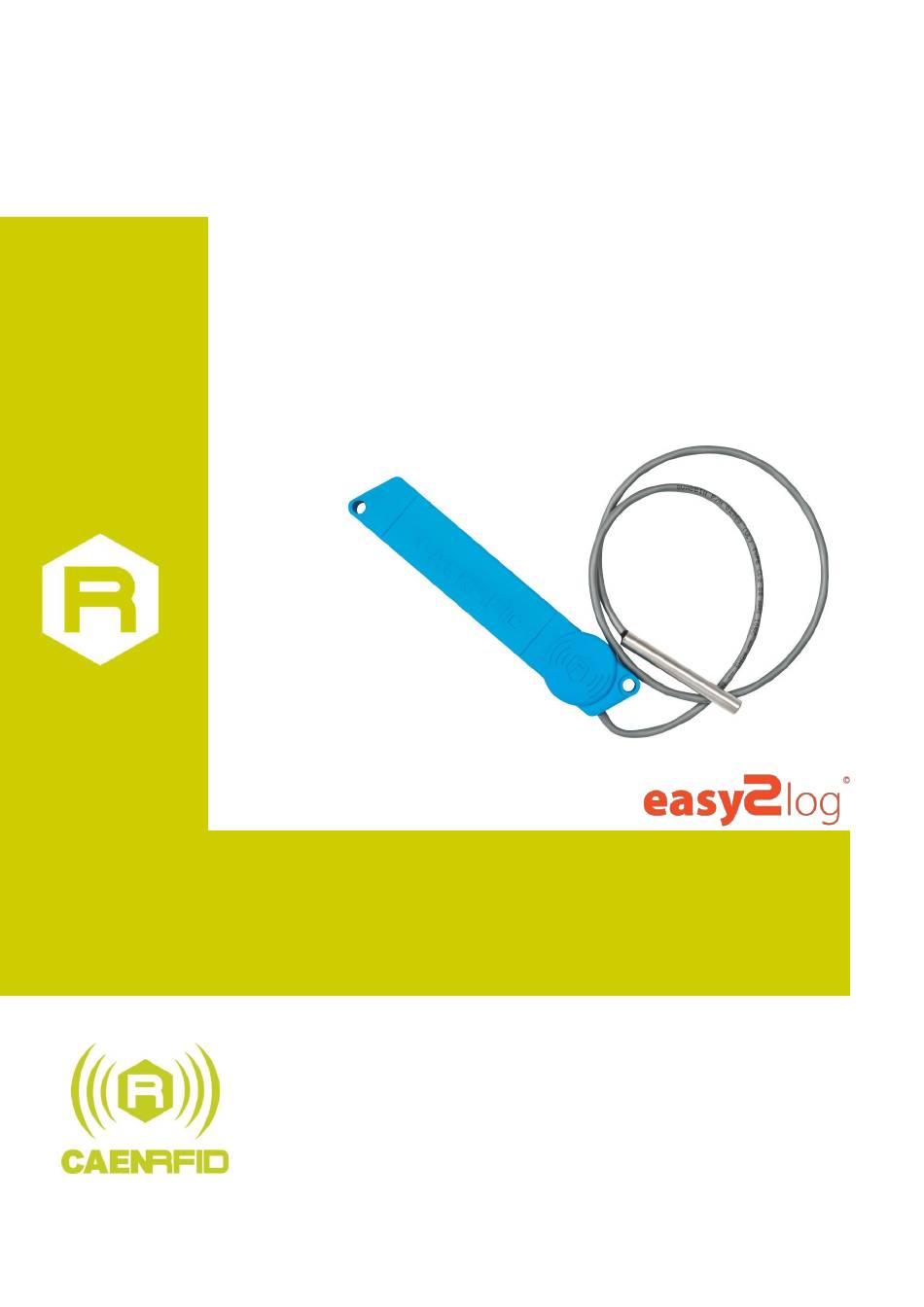

- Page 1 A927ZET UHF Semi-Passive Logger Tag with external probe Technical Information Manual Revision n. 02 27/03/2013...
-
Page 2: Scope Of Manual
Changes Pages 04 Mar 2011 Initial release. Removed information about A927ZH Humidity logger UHF semi- passive tag Added information on CAEN RFID Development Kit Changed A927ZET photo 1, 7 Modified § General Information paragraph 27 Mar 2013 Modified Ordering Options Modified §... - Page 3 The information contained herein has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies. CAEN RFID reserves the right to modify its products specifications without giving any notice; for up to date information please visit www.caenrfid.com.
-
Page 4: Table Of Contents
Index… Scope of Manual ...................................2 Change Document Record ................................2 Symbols, abbreviated terms and notation ...........................2 Reference Document ..................................2 Index… ......................................4 List of Figures ....................................5 List of Tables ....................................5 Introduction ..................................6 General Information ..................................7 Ordering Options ..................................8 Accessories ....................................8 Installation Notice ..................................9 A927ZET Functional Description ............................ -
Page 5: List Of Figures
Accuracy ..................................40 Theoretical read range ..............................40 A927ZET Regulatory Compliance ............................41 FCC Compliance ..................................42 CE Compliance ....................................42 EN 12830 Compliance.................................42 Enclosure degree of protection ..............................42 RoHS EU Directive ..................................42 CE Declaration of Conformity ..............................43 EN 12830 Declaration of Conformity ............................44 EN 12830 Compliance Matrix ............................45 List of Figures Fig. -
Page 6: Introduction
1 Introduction This Chapter gives general information about the A927ZET UHF Semi-Passive Logger Tag. It contains these topics: General Information Ordering Accessories Installation Notice A927ZET Technical Information Manual... -
Page 7: General Information
General Information © CAEN RFID easy2log A927ZET is a low cost, semi-passive UHF Logger tag that allows to monitor temperature sensitive products like perishable foods and pharmaceuticals, during transportation and storage. The combination of the high resolution sensor, the large memory size and the standard RFID interface permits to realize effective track and trace solutions for the cold-chain. -
Page 8: Ordering Options
Ordering Options Code Description A927ZET - Temperature logger with external probe UHF semi-passive WA927ZETAAAA tag (EPC C1G2) Std WA927ZAAAAAA A927Z - Temperature logger UHF semi-passive tag (EPC C1G2) Std WR4300PDKAAA R4300 ION Demo KIT WR4300PDKGPR R4300 GPRS ION KIT WA828BTXKITA A828BT - Bundle KIT ETSI Version WR1260IDKAAA WR1260I Slate KIT... -
Page 9: Installation Notice
Installation Notice The A927ZET can be easily fixed using the 2 screws supplied. All measurements are in mm. Fig. 1.3: A927ZET Technical drawings Fig. 1.4: A927ZET External probe A927ZET Technical Information Manual... -
Page 10: A927Zet Functional Description
2 A927ZET Functional Description This Chapter introduces the A927ZET UHF Semi-Passive Logger Tag. It contains these topics: Main Features Sampling operating Modes Storing operating Modes Battery measurement and behaviour A927ZET Technical Information Manual... -
Page 11: Main Features
Main Features EPC C1G2 (ISO18000-6C) Compatible Long range solution 3 years battery life Battery status monitor Temperature range: from -30°C to +70°C Excellent accuracy: ±0.1°C (typ) No calibration required Programmable sampling time ... -
Page 12: Reading Performances
Reading Performances 10m in air (2.5m on metal) @ 2W ERP Data Logging Download Time: 25 sec (8K samples) On board Temperature Sensor Temperature range: from -20°C to +70°C Resolution: 16 bit Accuracy from -30°C to +70°C: Typ: ±0.1°C Max: ±0.75°C ... -
Page 13: Sampling Operating Modes
Sampling operating Modes A927ZET supports three programmable Sampling Operating modes: Sampling Off. Tag is working as normal ISO180006C tag. Previous logging results are readable from memory (Control register bit L=0). Continuous mode. Tag is continuously logging the measured value with interval defined by Sample Time register. -
Page 14: Storing Operating Modes
Storing operating Modes In Continuous and Event mode, the Tag continuously measures the sensor value. When the sensor value must be stored, A927ZET can be programmed to work in four different operating modes: Sensor Data only. Tag stores only the sensor data (Control register bit D = 1, bit TL =0). ... -
Page 15: Battery Measurement And Behaviour
Battery measurement and behaviour There are several options to verify the battery status. To verify if the battery level is low, just read the failure code in the control register: the code 7 identifies a Battery Low Status (<2 V). To verify the level of the battery, you have to enable the battery logging, and then to read the last sample value. -
Page 16: A927Zet Memory Description
3 A927ZET Memory Description This Chapter describes the memory map of A927ZET UHF Semi-Passive Logger Tag. It contains these topics: Address space Reserved Memory EPC Memory TID Memory User Memory Registers use example A927ZET Technical Information Manual... -
Page 17: Address Space
Address space The general memory layout of the A927ZET tag agrees to the EPCglobal C1G2 specification (see § [RD1]). The tag memory is logically subdivided into four distinct banks. Each bank is organized into 16-bit words. Name Bank Size User Memory 17522 byte TID (Tag-identification Data) 208 bit... -
Page 18: Tab. 3.2: Memory Bank Configuration
22390 2239F User area 213A0 213AF 21390 2139F Battery data logging area 213A0 213AF 20390 2039F Battery sensor configuration 20300 2030F 202F0 202FF Battery sensor A927ZET Serial Number characteristics 202A0 202AF 20290 2029F Temperature data Bank 11 User A927ZET Serial Number logging area (ext) 102A0 102AF... -
Page 19: Reserved Memory
Reserved Memory This bank contains the 32 bit Kill password and the 32 bit Access password according to the EPC Class 1 Gen 2 standard plus an User memory area of 432 bit. Initial Data 01F0 01FF all 0000 User area Reserved 0000 Access Passwd [15:00]... -
Page 20: Epc Tag Encoding
EPC TAG Encoding EPC TAG Encoding [95:00] Bank:01b Word addr: 2h 88 87 Year [15:00] 72 71 Mount [7:0] Day [7:0] 56 55 A927ZET Serial Number [15:00] 40 39 0000h 0000h TID Memory TID Memory bank contains: Company ID. ... -
Page 21: Sam Pointer
SAM Pointer SAM pointer allows interrogator to find A927ZET Sensor Address Map. Sensor Address Map contains the information about the number of available sensors and memory area definitions for each sensor. Each sensor has its own SAM entry in Sensor Address Map. This link chain is clarified in the Tab. 3.6. SAM Pointer [31:00] Bank:10b Word addr: 2h... -
Page 22: A927Zet Firmware Release (Fw)
A927ZET Firmware release (FW) The Firmware release register contains the revision number of the A927ZET firmware. Firmware revisions are denoted using a standard duplet of integers: Major and Minor. A927ZET Firmware release (FW) [15:00] Bank:10b Word addr: 4h R only Major [7:0] Minor [7:0] A927ZET Serial Number... -
Page 23: User Memory
User Memory USER Memory bank contains: NoS: Number of available on board sensors. SAM entries for each sensor. Each SAM entry contains the pointer to the beginning of the allocated memory and memory range for that specific sensor. ... -
Page 24: Tab. 3.7: Bank 11 - User Memory
22390 2239F User area 213A0 213AF 21390 2139F Battery data logging area 203A0 203AF 20390 Last Samples Address 2039F 20380 Last Samples Value 2038F 20370 High Threshold 2037F 20360 Low Threshold 2036F 20350 Sample Time 2035F 20340 Samples 2034F 20330 Start Time [15:00] 2033F 20320... -
Page 25: A927Zet Nos Description
A927ZET NoS description NoS – Number of available sensors [15:00] User Bank:11b Word addr: 0h R only Number of Sensors [15:00] Number of sensors [15:00] value:2 Temperature, Battery monitor A927ZET SAM Entry description Number of available sensors (NoS) is stored first followed by SAM entries for each sensor. NoS is stored as 16bit unsigned integer value. -
Page 26: A927Zet Sensor Characteristics Description
A927ZET Sensor Characteristics Description This section contains the description of sensors parameters: sensor type (code compliant to IEEE 1451) sensor data resolution sensor accuracy offset and measurement ranges Sensor Attribute/Type Temperature Sensor Attribute/Type (int) [15:00] User Bank:11b Word addr: Ah R only... -
Page 27: Precision/Data Type
Precision/Data Type Precision represents the sensor accuracy expressed in tenth of the sensor base unit: Temperature: 0.1 °C Battery: 0.1 V Temperature Precision/Data Type (int) [15:00] User Bank:11b Word addr: Ch R only Temperature Precision/Data Type (ext) [15:00] User Bank:11b Word addr: 101Ch... -
Page 28: High Limit
High Limit High Limit is the maximum measurable value of applied parameter. It is expressed in twos complement format. Temperature High Limit (int) [15:00] User Bank:11b Word addr: Fh R only Temperature High Limit (ext) [15:00] User Bank:11b Word addr: 101Fh R only Battery High Limit [15:00] User... -
Page 29: A927Zet Sensor Configuration Description
A927ZET Sensor Configuration Description For each sensor this section contains: Status Control Start Time Samples Sample Time High Threshold / Low Threshold Last Sample Value Last Sample Address Status Status register is read-only register containing the status flags (memory full, upper limit violation and lower limit violation flags) and Hardware status/failure code. -
Page 30: Control
Temperature memory size (ext): 4096 words Battery memory size: 256 words Control Control register is the main configuration register. The behaviour of the sensor is mainly dependent on this register. Also resetting of sensor is done through one specific bit of this register. Temperature Control Register (int) [15:00] User Bank:11b... -
Page 31: Start Time
Start Time Start Time register is the starting time of current log. Format of this register is Unix time-stamp format. Register can be written only when logging is not ongoing. Content of the register is totally dependent on the user since tag is not required to validate the value. -
Page 32: Sample Time
Sample Time Sample Time register is used to define the Sampling Time of the sensor expressed in seconds. At the same time it is the resolution of logging feature. The Number should be a multiple of 8 (minimum sampling time). The maximum sampling time is 65535 sec ( ≈... -
Page 33: Last Sampled Value
Fig. 3.1: A927ZET High/Low Threshold monitoring Last Sampled Value Last Sampled Value is the last sensor value measured (the logging decision is done after measurement and depends on the Tag storing mode). See § Tab. 3.8 and Tab. 3.9 (pag. 34) for more information about battery and temperature data format. -
Page 34: A927Zet Data Logging Area Description
A927ZET Data Logging area description A data record is composed by a time-stamp and/or sensor value. Both are not required so one record can also be either one of these alone. Data record composition is defined by Control register. Time-stamped Data is a 32 bit data expressed in Unix time-stamp format. It is the calculated real time of logged data record. -
Page 35: Registers Use Example
Registers use example The following procedure could be repeated for the internal and external temperature sensor. Suppose that the user wants to monitor the temperature trend for frozen food as follows: High Sampling Sampling Limit Store Store Threshold Threshold operating Interval monitoring Samples... -
Page 36: A927Zet Specification
4 A927ZET Specification This Chapter contains these topics: Technical Specifications Table Air Link Protocol Characteristic Typical Characteristics A927ZET Technical Information Manual... -
Page 37: Technical Specifications Table
Technical Specifications Table Tag Type Semipassive UHF EPC Class1 Gen2/ISO RFID Interface 18000-6C compatible Reserved memory size 512 bit EPC memory size 512 bit TID memory size 208 bit Reserved memory size 512 bit User Memory size 17522 byte Access control Memory retention 100 years Memory endurance... -
Page 38: Air Link Protocol Characteristic
Air Link Protocol Characteristic Physical Layer The A927ZET tag in general satisfies the EPCglobal C1G2 physical layer protocol specification (see § [RD1]) with exception of the following points: Reader to tag data rates: interrogator shall communicate using Tari value of 25 µsec only. Tari values of 12.5 µsec and 6.25 µsec are not supported. -
Page 39: Typical Characteristics
Typical Characteristics A927ZET Battery Life The A927ZET battery life depends on the working temperature range and on the sampling interval as follows: Fig. 4.1: A927ZET Battery life (typ.) Response Time In the following figure, the A927ZET temperature response times is shown. T90 value is the time (measured in seconds) needed by the tag to reach 90% of the change in temperature. -
Page 40: Theoretical Read Range
Accuracy The typical tag accuracy over the operating temperature range (from -30°C to +70°C) has an accuracy error curve. At high temperatures the magnitude of error slightly increases. The tag accuracy is of ± 0.1°C (typical) and ± 0.75°C (max). Fig. -
Page 41: A927Zet Regulatory Compliance
5 A927ZET Regulatory Compliance This Chapter gives information on the A927ZET UHF Semi-Passive Logger Tag Regulatory Compliance. It contains these topics: FCC Compliance CE Compliance EN 12830 Compliance Enclosure degree of protection RoHS EU Directive ... -
Page 42: Fcc Compliance
FCC Compliance Not Required for UHF Semipassive Tag. CE Compliance Reference standard: CEI EN 60950-1:2004 CEI EN 55022:2009 CEI EN 61000-6-3:2007 CEI EN 61000-6-1:2007 ETSI EN 301 489-1 V. 1.8.1:2008 ETSI EN 301 489-3 V. 1.4.1:2002 ETSI EN 302 208-1 V. 1.2.1:2008 CEI EN 50364:2002 Reference document: Test report n. -
Page 43: Ce Declaration Of Conformity
CE Declaration of Conformity CAEN RFID Srl Via Vetraia, 11 55049 Viareggio (LU) Italy Tel.: +39.0584.388.398 Fax: +39.0584.388.959 Mail: info@caenrfid.com Web site: www.caenrfid.com herewith declare under our own responsibility that the product: Code: WA927ZETAAAA Description: A927ZET - UHF Semi-Passive Logger Tag with external probe... -
Page 44: En 12830 Declaration Of Conformity
EN 12830 Declaration of Conformity CAEN RFID Srl Via Vetraia, 11 55049 Viareggio (LU) Italy Tel.: +39.0584.388.398 Fax: +39.0584.388.959 Mail: info@caenrfid.com Web site: www.caenrfid.com herewith declare under our own responsibility that the product: Code: WA927ZETAAAA Description: A927ZET - UHF Semi-Passive Logger Tag with external probe... -
Page 45: En 12830 Compliance Matrix
GSD s.r.l. – CE Test Report - A927Z UHF Semi-Passive Logger Tag - Ref. 29346A CAEN RFID s.r.l. internal test report: A927Z EN 12830 Test Report – 01/03/2010 GSD s.r.l. – Vibration Test Report – A927Z UHF Semi-Passive Logger Tag - Ref. 29340...
