Summary of Contents for KickAss KAODCPPROV4

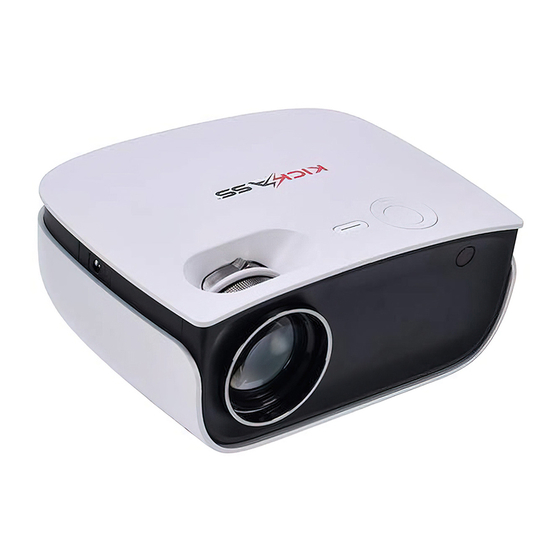

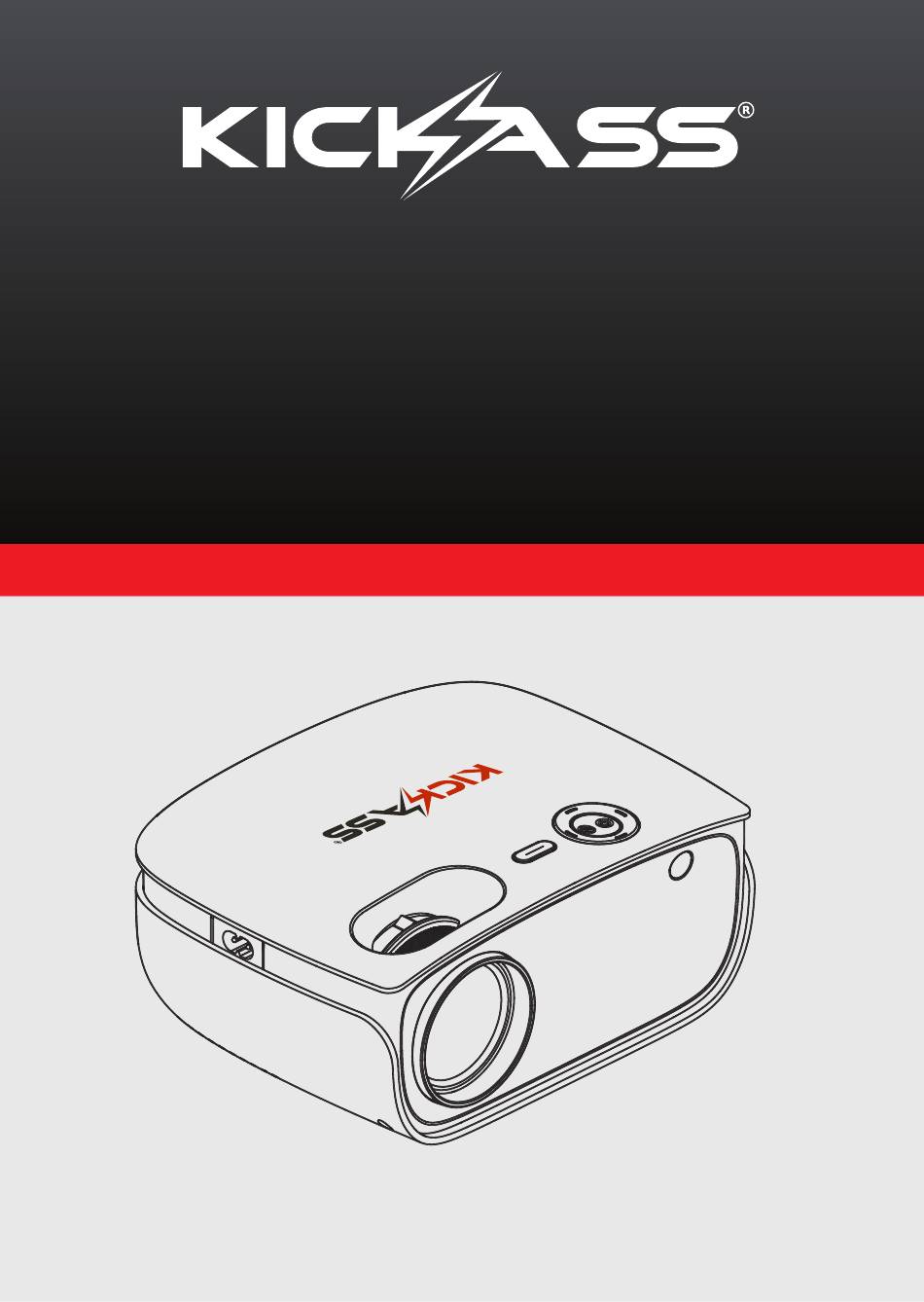

- Page 1 PORTABLE CINEMA PROJECTOR USER MANUAL KAODCPPROV4 VER 5.2...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ..............IMPORTANT SAFEGUARDS IMPORTANT SAFEGUARDS ................ACCESSORIES LIST ACCESSORIES LIST ..............PROJECTOR OVERVIEW PROJECTOR OVERVIEW ................SPECIFICATIONS SPECIFICATIONS ................REMOTE CONTROL REMOTE CONTROL ..........SWITCHING MACHINE OPERATION SWITCHING MACHINE OPERATION ........... FOCUS/KEYSTONE CORRECTION FOCUS/KEYSTONE CORRECTION ............... STANDARD SETTINGS STANDARD SETTINGS .............. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS 1. Please read the manual carefully before operating projector. To ensure stable power supply, please use standard power cord. 2. Please use the power supply and cable indicated on the rating label. The projector should be kept away from cloths, sofas and anything that may block the ventilation scoop. -
Page 4: Projector Overview
PROJECTOR OVERVIEW 1. Lens 7. Cooling Window 2. IR for Remote Control 8. Headphone Jack 3. Speaker 9. AV Port 4. IR for Remote Control 10. USB Port 5. Air Intake 11. USB Port / Wired SyncScreen Port 6. Power Input 12. - Page 5 PROJECTOR OVERVIEW 1. Arrow Keys 7. Keystone Correction 2. Return 8.Bottom Label (Tear off the bottom sticker, you can 3. Enter remove the bottom dust cover to clean 4. Power Key up the dust) 5. Power Indicator: 9.Machine Foot Pad Standby: red 10.Hole for Stand(1/4 inch) Power On: blue...
-
Page 6: Specifications
SPECIFICATIONS Model Mini projector Lamp Image System Language English, 23 languages Resolution 1280 x 720, support 1080P Input Voltage 12V 4A Weight 1 KG Working Temp 0~35°C Input Port HDMI / USB / AV Output Port Headphone Aspect Ratio 16:9 / 4:3 Size 218 x 174 x 96mm Operation Mode... -
Page 7: Remote Control
REMOTE CONTROL 1. Power 2. Aspect Ratio 3. Arrow Keys 4. Home 5. Menu 6. Volume Down 7. Menu 8. Screen Flip 9. Source 10. Enter 11. Return 12. Volume Up 13. Mute... -
Page 8: Switching Machine Operation
SWITCHING MACHINE OPERATION Power On: Step 1: Press the power button on the body or the power button on the remote control, the indicator light will turn blue and steady. Step 2: After 2 seconds, the projector starts to start, the image appears on the screen, and the unit enters the normal working state. -
Page 9: Focus/Keystone Correction
FOCUS / KEYSTONE CORRECTION Image Focusing Place the projector lens perpendicularly to the projection screen or curtain wall, and adjust the focus dial until the image is clear, that means the image focusing is finished. During the focusing process, you can play the programs or pick up the product menu images to match the focusing adjustment. -
Page 10: Standard Settings
STANDARD SETTINGS Refer to the data in the table below to place the projector away from the projection screen according to the preset graphic size. When installing, place the projector on a solid, stable countertop . The airframe should be well ventilated. -
Page 11: Source Settings
Source Settings In the main interface (or press the signal source key on the remote control), select the signal source you want to connect. Signal Source: HDMI / AV. -
Page 12: Bluetooth Connection
Bluetooth Connection Step 1: On the main page, select "Settings", and then select OPTION after entering the interface Step 2: Select BT Setting and press the OK key to enter the next interface. Step 3: Turn on BT Mode,search for Bluetooth, and select the Bluetooth connection that needs to be paired. -
Page 13: Screen Mirroring
SCREEN MIRRORING Step 1: Select Screen Mirroring in the main interface. Step 2: Press the OK key to enter the interface. Step 3: After entering into the interface, select the function you need. -
Page 14: Android Screen
Android Screen Step 1: Select Android Screen in the Syncscreen interface. Step 2: Turn on the wifi of mobile phone, choose the screen mirroring function of the phone, search for the device name of the projector and click connect. Mirroring will begin in a few seconds. Note: Different mobile phones have different positions and names for the screen mirroing function, please refer to the manual of the phone. -
Page 15: Ios Screen
iOS Screen iOS Screen has three connection methods: Method 1: Wired Connection for improved quality Step 1: Select iOS screen from syncscreen. Step 2: Enter iOS screen, connect your iPhone with the projector via Wired SyncScreen port with USB cable. Your iPhone will receive a trust prompt, confirm "trust", then mirroring will begin. - Page 16 iOS Screen Method 3: WiFi Connection Required Step 1: Connect your projector to the Wi-Fi from a router, you will find the name of the router and a ”√” on iOS screen. Step 2: Connect your iPhone to the same Wi-Fi with the projector. Step 3: Turn on Airplay on your iPhone, select the device name of the projector.
-
Page 17: Syncscreen Setting
SyncScreen Setting Step 1: Select SyncScreen Setting from syncscreen. Step 2: Choose the setting you want. The settings include three functions: WIFI / System Upgrade / More Setting. WIFI: Search and Cormect WiFi. System Upgrade: OTA Upgrade / USB Upgrade. More Setting: System Reset / Mirror Mode / Airplay Mode / Language. -
Page 18: Wifi Connection
WIFI CONNECTION Step 1: Select WIFI and press the OK key to enter the next interface. Step 2: Select the WiFi that you want to connect from the Wi-Fi list. Step 3: Enter the correct password through the virtual keyboard. Select the WiFi that has been connected, press the OK key, and three options will pop up: Disconnect: Disconnect the Wi-Fi connection this time, but it will be... -
Page 19: More Settings
MORE SETTINGS Step 1: Select More Setting, press OK key to enter the interface. Step 2: Choose the setting you want. System Reset: Click to return back interface, yes is to confirm the restoration, No is to exit the selection. Mirror Mode: Smooth /Standard / Quick. 1) Smooth Mode: Requires higher network to optimize the effect of playing video, and caches the video to ensure smooth pictures during playback.
