Summary of Contents for BZB Gear BG-UHD-42MG2

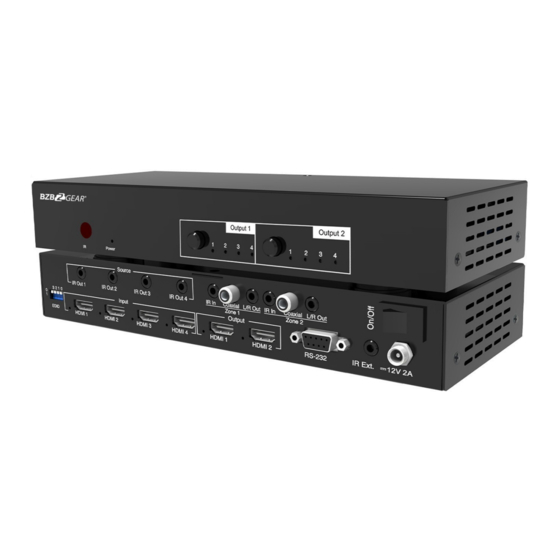

- Page 1 BG-UHD-42MG2 4K/18G 4x2 HDMI Matrix w/ Audio Breakout User Manual...
- Page 2 BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Front Panel Rear Panel Remote Control RS-232 Pin Assignment Application Diagram Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-UHD-42MG2 is a HDMI 2.0 matrix switcher which is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to either of the two connected HDMI displays. This matrix supports all the latest features HDMI 2.0, 4K UHD resolutions (4K@60Hz YUV 4:4:4), HDR (High Dynamic Range), Deep Color, and High-Definition audio. -
Page 6: Specifications
BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL Specifications Data Rate 6 Gbps per color Bandwidth Switcher 4x HDMI Type A, 19-pin, female Video Input Connectors 2x HDMI Type A, 19-pin, female Video Output Connectors 2x Coaxial RCA(SPDIF), 2x 3.5mm Stereo mini Audio Output Connectors... -
Page 7: Rear Panel
BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL Rear Panel Name Function Description IR Out port 3.5mm mono phone-jack, connect to IR emitter cable included IR In port 3.5mm stereo phone-jack, connect to IR receiver cable included Coaxial output RCA (S/PDIF) audio extracted from HDMI output1 L/R output 3.5mm stereo phone-jack, audio extracted from HDMI output1 (PCM) -
Page 8: Remote Control
BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL Remote Control Power Button – Press to enter standby mode ● Output 1 button 1 to 4 – Press to select input from 1 to 4 ● Output 2 button 1 to 4 – Press to select input from 1 to 4 ●... -
Page 9: Application Diagram
BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL Application Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 10: Tech Support
BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 11: Mission Statement
BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 12: Copyright
BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
