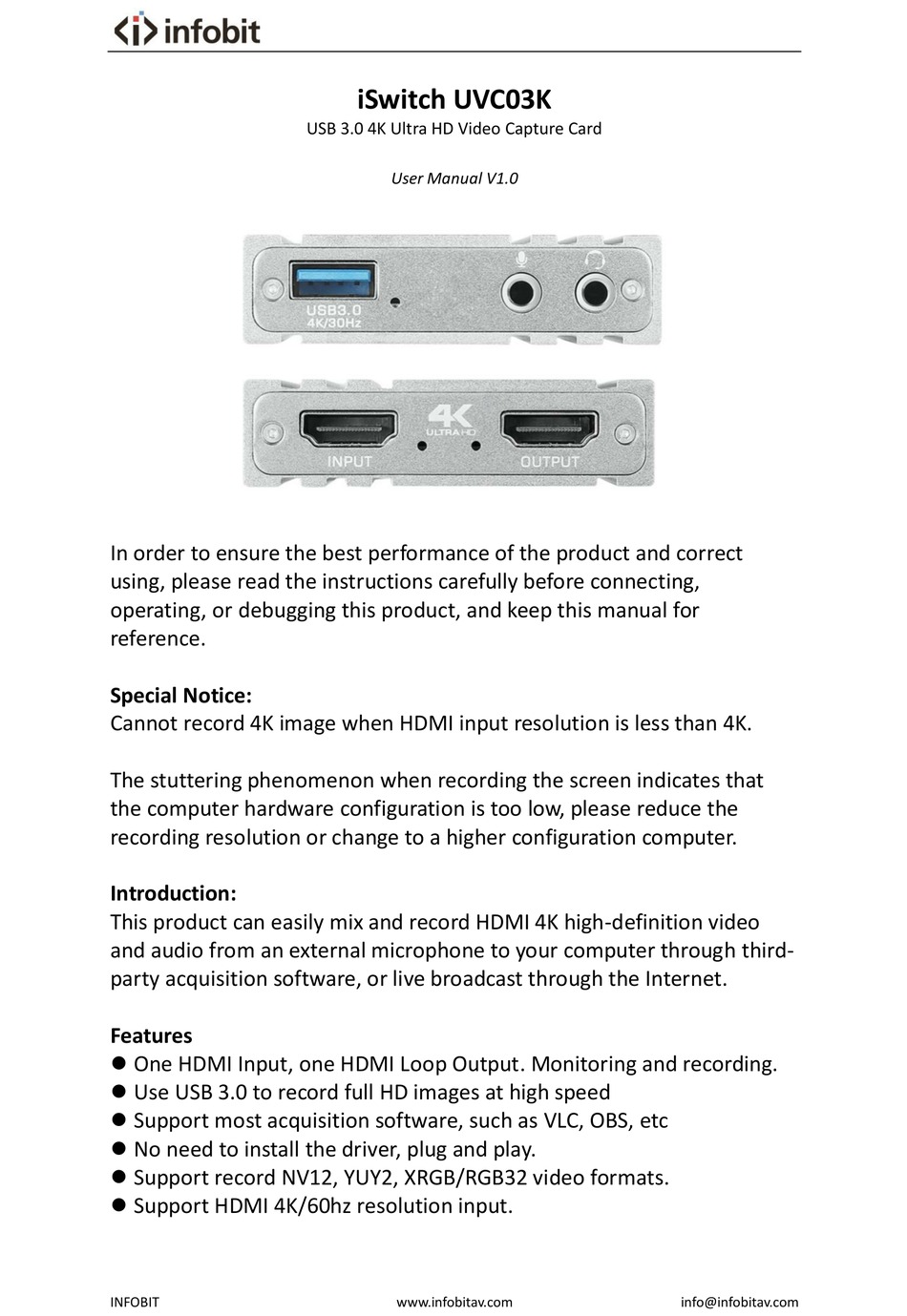

iSwitch UVC03K
USB 3.0 4K Ultra HD Video Capture Card
User Manual V1.0
In order to ensure the best performance of the product and correct
using, please read the instructions carefully before connecting,
operating, or debugging this product, and keep this manual for
reference.
Special Notice:
Cannot record 4K image when HDMI input resolution is less than 4K.
The stuttering phenomenon when recording the screen indicates that
the computer hardware configuration is too low, please reduce the
recording resolution or change to a higher configuration computer.
Introduction:
This product can easily mix and record HDMI 4K high-definition video
and audio from an external microphone to your computer through third-
party acquisition software, or live broadcast through the Internet.
Features
⚫ One HDMI Input, one HDMI Loop Output. Monitoring and recording.
⚫ Use USB 3.0 to record full HD images at high speed
⚫ Support most acquisition software, such as VLC, OBS, etc
⚫ No need to install the driver, plug and play.
⚫ Support record NV12, YUY2, XRGB/RGB32 video formats.
⚫ Support HDMI 4K/60hz resolution input.
INFOBIT
www.infobitav.com
info@infobitav.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for infobit iSwitch UVC03K
Summary of Contents for infobit iSwitch UVC03K
- Page 1 UVC03K USB 3.0 4K Ultra HD Video Capture Card User Manual V1.0 In order to ensure the best performance of the product and correct using, please read the instructions carefully before connecting, operating, or debugging this product, and keep this manual for reference.
- Page 2 ⚫ Support Capturing 4K/30Hz resolution. ⚫ High-quality aluminum alloy material ⚫ Support 3.5mm/TRS microphone input ⚫ Support 3.5mm/TRS headphone output Support Resolution: Support Operating System: - 1 -...
- Page 3 Computer hardware configuration requirements: Support third-party software: OBS Studio (Windows, OS X) Windows media Encoder (Windows) Adobe Flash Media Live-Encoder (Windows, OS X) Real Producer Plus (Windows) VLC (Windows, OS X Linux) Quick Time Broadcaster (OS X) ...
- Page 4 ⚫ Working humidity range: 90% RH No condensation ⚫ Product size: 102.5x63.2x16.6mm ⚫ Material: Aluminum alloy ⚫ Color: Space Gray ⚫ Net Weight: 131g Interface Introductions: ① USB3.0 TYPE-A port, connect to USB3.0 port of Computer. ② Power indicator light. ③...
- Page 5 1. Connect input of capture card to HDMI signal via HDMI cable, such as Computer, Game Console, DVD. 2. Connect Output port of capture card to display devices, such as TV, Monitor, Projector, etc. 3. Use the USB3.0 cable to connect the USB3.0 interface of the capture card to the USB3.0 interface of the computer to complete the preliminary connection.
- Page 6 A new window appears, select "4K Video Capture" in the "Device". Set it to "Custom" in the "Resolution/Frame Rate Type" option. The resolution is 3840X2160. Select 30 in the "FPS" option. Select NV12 in the "Video Format" Note: When a computer that does not meet the configuration requirements, there will be video freezes, and the recording resolution needs to be reduced.
- Page 7 After the above settings are completed, you can start recording and streaming your HD video. 6. After recording, you can click "Output" in the "Settings" window to view the save path of the recorded video. If you want to use it with other third-party software (such as VLC, Media encoder, Protplayer...), you only need to select the capture device of the software as "4K Video Capture".
- Page 8 Click “ ” button to record after finished. Packing Contents 4K USB Capture ……..………..………………………………………………………...……1pcs USB3.0 Data Cable…….……………..………………………………………………….…1pcs User Manual..………………..…………………………………………………….…1pcs NOTE ⚫ Does not use HUB or USB extend cable. ⚫ Low computer configuration will cause irregular flickering or black screen in the recording screen. ⚫...
